Front Door Trim: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not apply excessive force to the clip. Other wise the clip may be broken.
  1. Disconnect the ground cable from battery.
  2. Pull the inner remote cover toward you to remove upper hook. Pull down it to remove the lower hook. Remove the inner remote cover.
    Fig 1: Removing Inner Remote Cover
    G03511441Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the screw.
  4. Remove the power window switch assembly and disconnect the harness connector.

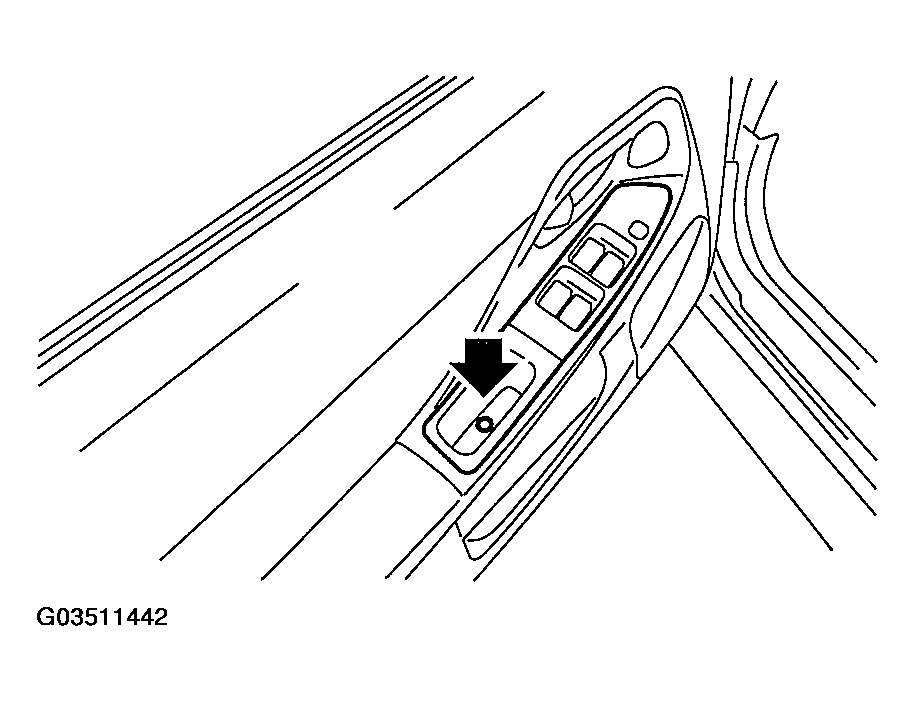

    Fig 2: Removing Power Window Switch Assembly & Disconnecting Harness Connector
    G03511442Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the screw.
  6. Remove the clips (A) of trim panel using clip remover to remove the trim panel.

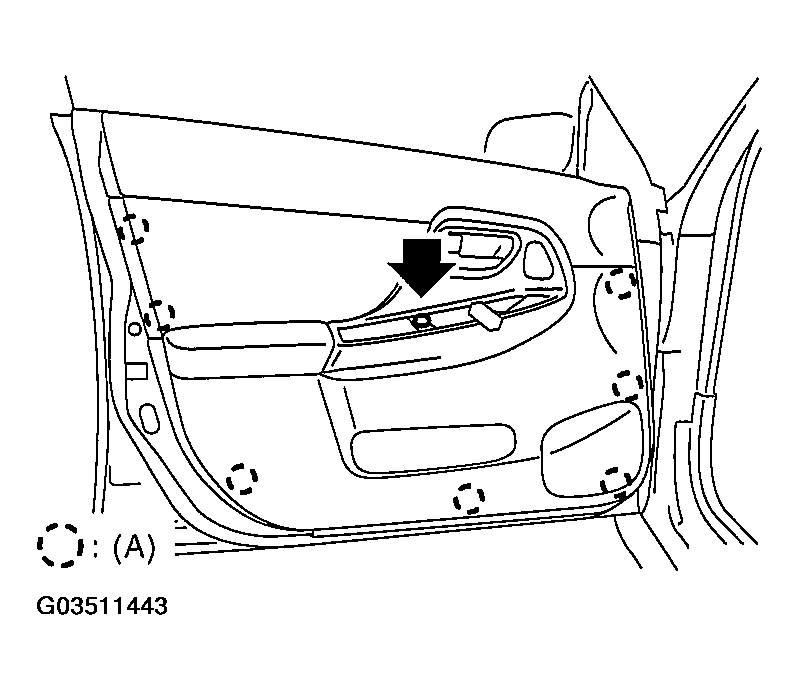

    Fig 3: Removing Clips Of Trim Panel
    G03511443Courtesy of SUBARU OF AMERICA, INC.
