Hood Grille: Installation

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Replace the four clips with new ones.

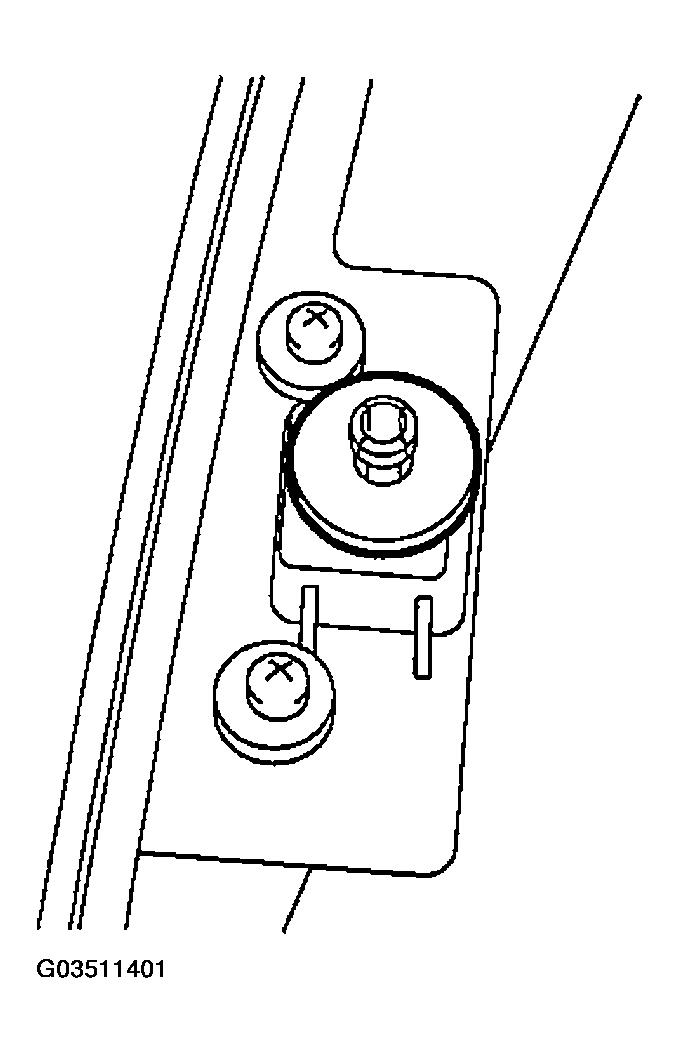

Fig 1: Identifying Clip
Courtesy of SUBARU OF AMERICA, INC.
Engage the four clips of hood grille to front hood panel.
CAUTION: Make sure that the anchor portion of each clip is firmly engaged.

Fig 2: Locating Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the five nuts.
Tightening torque: 4.5 N.m (0.46 kgf-m, 3.32 ft-lb)

Fig 3: Locating Bolts
Courtesy of SUBARU OF AMERICA, INC.
Catch the two hooks (A) of hood duct to hood holes.

Fig 4: Identifying Hood Duct Hole
Courtesy of SUBARU OF AMERICA, INC.
Install the hood duct with clip (A) and seven bolts.

Fig 5: Locating Clip & Seven Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the hood insulator with new clips.
