Roof Rail: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the roof trim. Refer to REMOVAL  , Roof Trim.
  2. Remove the four mounting nuts, and then detach the roof rail carefully.

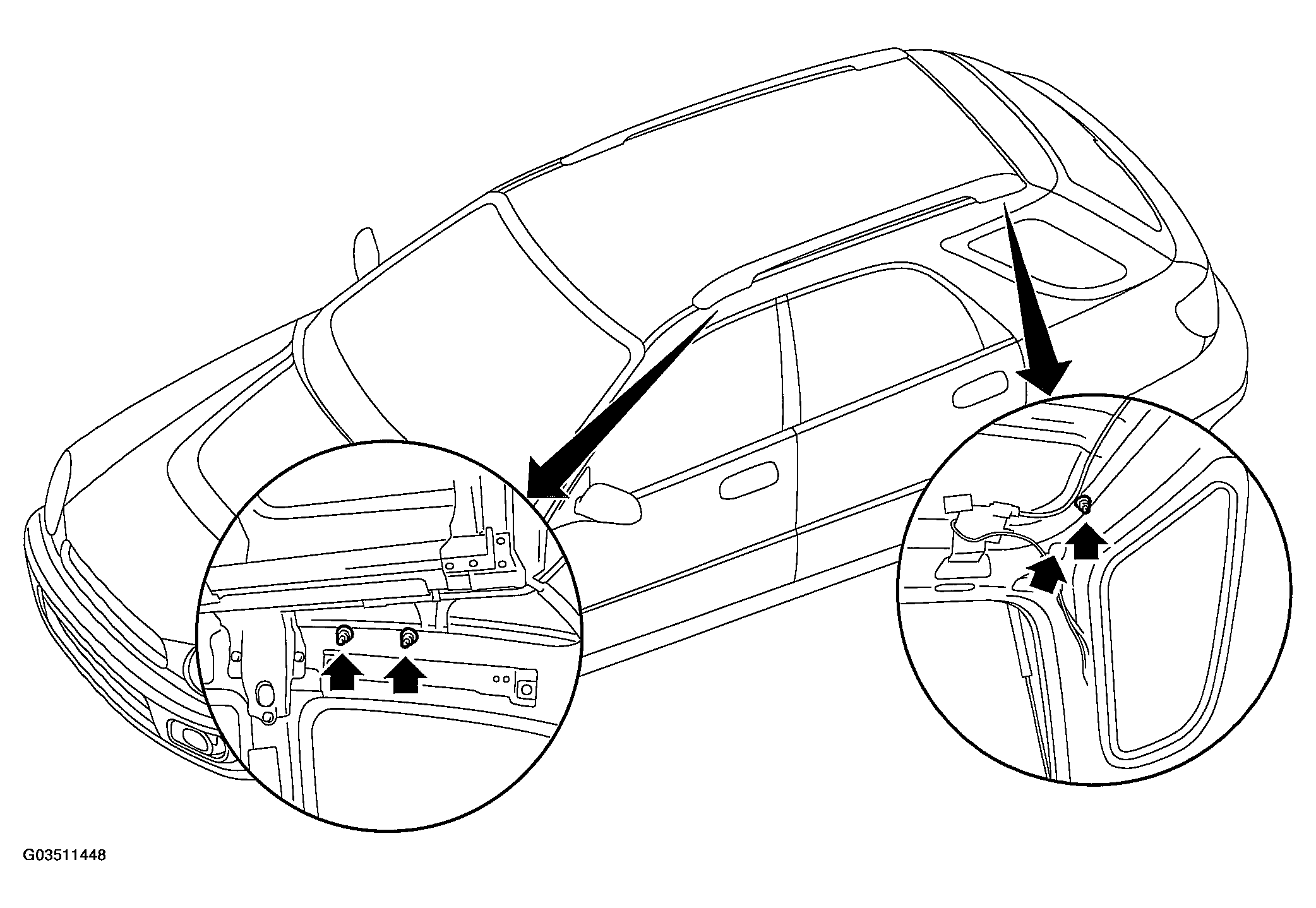

    Fig 1: Locating Roof Rail Mounting Nuts
    G03511448Courtesy of SUBARU OF AMERICA, INC.
