Combination Switch/CLOCKSPRING: Installation
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

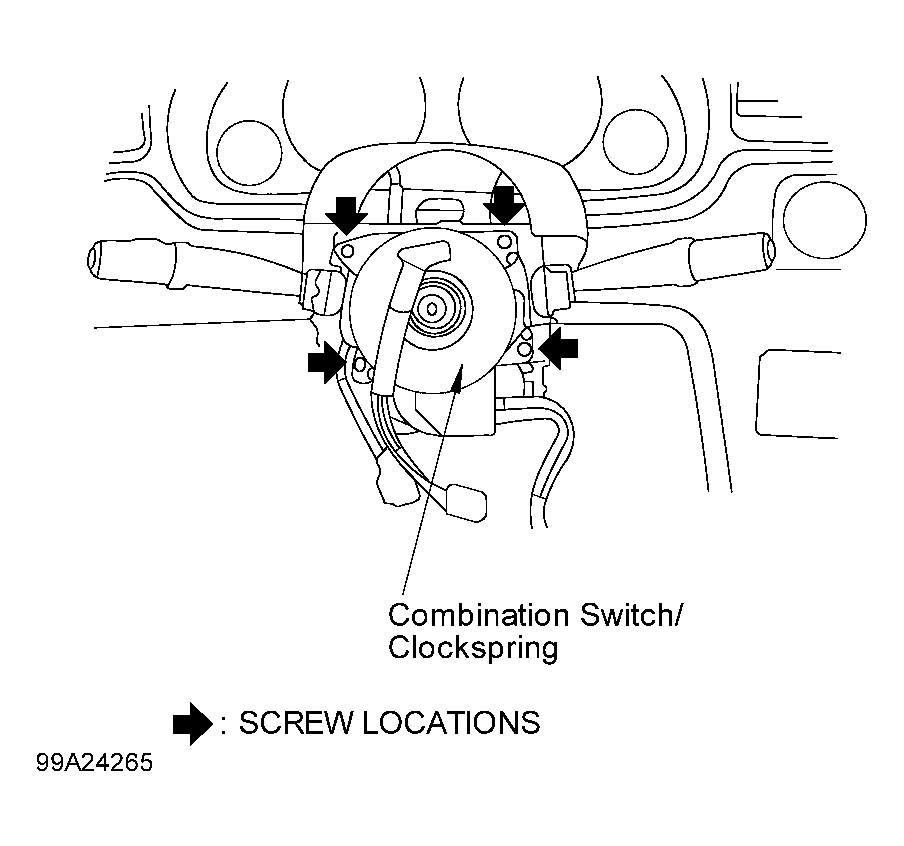

Ensure front wheels are positioned straight ahead. Install combination switch/clockspring assembly onto steering column. Center clockspring. See CLOCKSPRING under ADJUSTMENTS. When installing steering wheel, insert connector pins on clockspring into holes on steering wheel. To complete installation, reverse removal procedure. Tighten steering wheel nut and combination switch/clockspring screws to specification. See TORQUE SPECIFICATIONS . After installation is complete, reactivate air bag system.
