3.0 L Model

Disconnect pressure hose from oil pump. Disconnect return hose from oil pump.

CAUTION:
  • Do not allow fluid from the hose end to come into contact with pulley belt.
  • To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

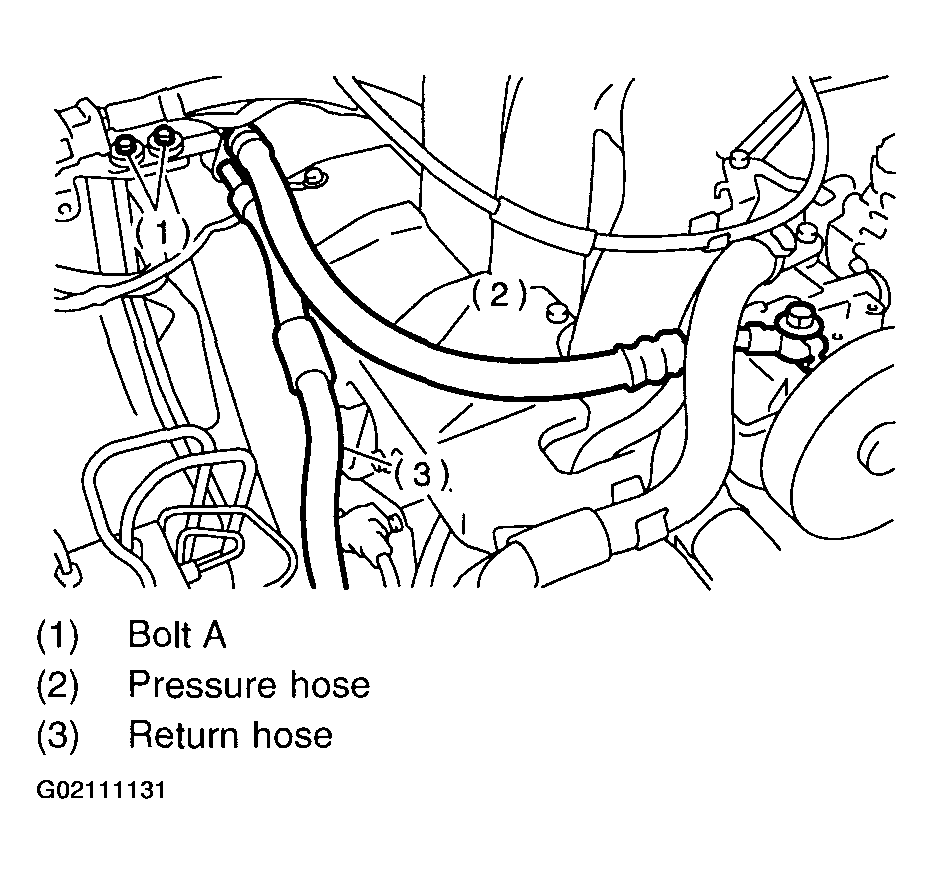

Fig 1: Disconnecting Pressure & Return Hoses From Oil Pump
G02111131
