Special Tools
Special Tools

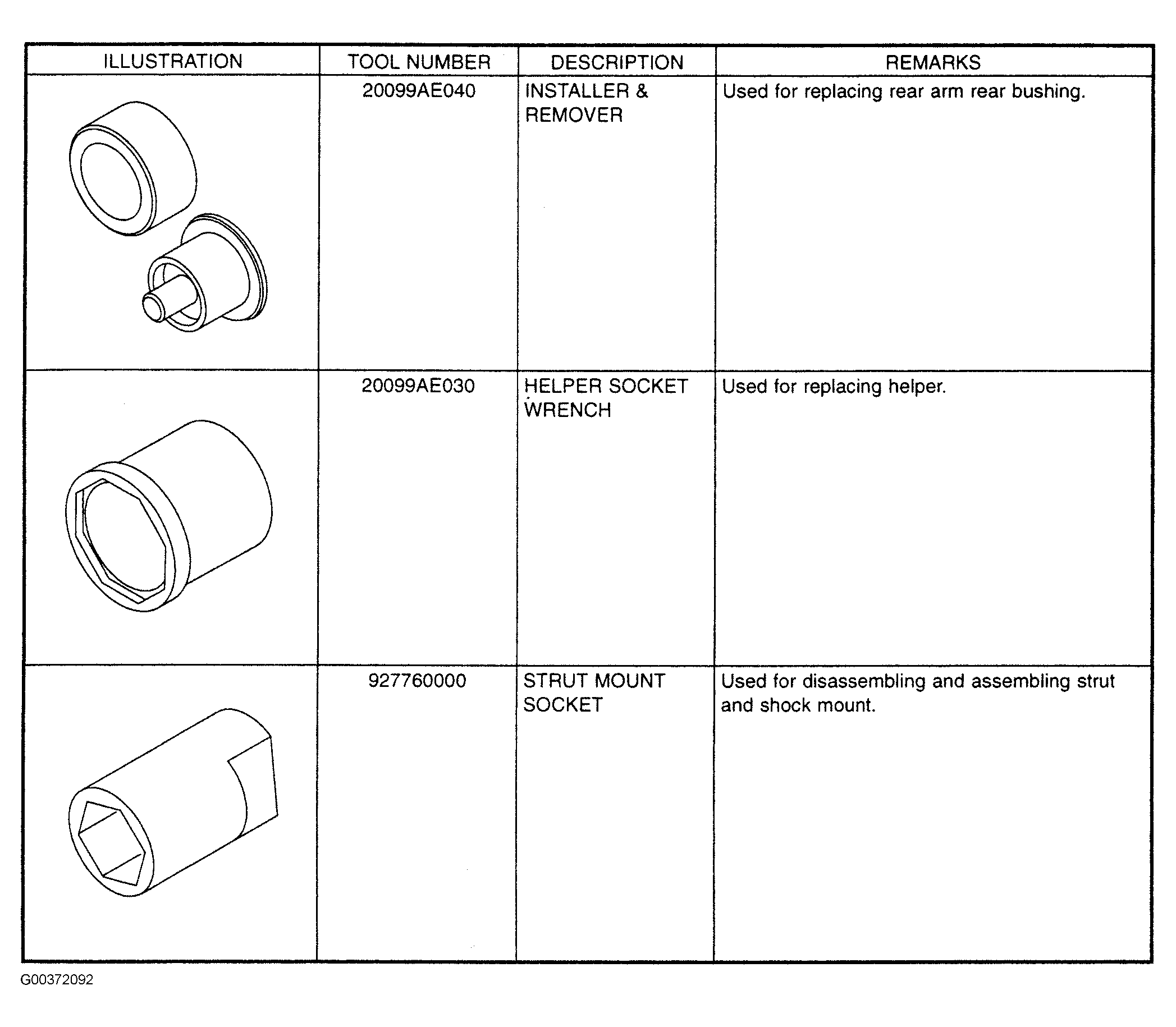

Fig 1: Special Tools (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

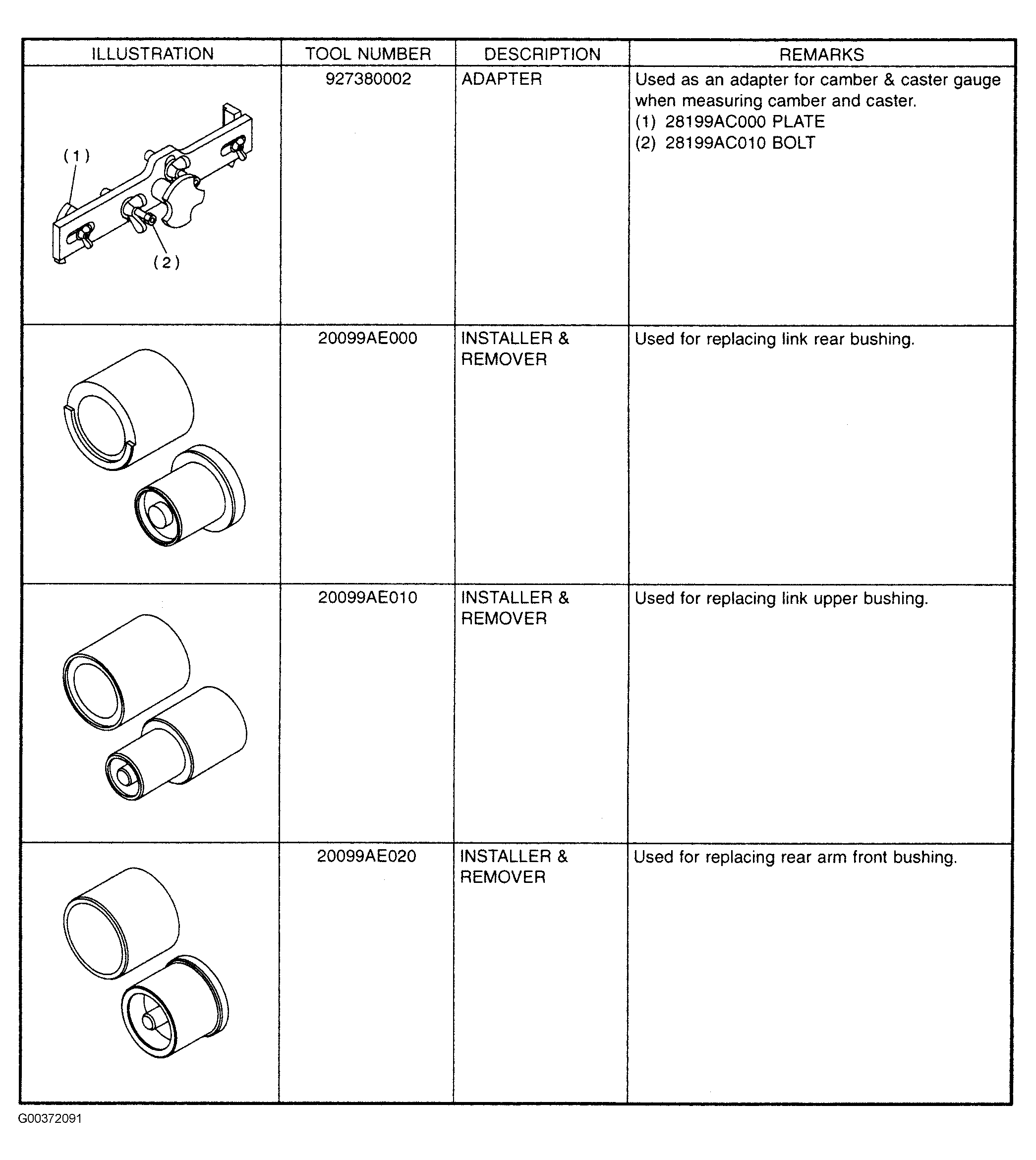

Fig 2: Special Tools (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
