AT Shift Lock Solenoid and "P" Position Switch: Inspection

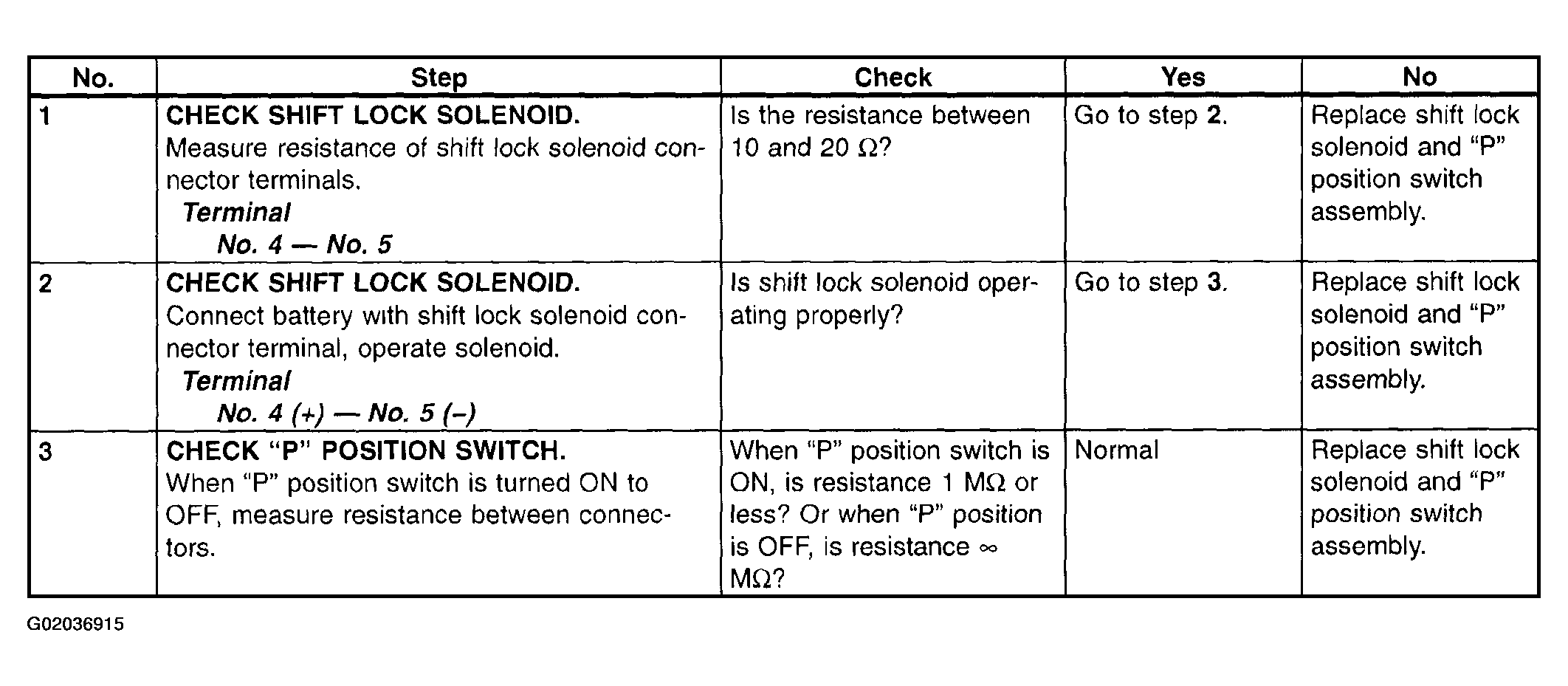

Fig 1: AT Shift Lock Solenoid & "P" Position Switch Diagnostic Chart

G02036915
