Key Interlock Does Not Lock Or Release

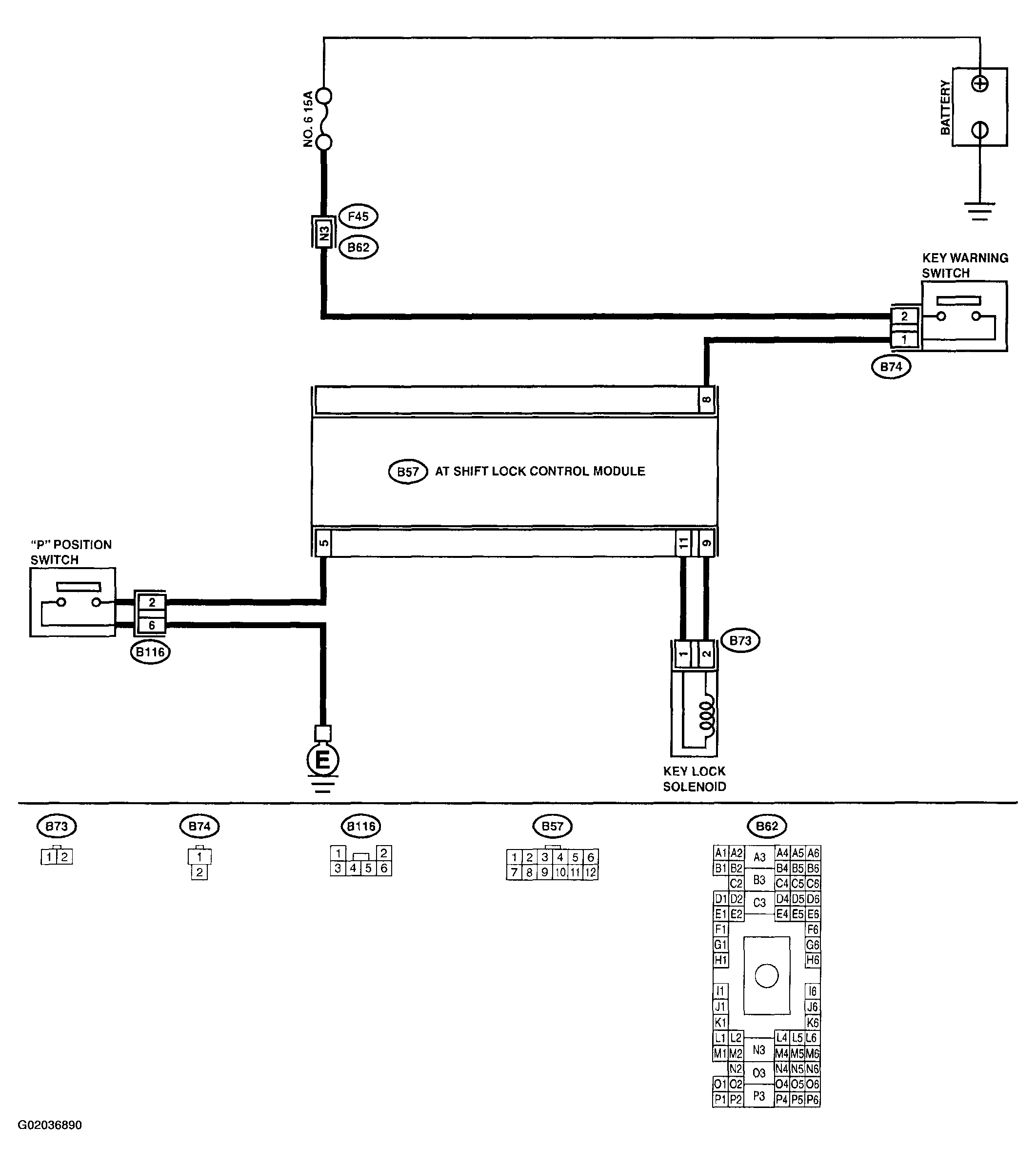

Fig 1: Wiring Diagram

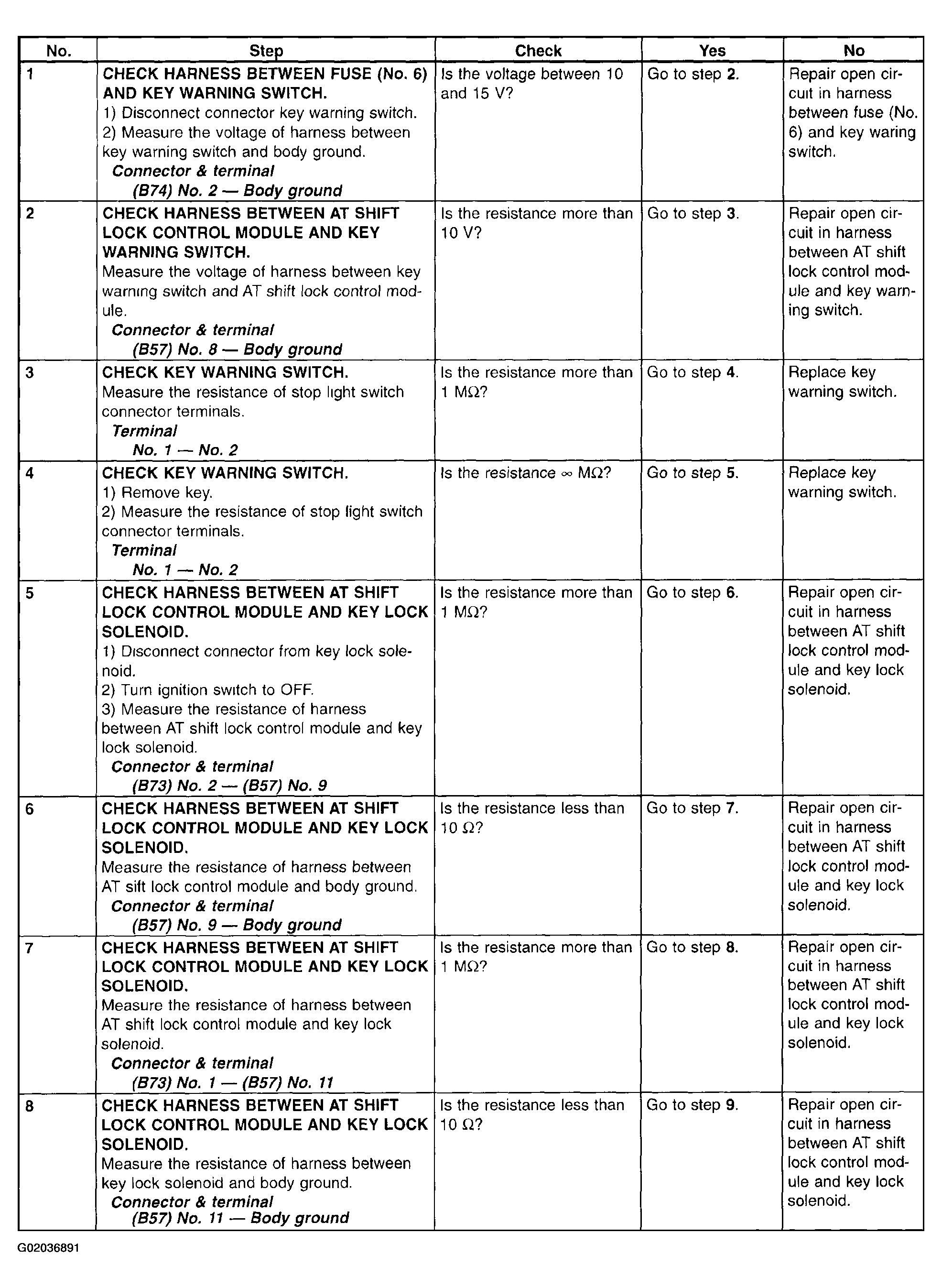

Fig 2: Key Interlock Diagnostic Chart

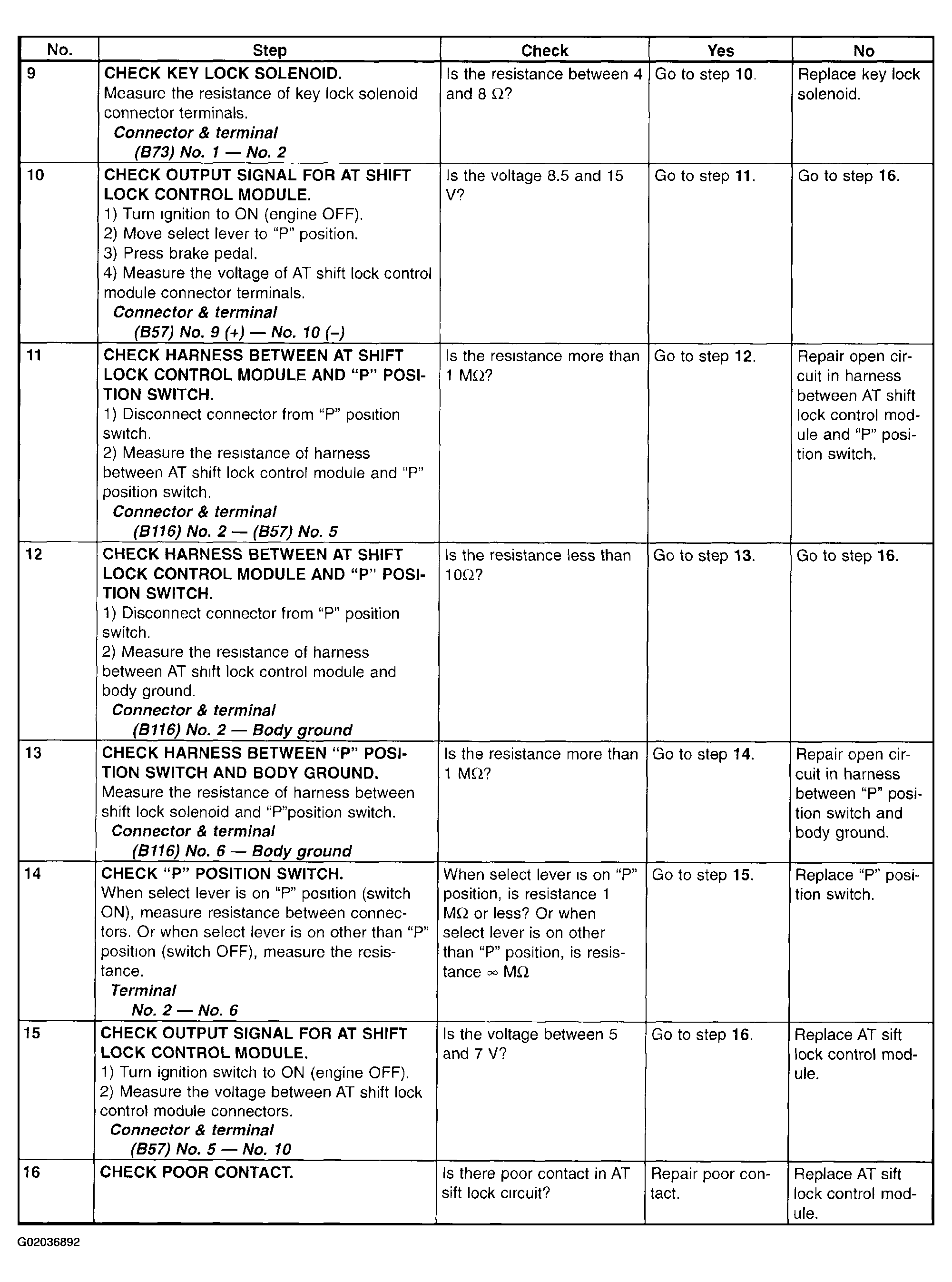

Fig 3: Key Interlock Diagnostic Chart
