Electrical Component: Location

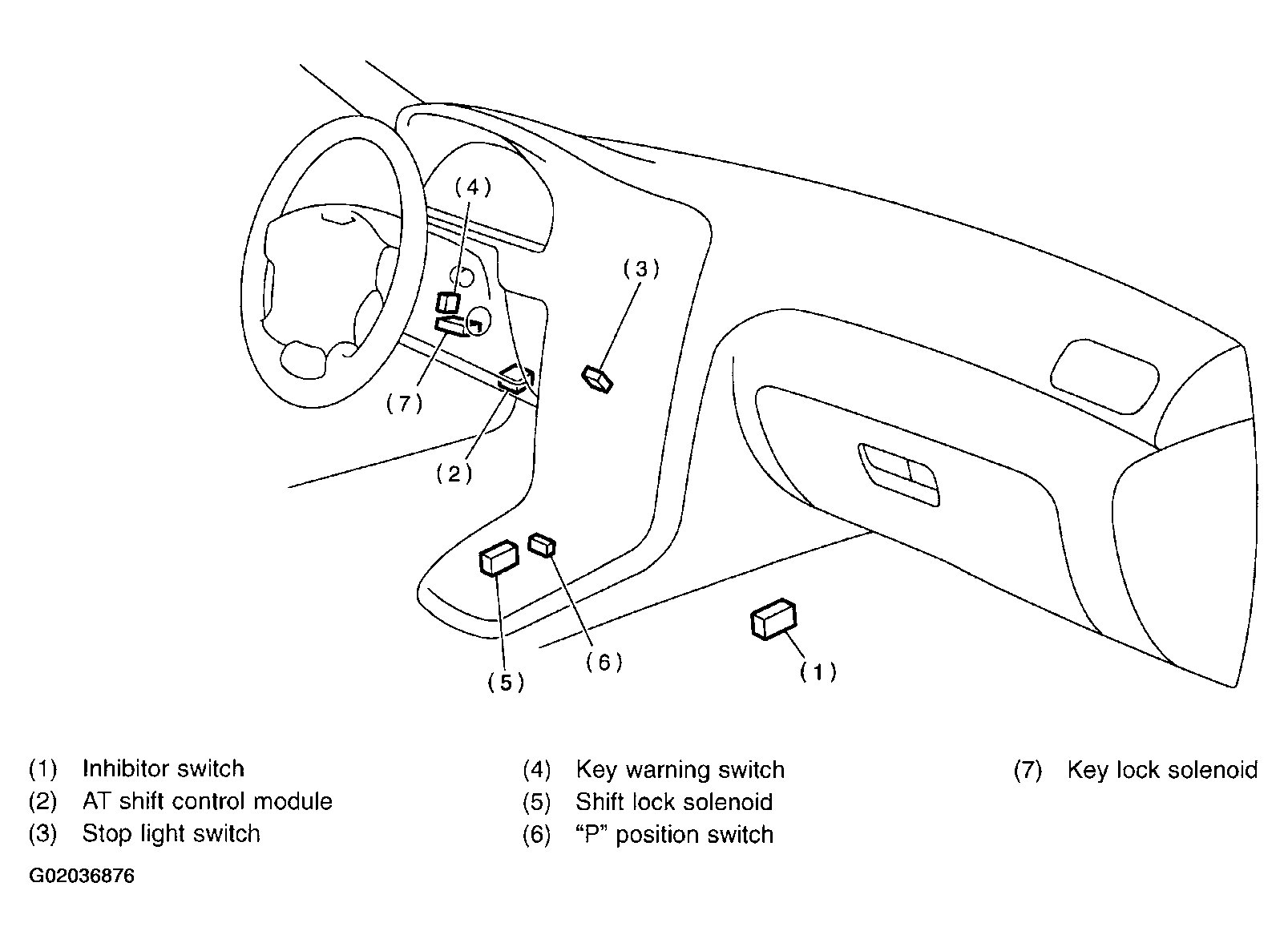

Fig 1: Locating Electrical Components (1 Of 2)

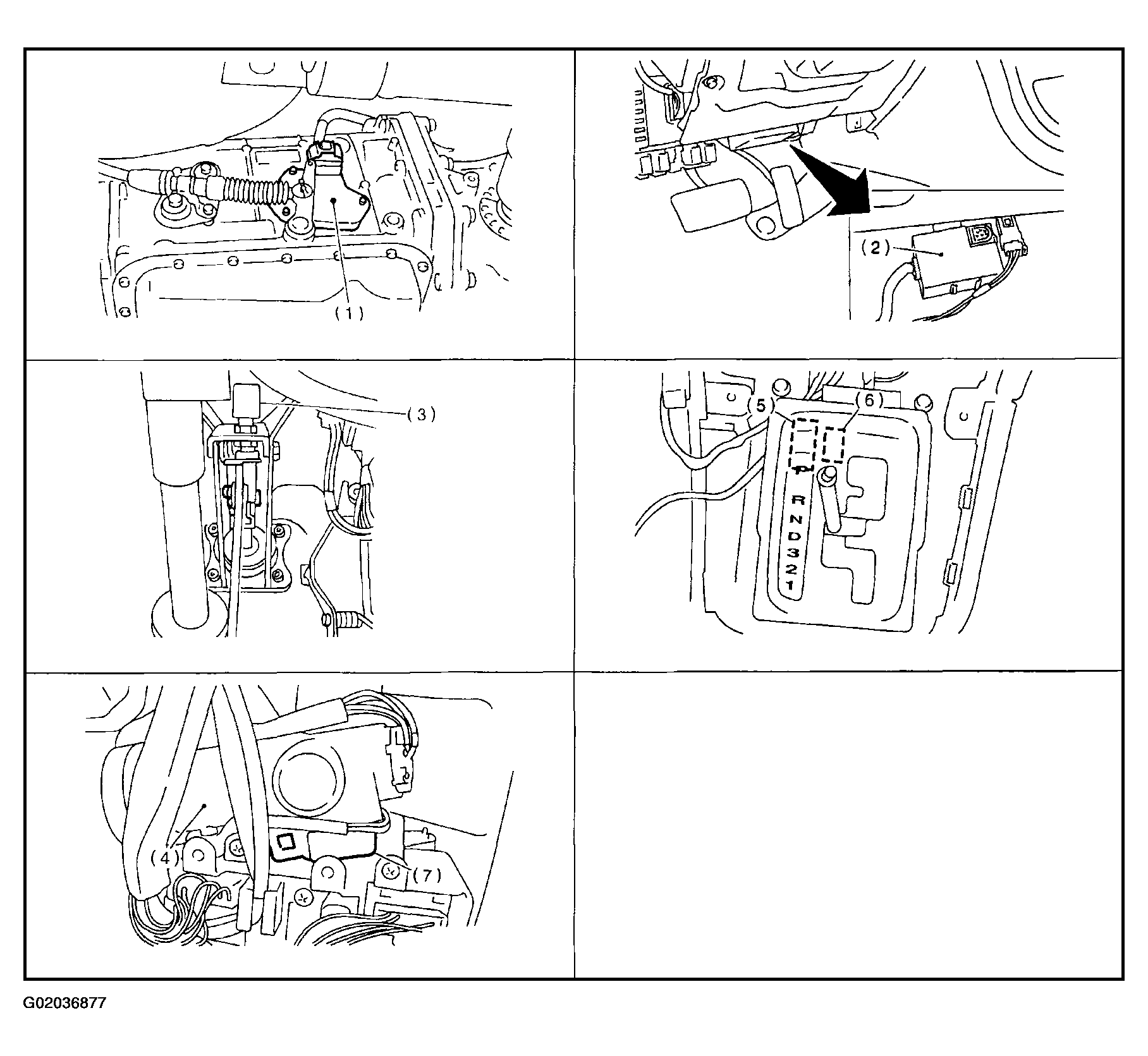

Fig 2: Locating Electrical Components (2 Of 2)
