Code 74: 2-4 Brake Timing Solenoid: Trouble Symptom

Excessive shift shock.

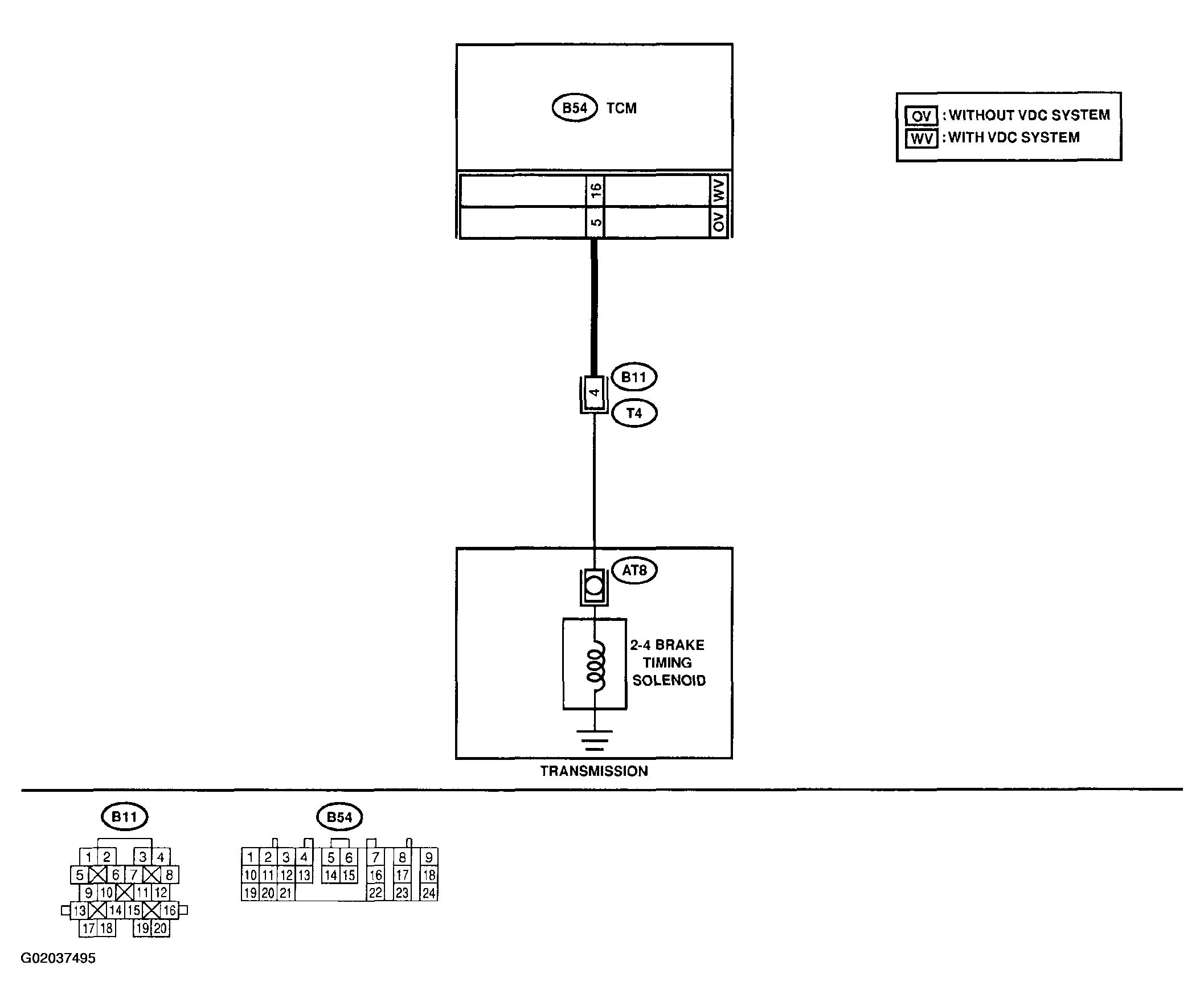

Fig 1: Trouble Code 74 - 2-4 Brake Timing Solenoid Wiring Diagram

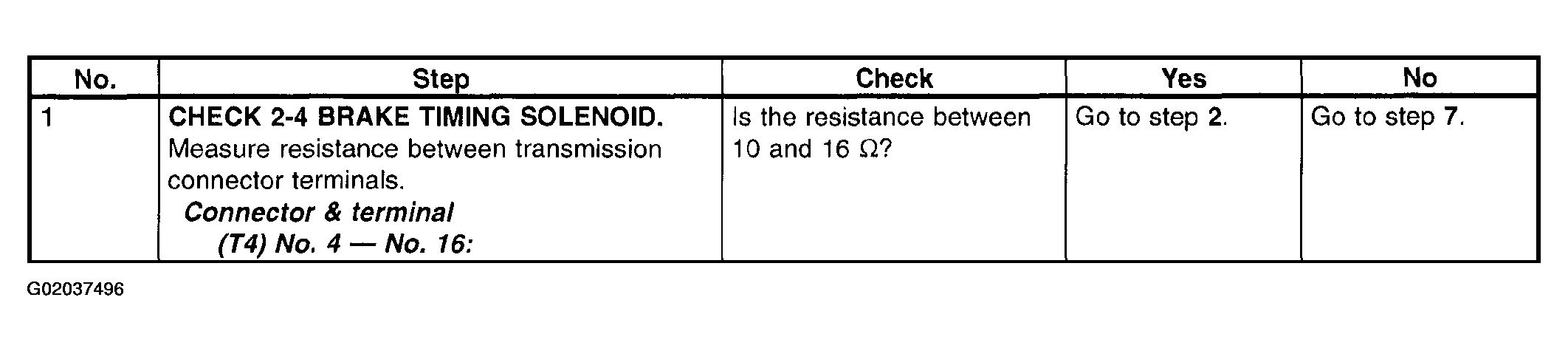

Fig 2: Trouble Code 74 - Diagnostic Chart (1 Of 4)

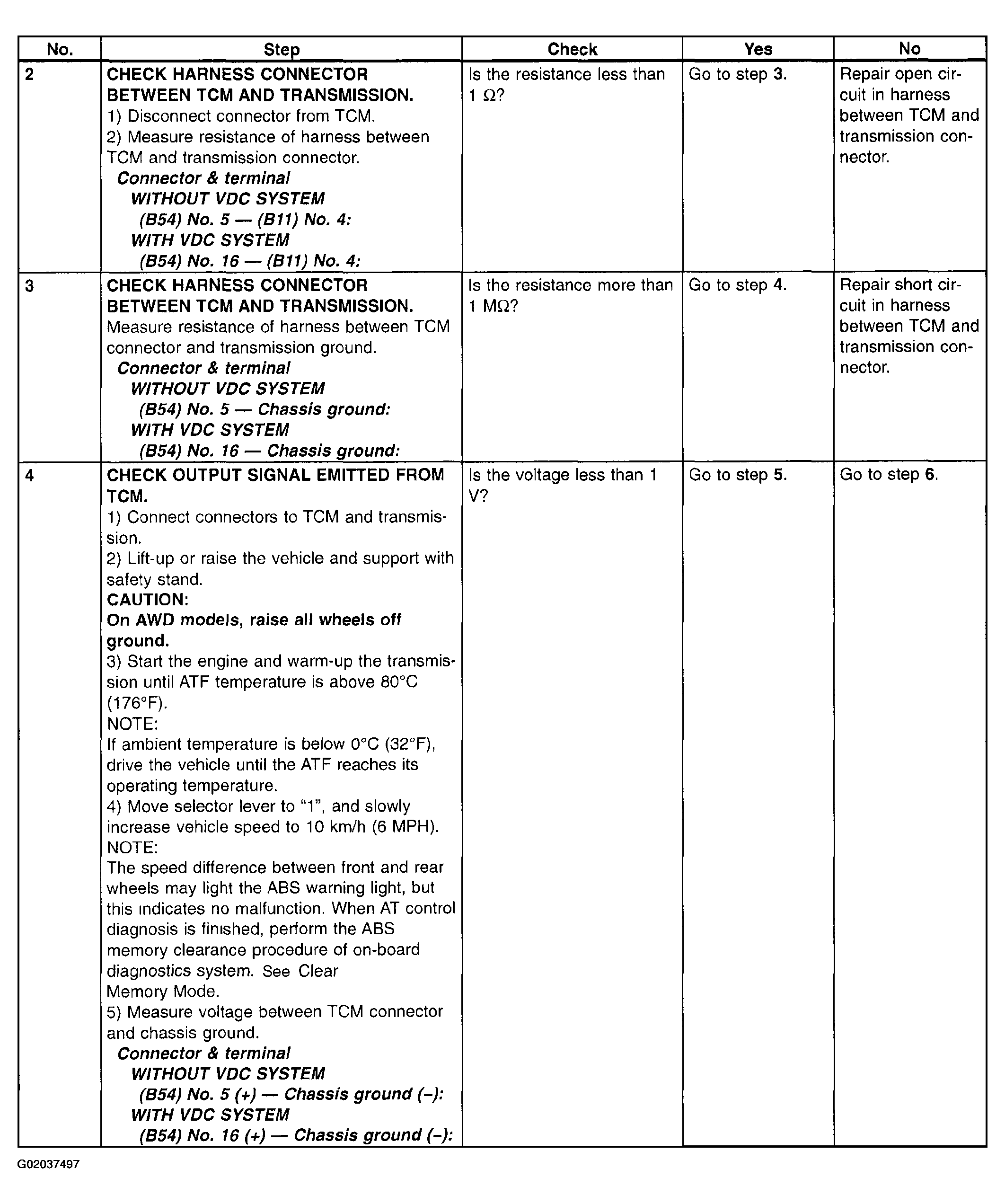

Fig 3: Trouble Code 74 - Diagnostic Chart (2 Of 4)

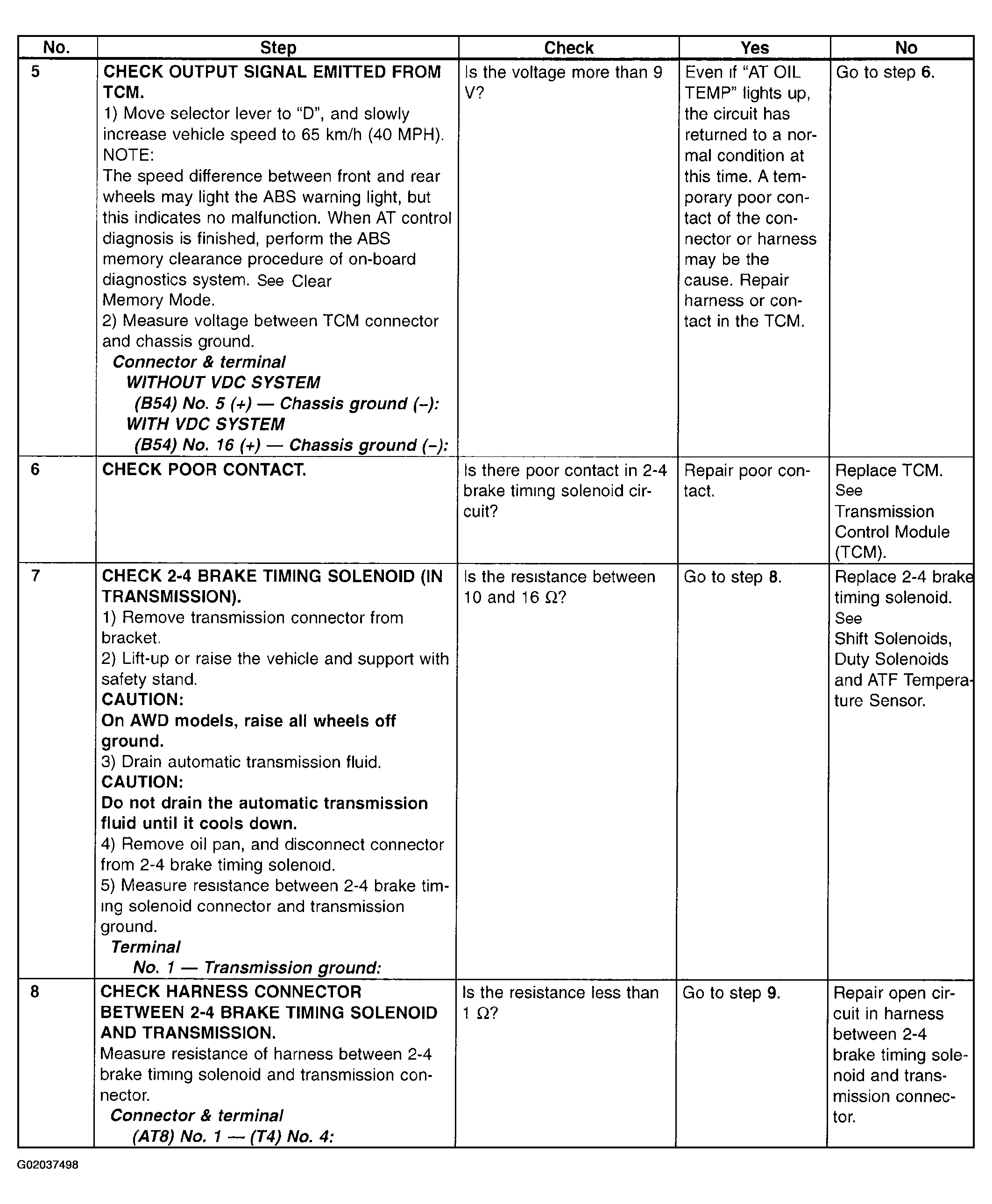

Fig 4: Trouble Code 74 - Diagnostic Chart (3 Of 4)

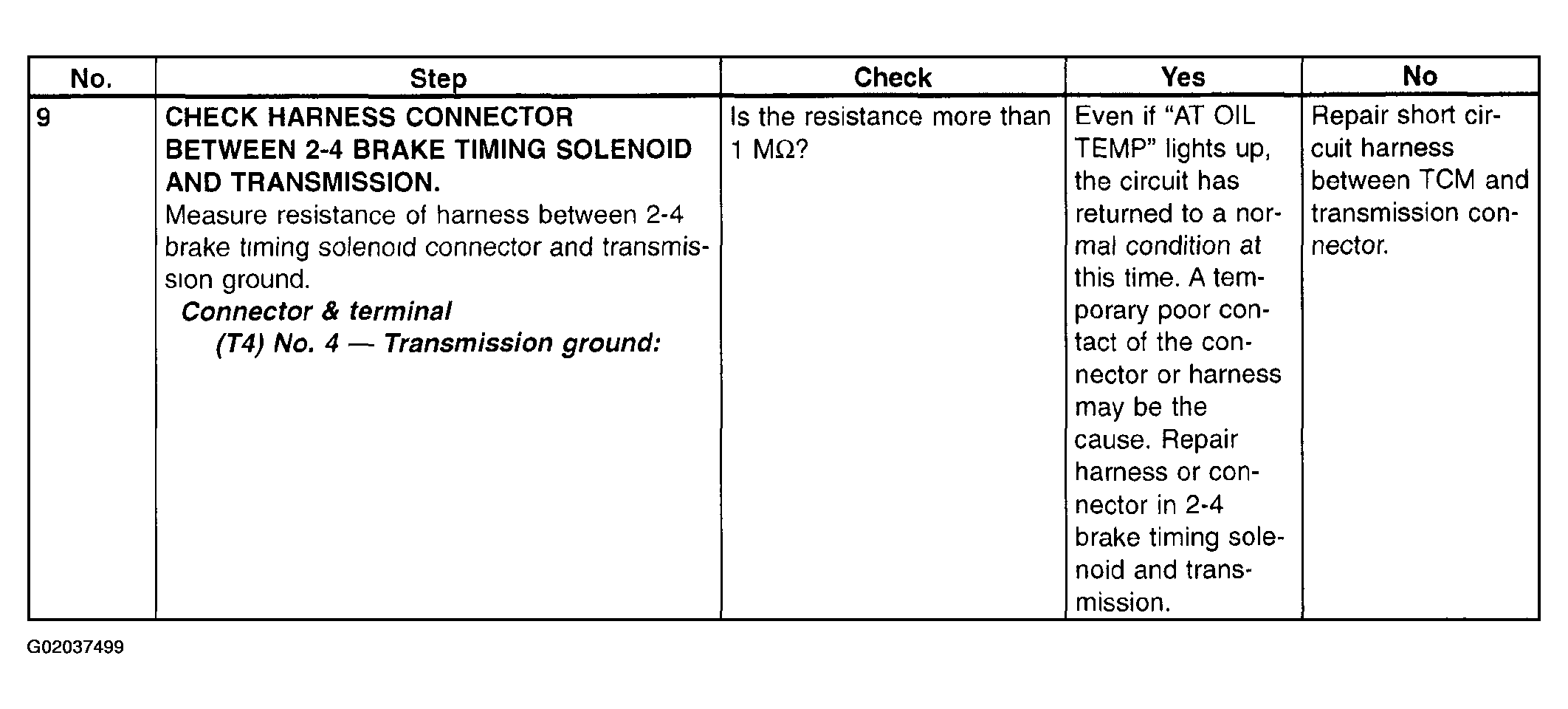

Fig 5: Trouble Code 74 - Diagnostic Chart (4 Of 4)
