Code 77: Lock-Up Duty Solenoid: Trouble Symptom

No "lock-up" (after engine warm-up).

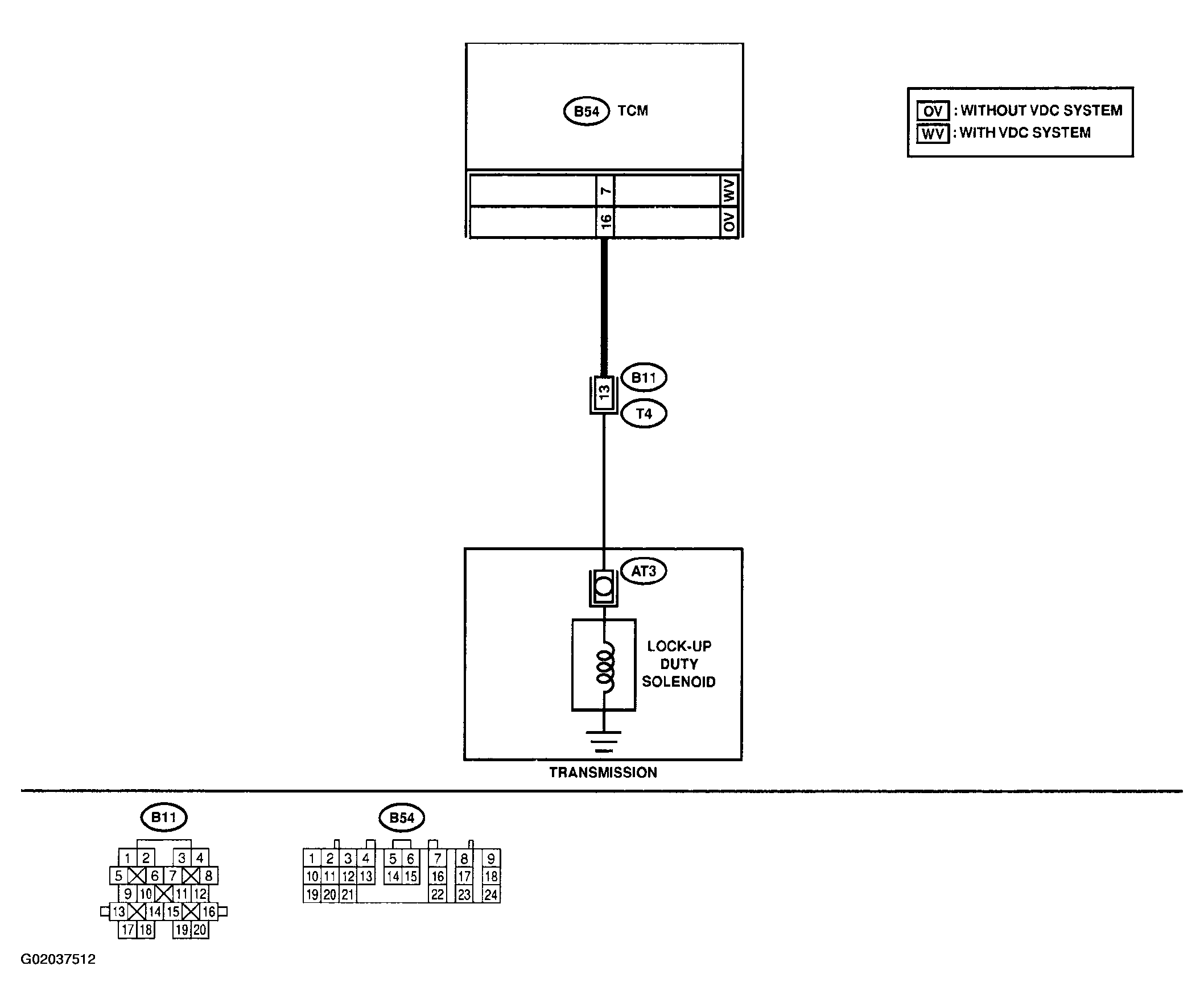

Fig 1: Trouble Code 77 - Lock-Up Duty Solenoid Wiring Diagram

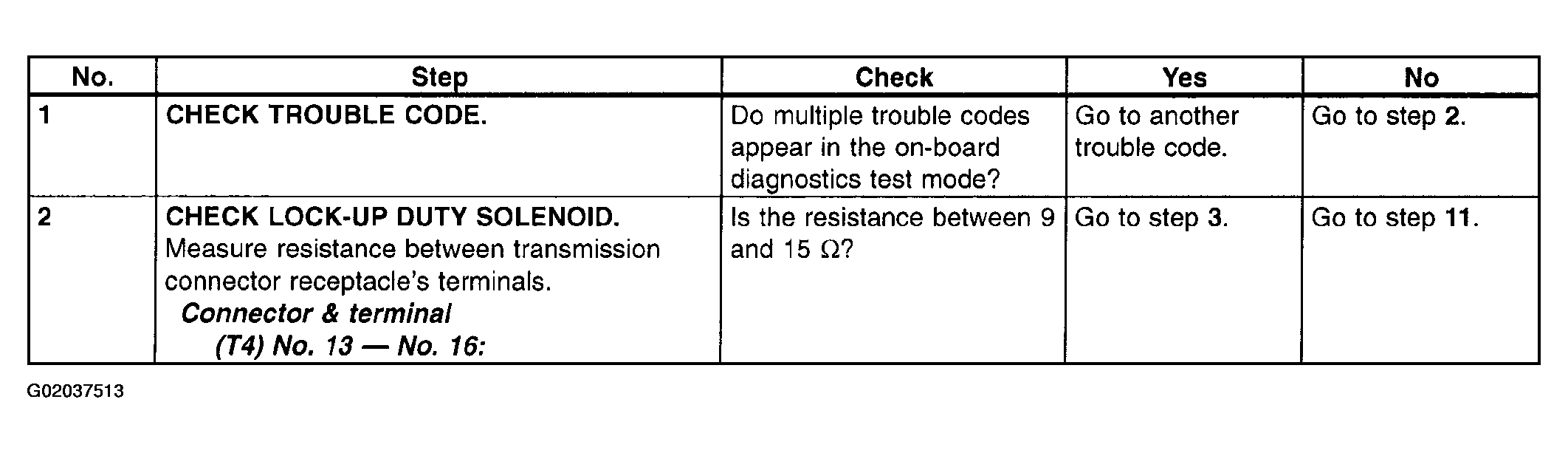

Fig 2: Trouble Code 77 - Diagnostic Chart (1 Of 4)

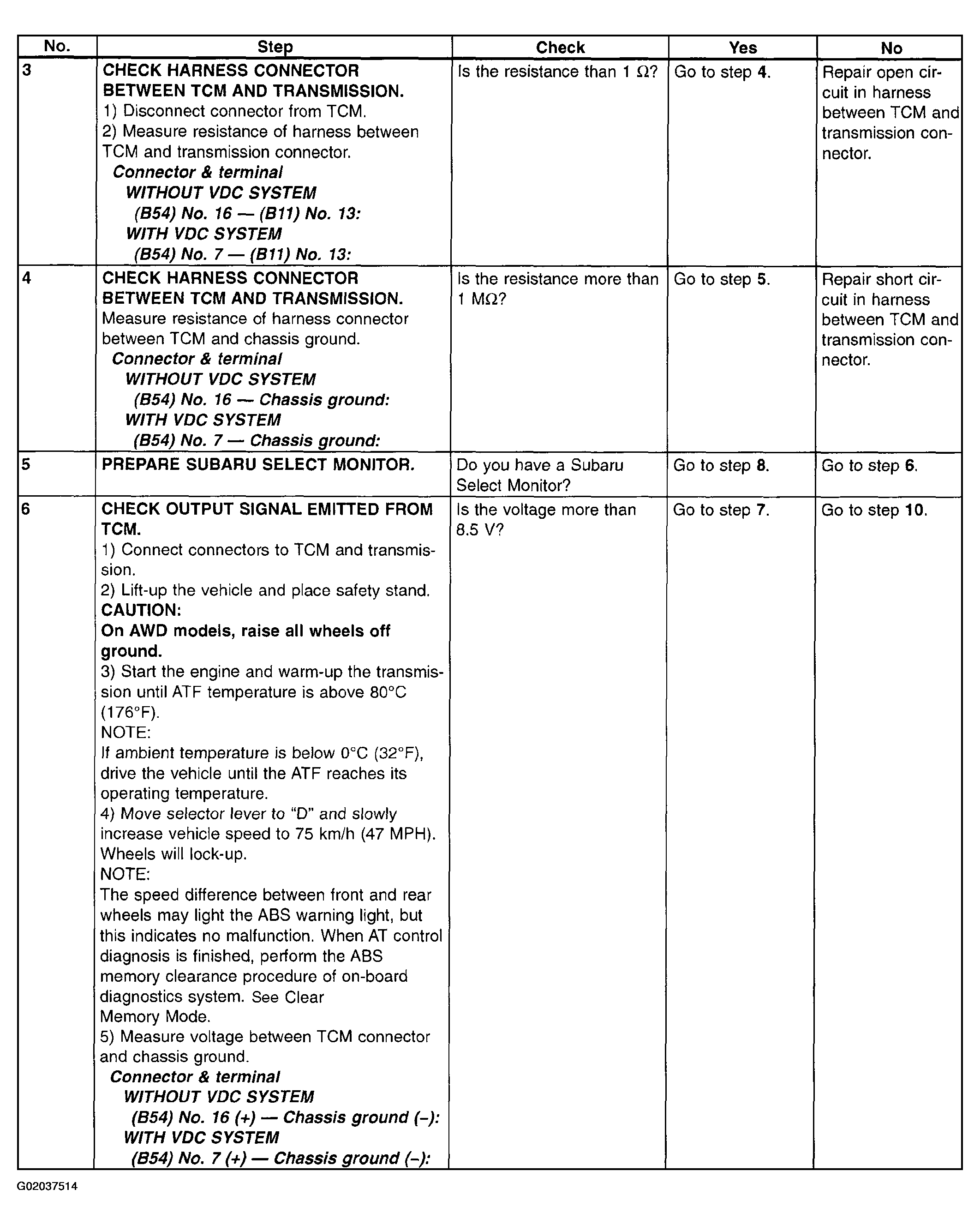

Fig 3: Trouble Code 77 - Diagnostic Chart (2 Of 4)

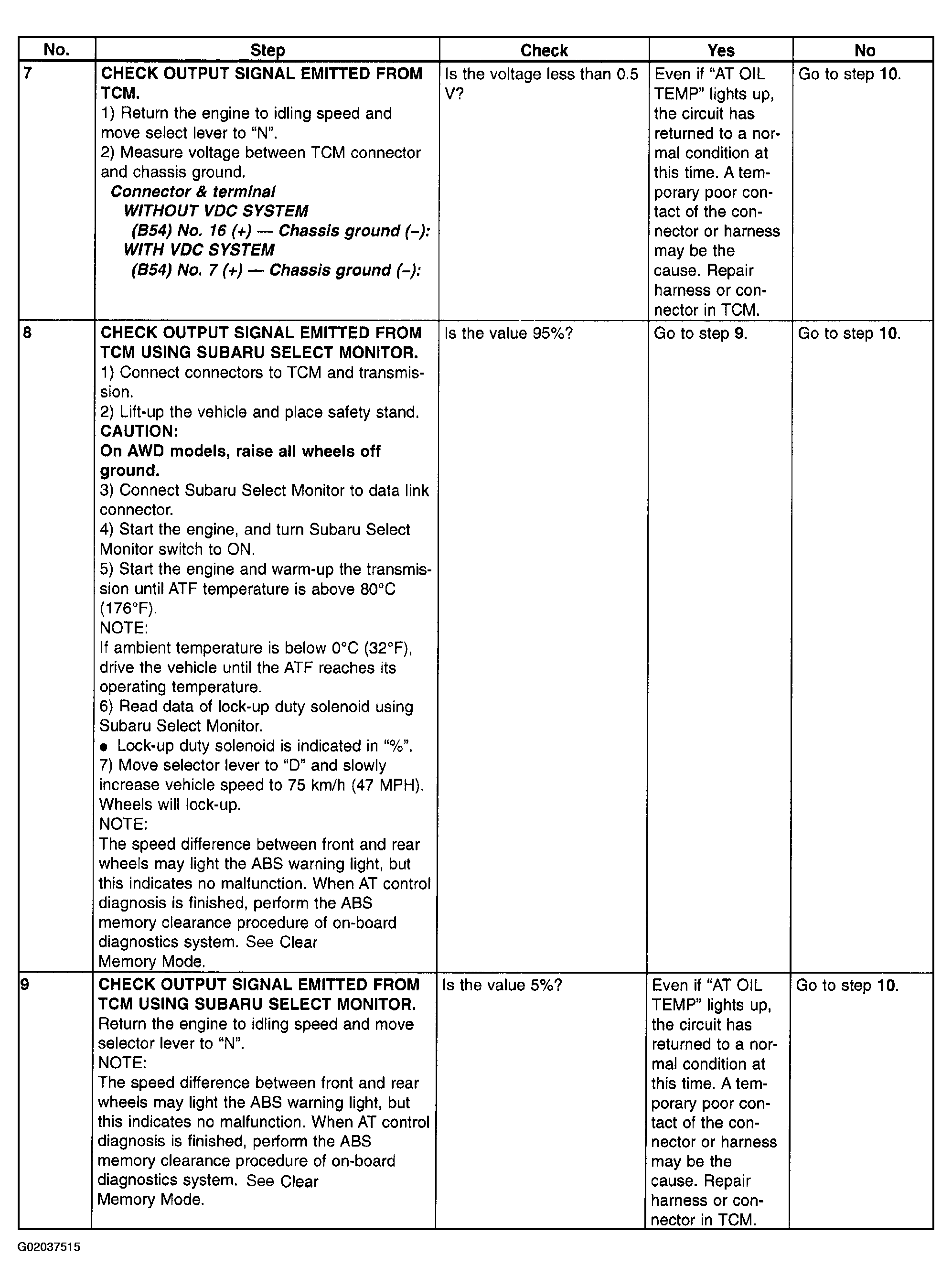

Fig 4: Trouble Code 77 - Diagnostic Chart (3 Of 4)

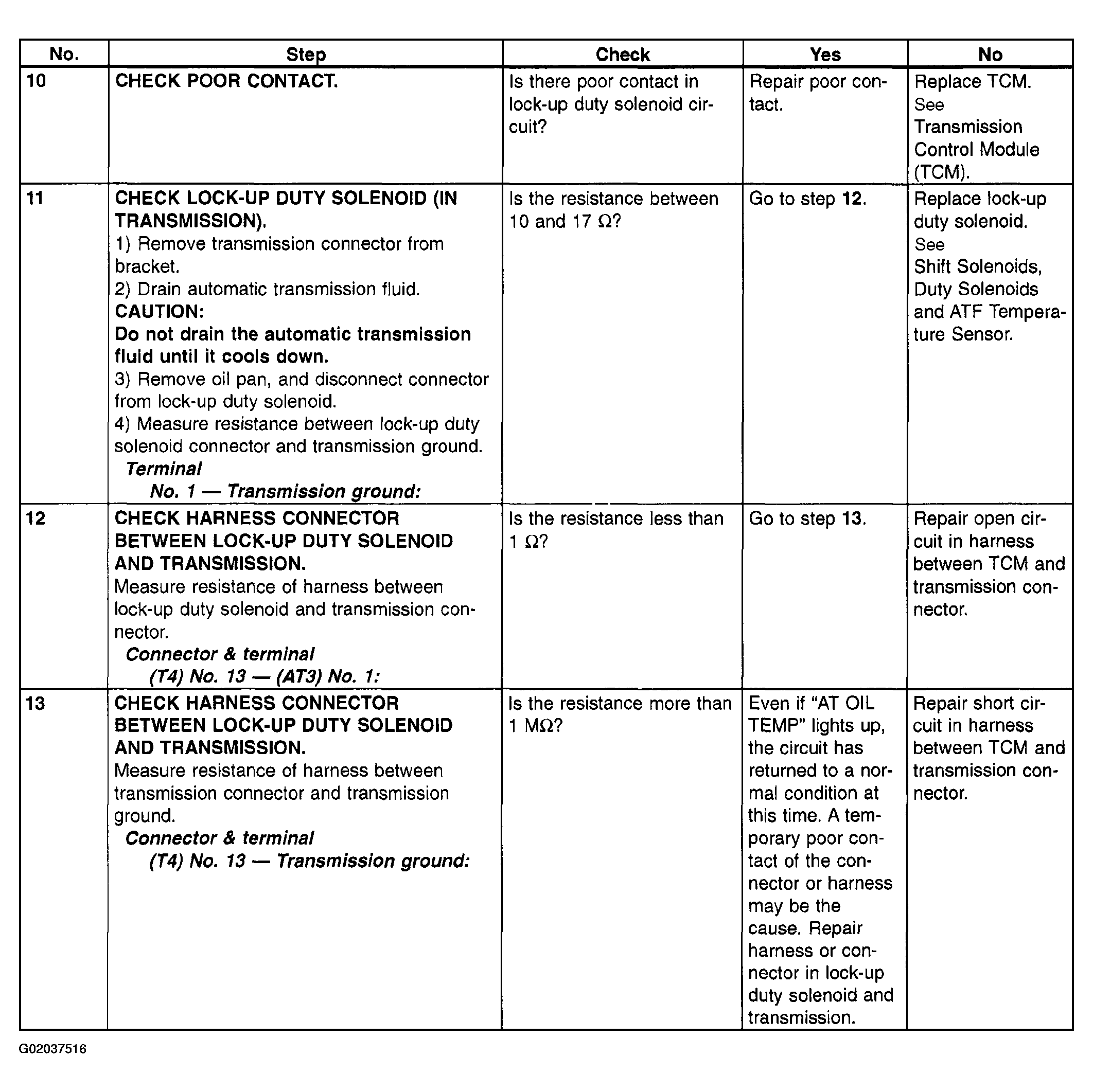

Fig 5: Trouble Code 77 - Diagnostic Chart (4 Of 4)
