With VDC System

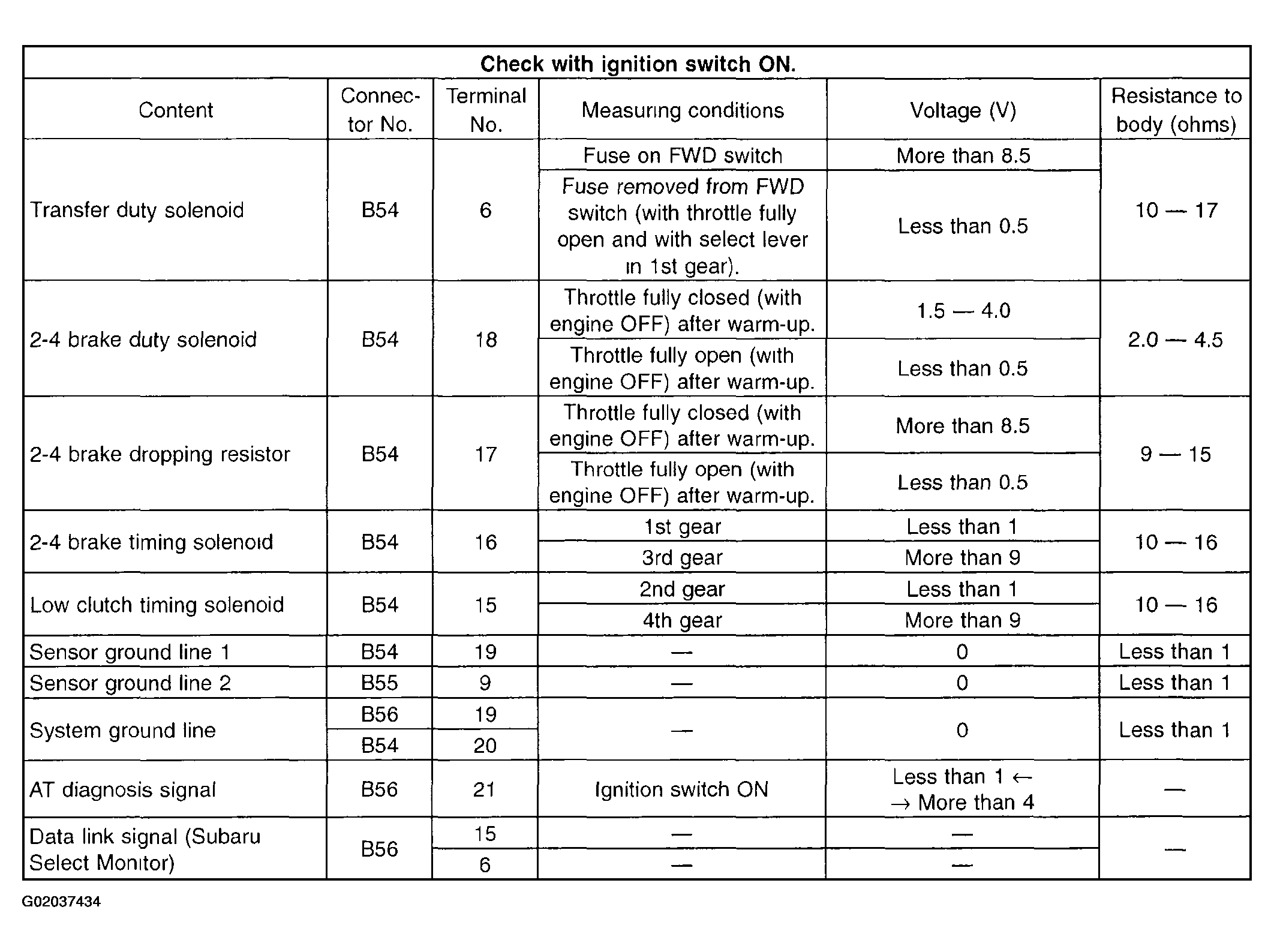

Fig 1: Transmission Control Module (TCM) - I/O Signal (1 Of 4)

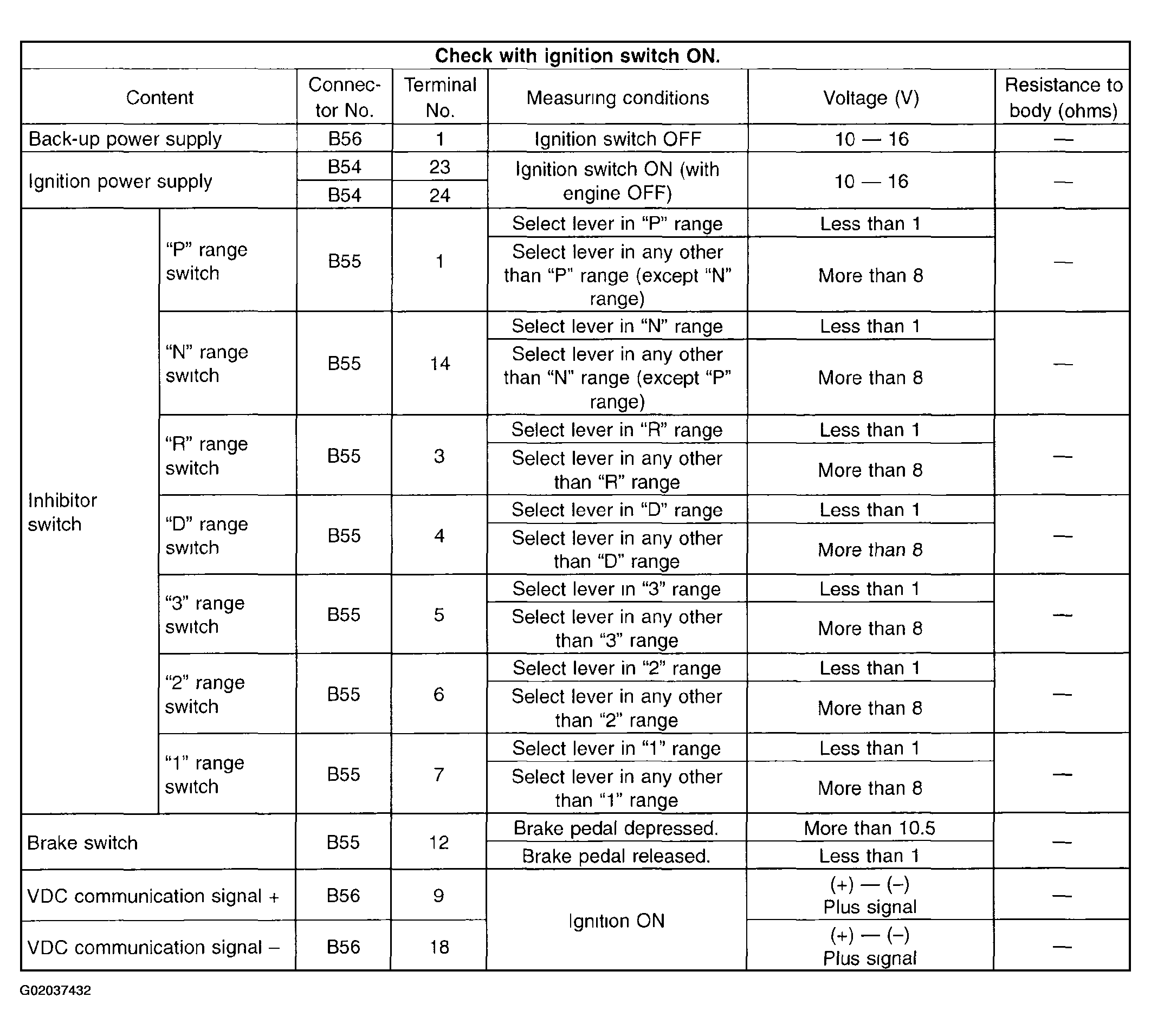

Fig 2: Transmission Control Module (TCM) - I/O Signal (2 Of 3)

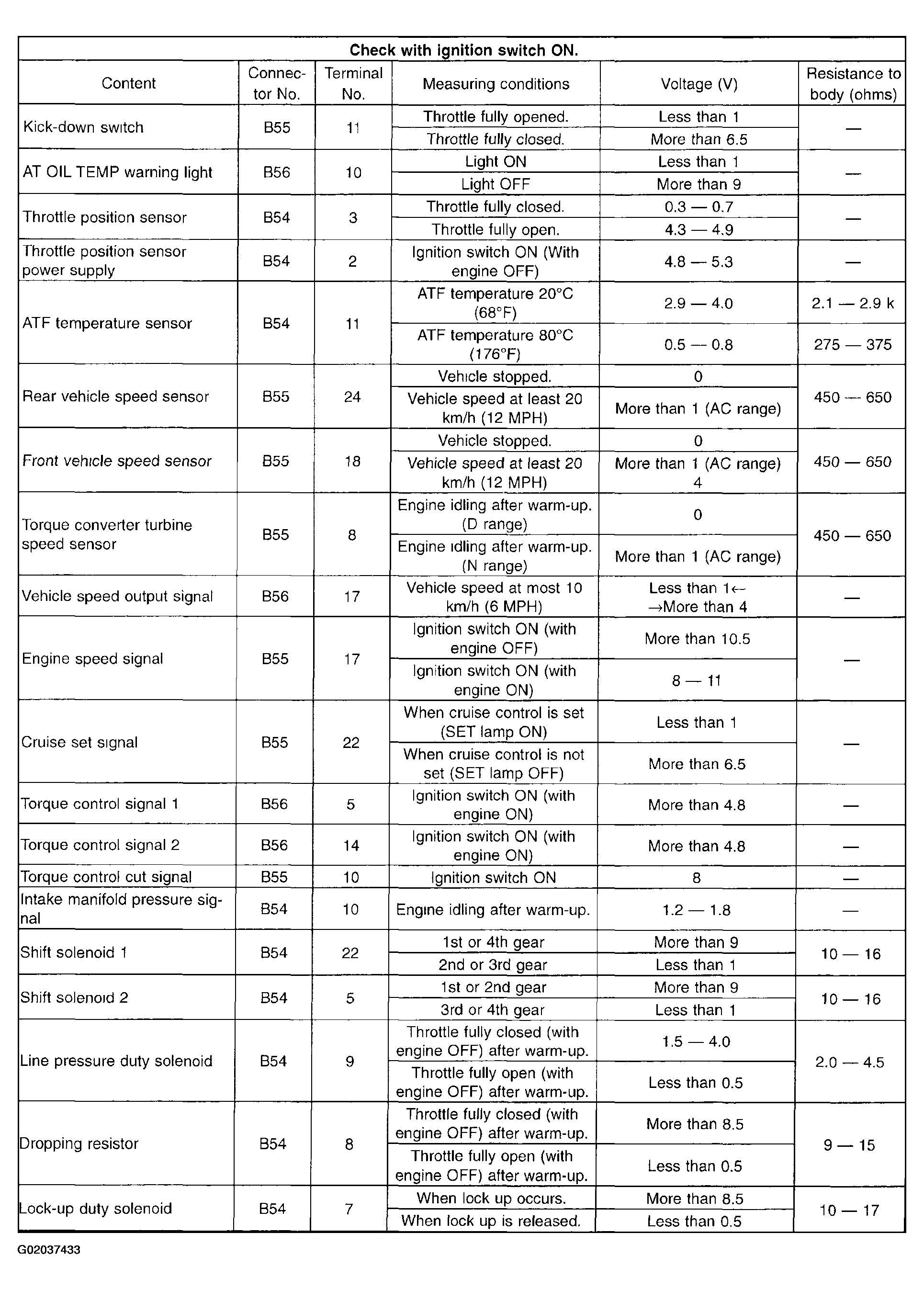

Fig 3: Transmission Control Module (TCM) - I/O Signal (3 Of 4)

Fig 4: Transmission Control Module (TCM) - I/O Signal (4 Of 4)
