Transmission Control Module (TCM) I/O Signal: Measurement: Waveform

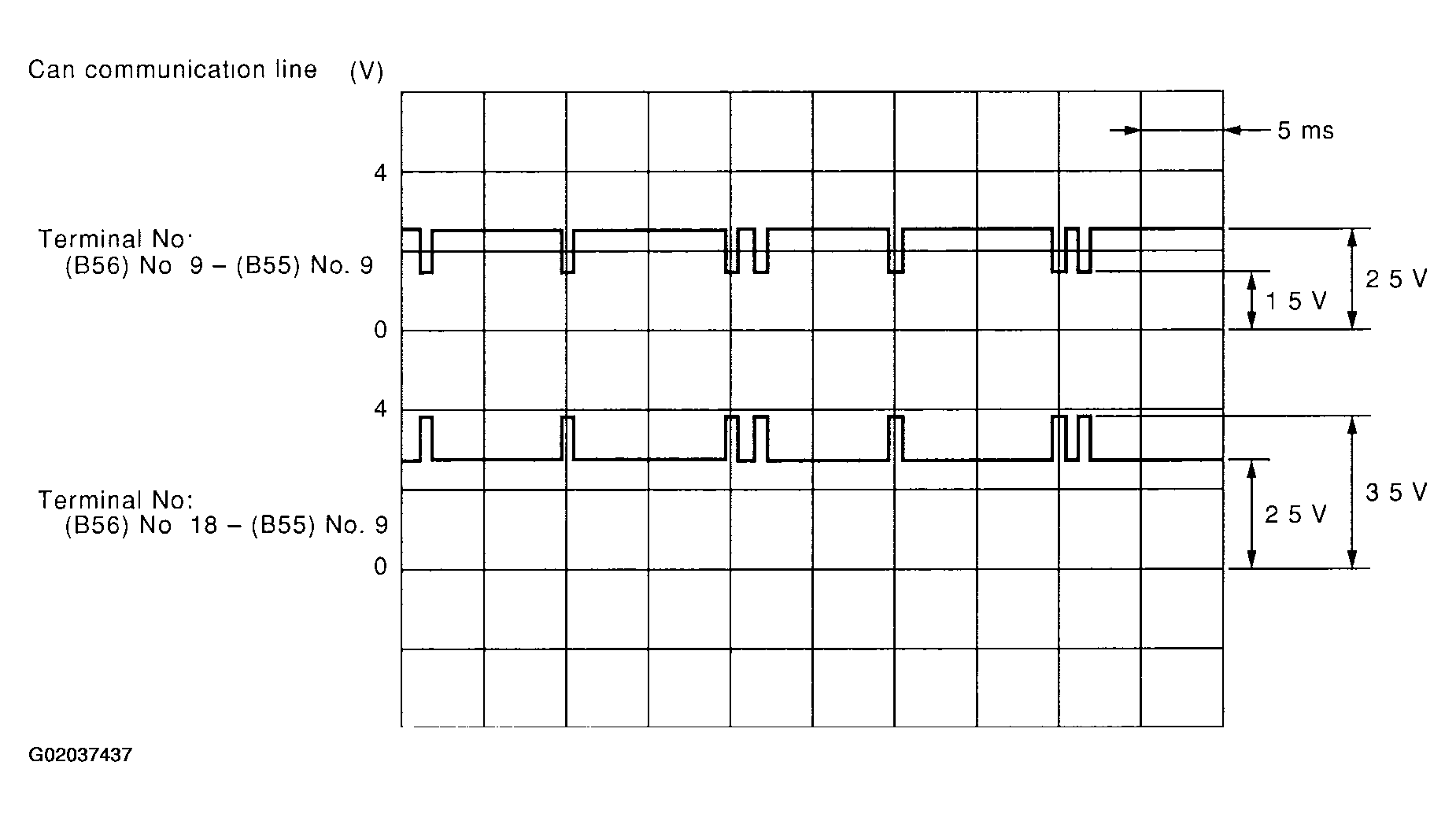

Fig 1: TCM I/O Signal Waveform Chart
G02037437
