Dropping Resistor: Installation

Install in the reverse order of removal.
Tightening torque:
1. 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

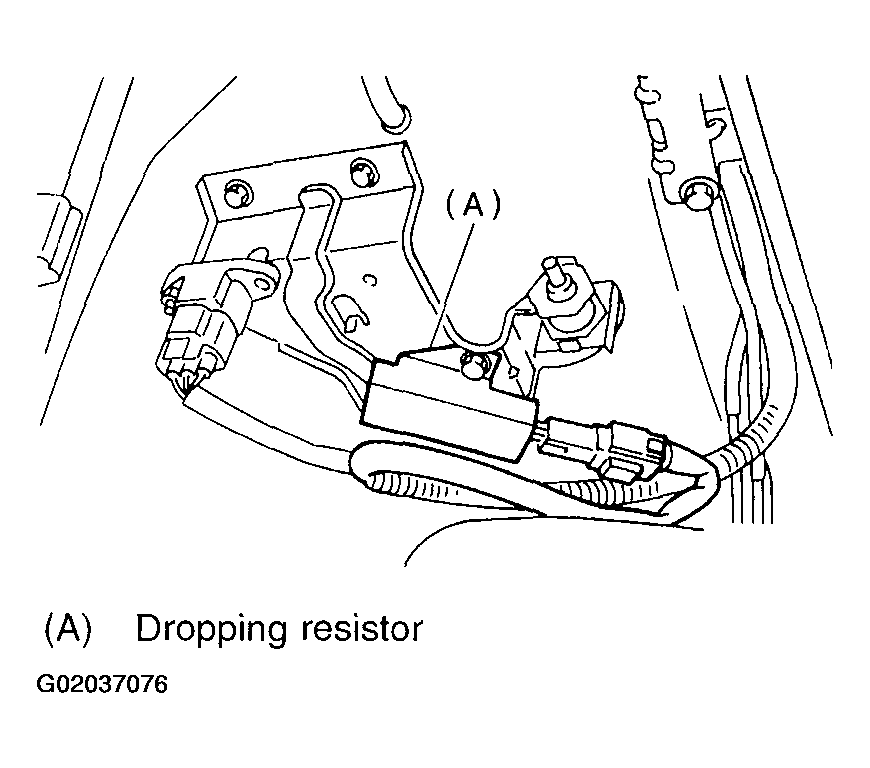

Fig 1: Locating Dropping Resistor (2.5 L Model)

Fig 2: Locating Dropping Resistor (3.0 L Model)
