Transmission Mounting

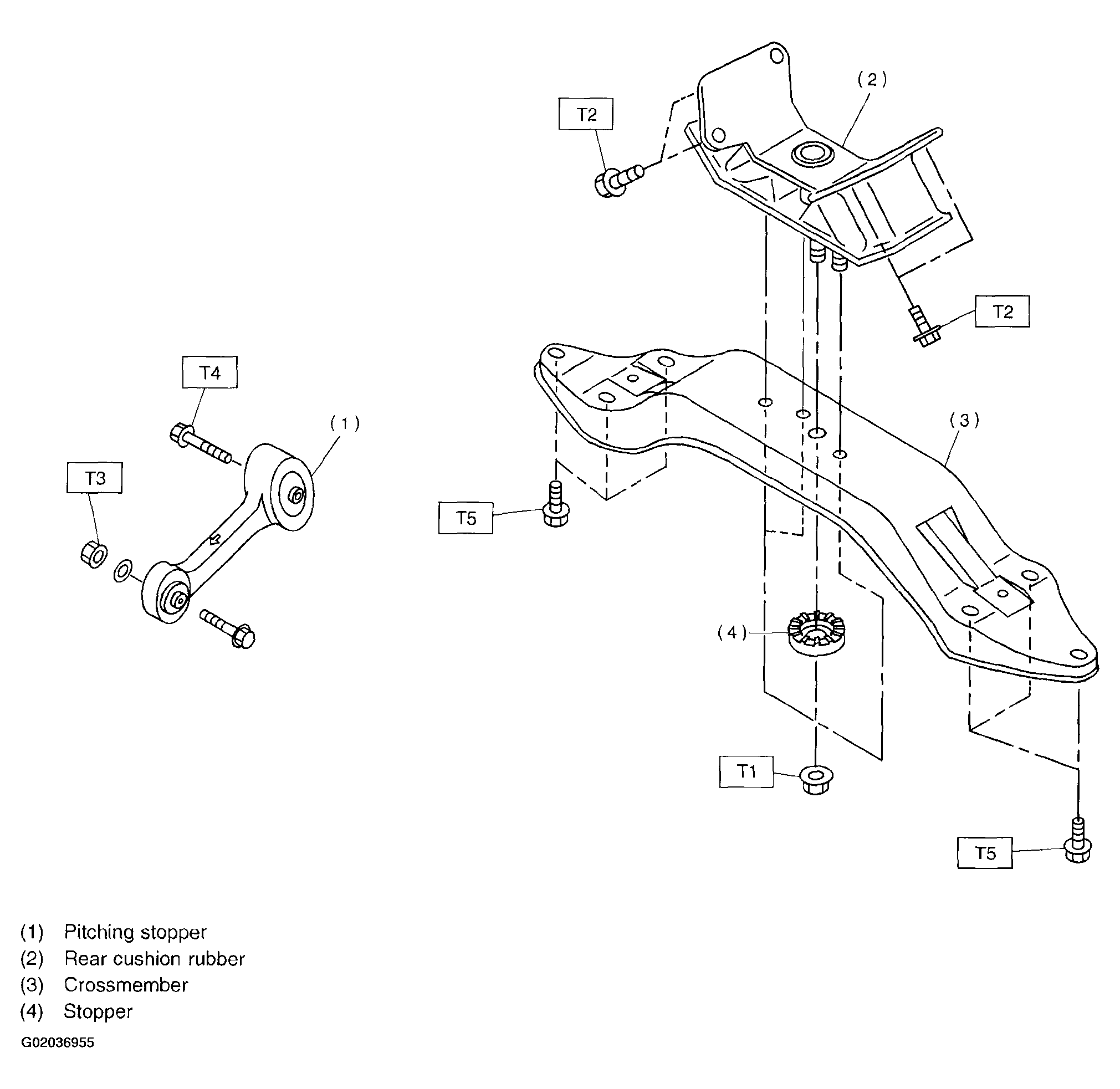

Fig 1: Identifying Transmission Mounting

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  35 (3.6, 26)
2. T2:  39 (4.0, 29)
3. T3:  50 (5.1, 37)
4. T4:  58 (5.9, 43)
5. T5:  75 (7.6, 55)
