Test Methods

Except VTD model
Check transfer clutch pressure in accordance with the following chart in the same manner as with line pressure.

ST 498897700 OIL PRESSURE ADAPTER SET

ST 498575400 OIL PRESSURE GAUGE ASSY

AWD mode: "D" range

FWD mode: "P" range, engine speed 2,000 rpm

CAUTION: Before setting in FWD mode, install spare fuse on FWD mode switch.

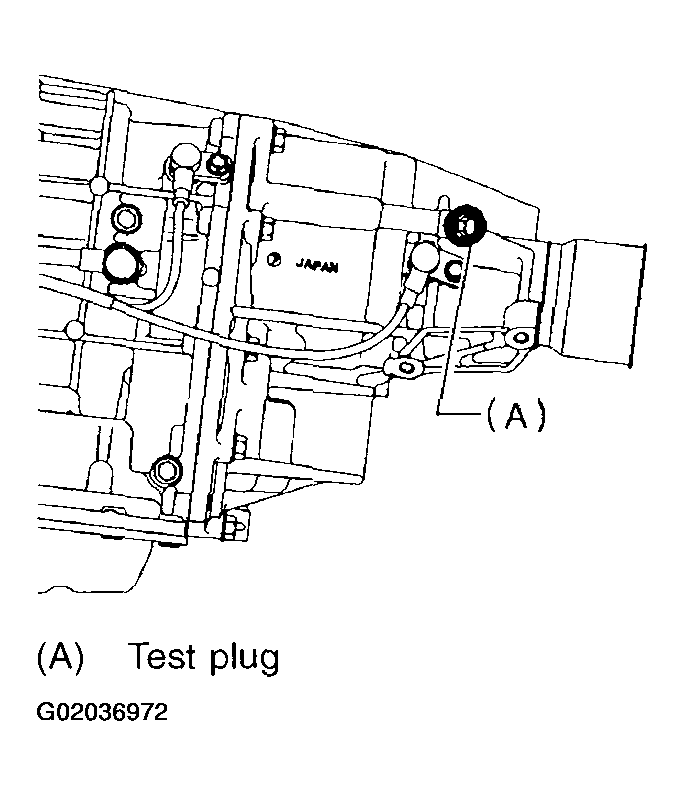

Fig 1: Locating Test Plug (Except VTD Model)
VTD model
Check transfer clutch pressure in accordance with the following chart in the same manner as with line pressure.

ST 498897700 OIL PRESSURE ADAPTER SET

ST 498575400 OIL PRESSURE GAUGE ASSY

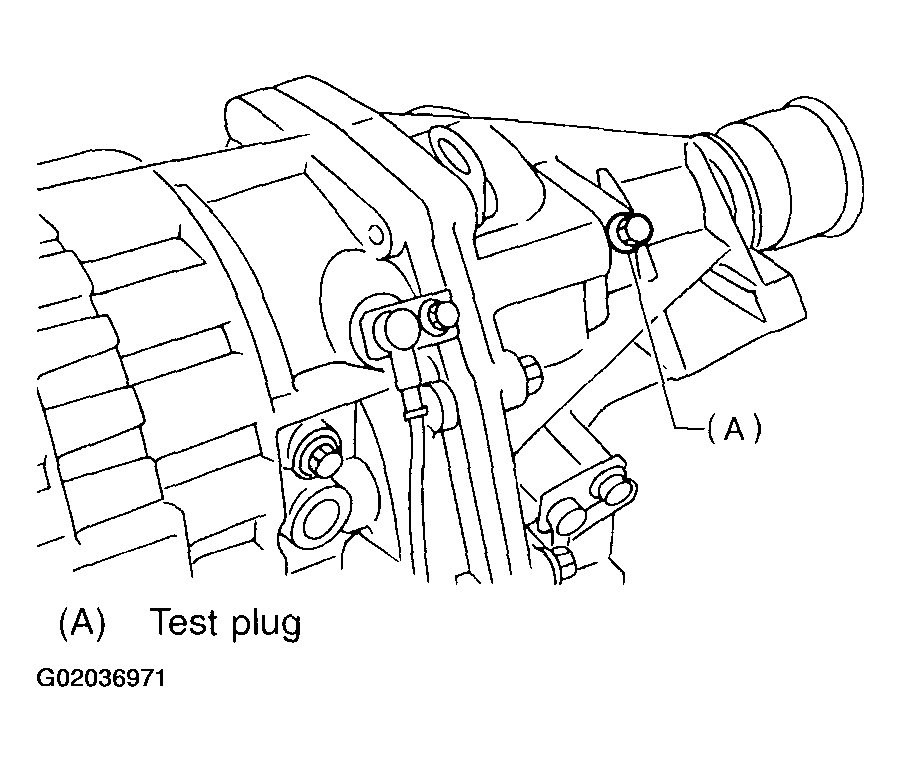

Fig 2: Locating Test Plug (VTD Model)
