Transmission Control Module (TCM): Installation

Install transmission control module.
Tightening torque:
1. 7.4 N.m (0.75 kgf-m, 5.4 ft-lb)

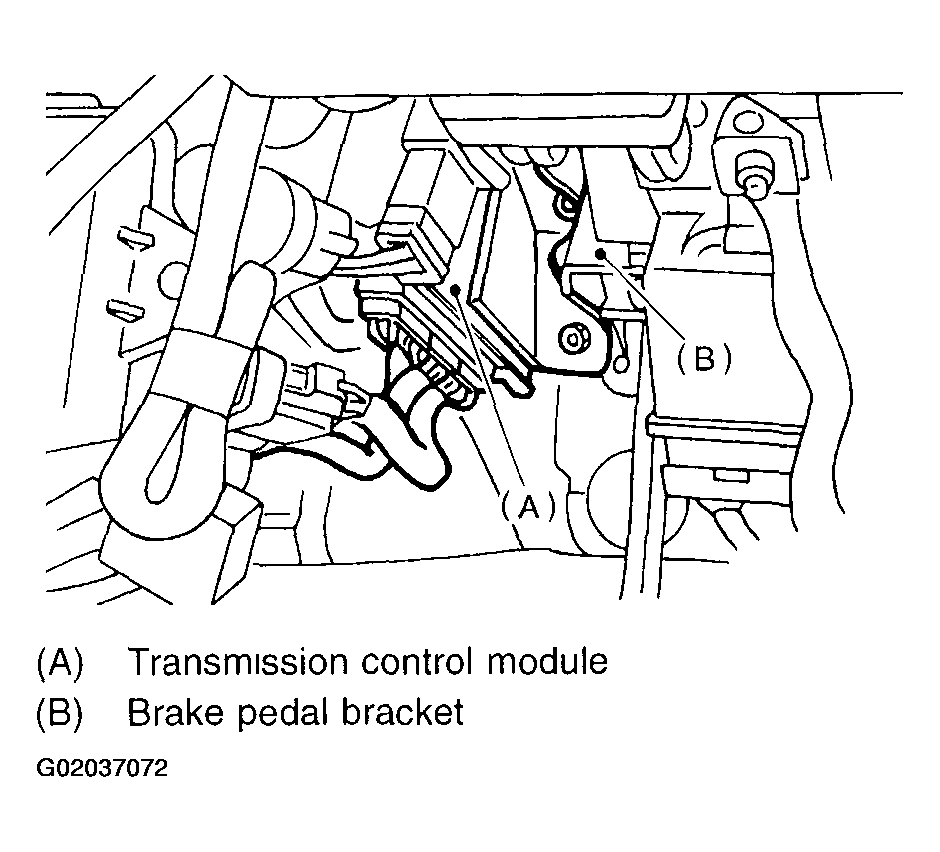

  Fig 1: Except VTD model

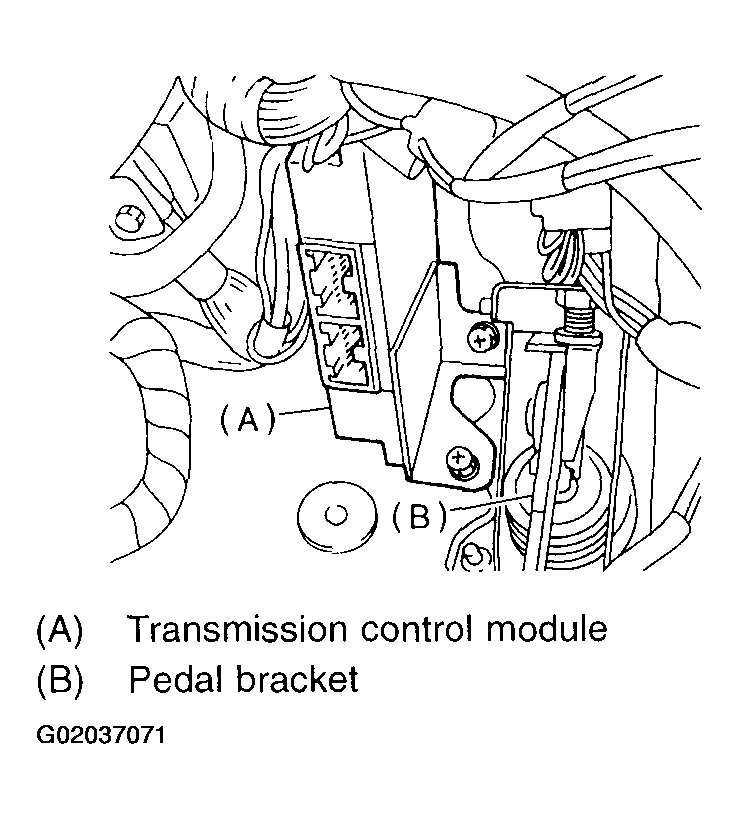

  Fig 2: VTD model
Connect connectors to transmission control module.
Install in the reverse order of removal.
