Extension Case: Removal

  1. Remove rear vehicle speed sensor.

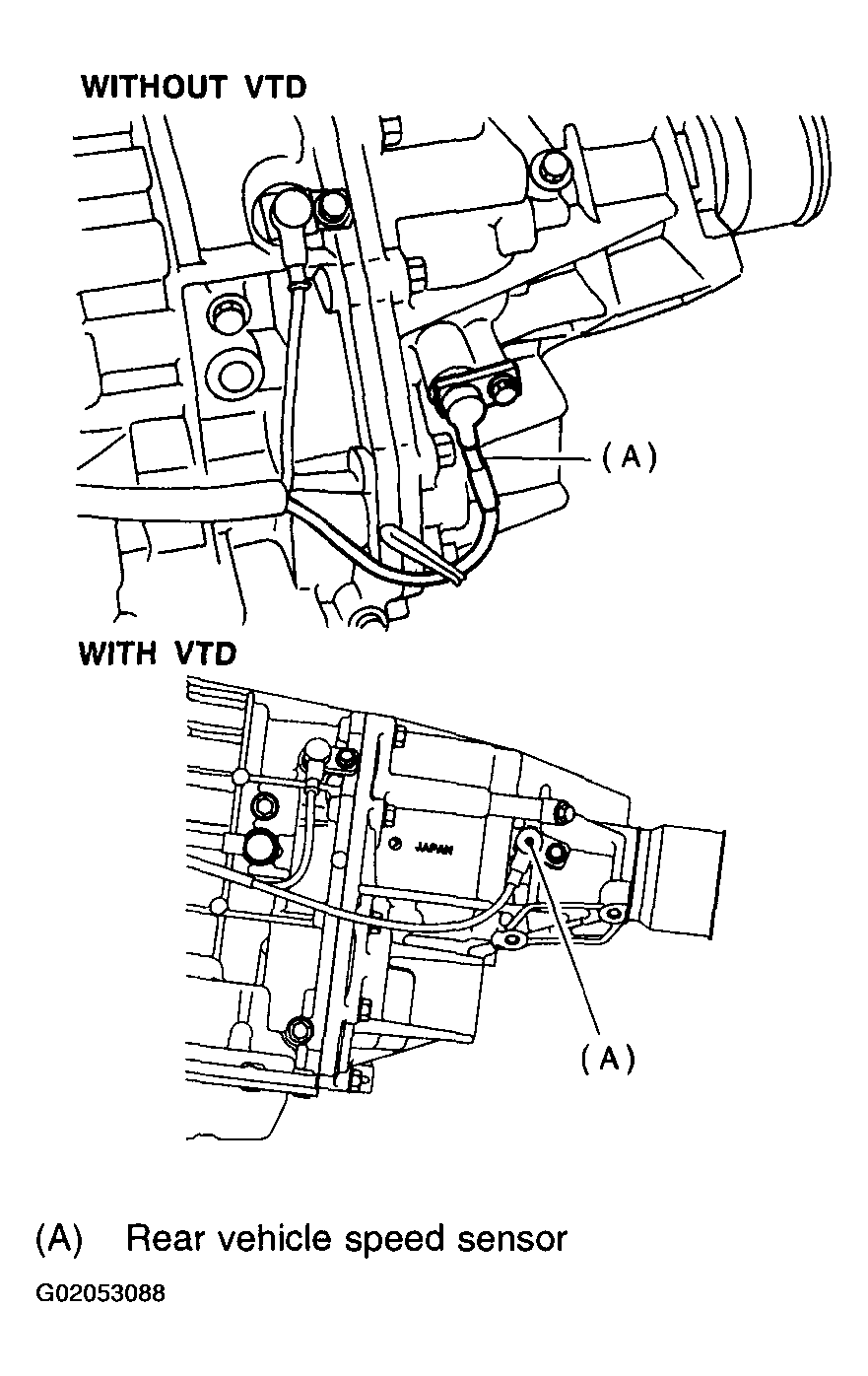

    Fig 1: Removing Rear Vehicle Speed Sensor
    G02053088
  2. Separate transmission case and extension case sections.

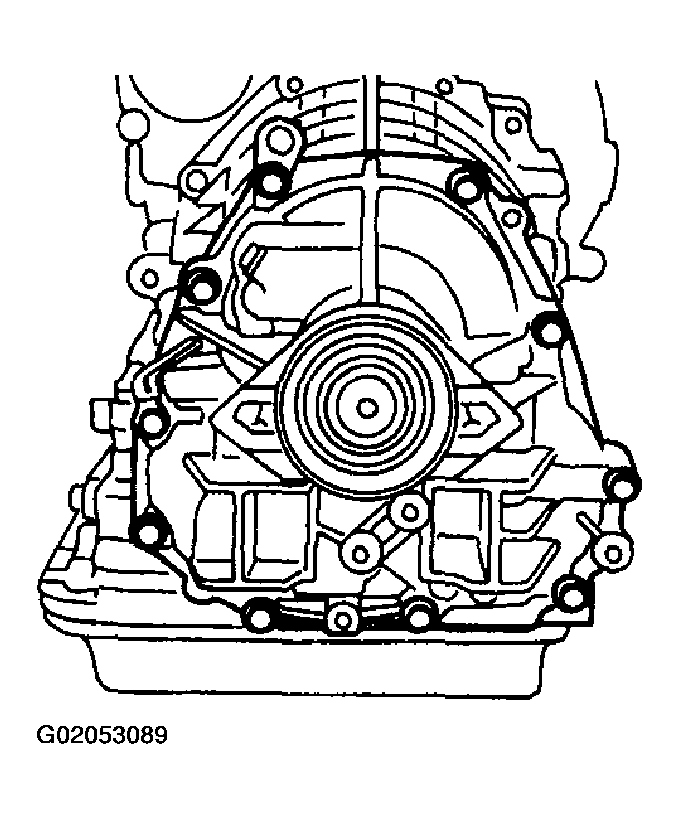

    Fig 2: Separating Transmission & Extension Case
    G02053089
