Torque Converter Clutch And Case

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  18 (1.8, 13.0)
2. T2:  41 (4.2, 30.4)
3. T3:  44 (4.5, 32.5)

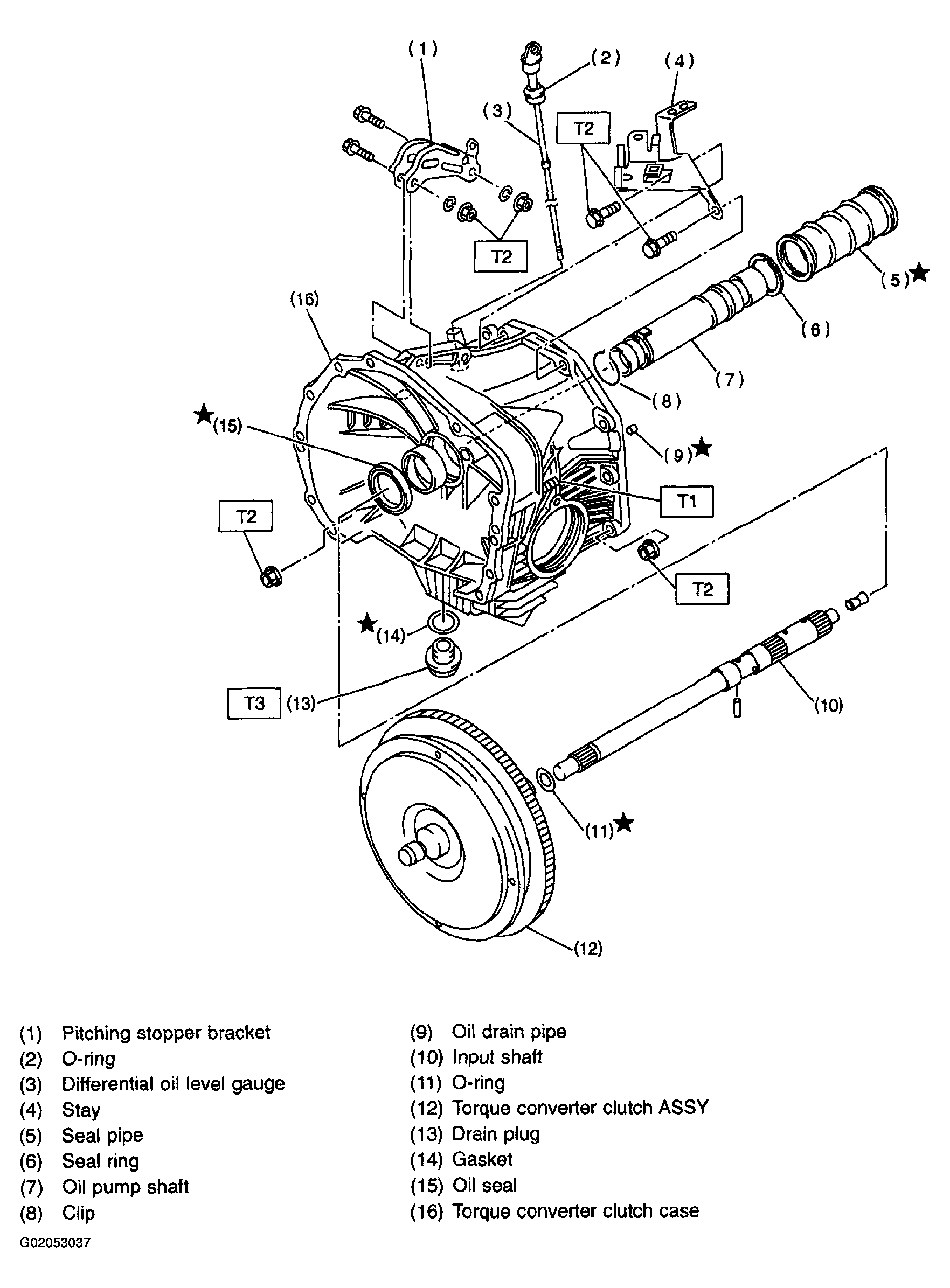

Fig 1: Exploded View Of Torque Converter Clutch & Case Components
