Transfer And Extension Case With VTD

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  7 (0.7, 5.1)
2. T2:  13 (1.3, 9.4)
3. T3:  25 (2.5, 18.1)

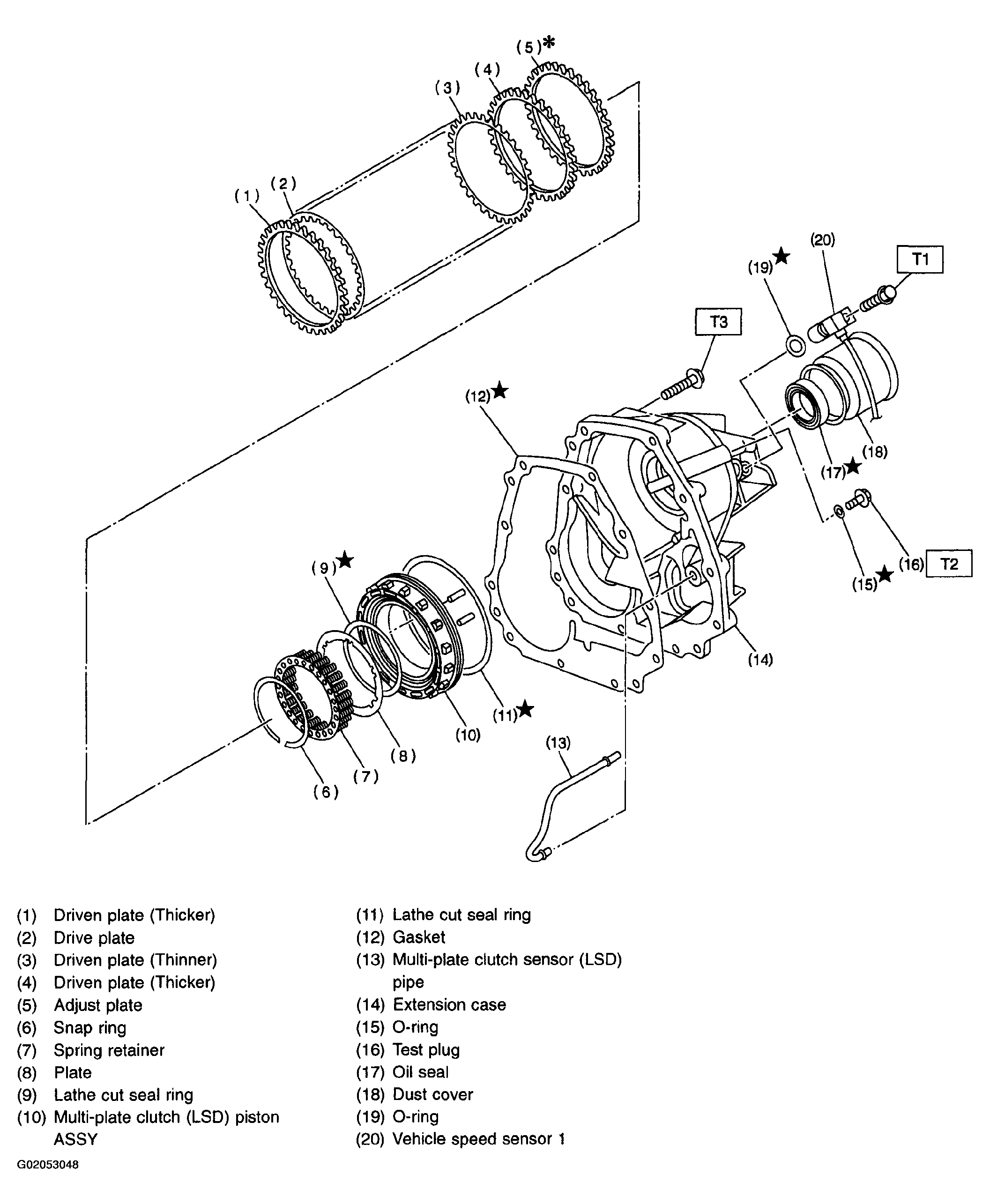

Fig 1: Exploded View Of Transfer & Extension Case - With VTD
