Oil Pump: Disassembly

Remove four seal rings.
CAUTION: Be careful not to damage O-ring.
Remove the oil pump cover.
NOTE: Lightly tap the end of the stator shaft to remove the cover.

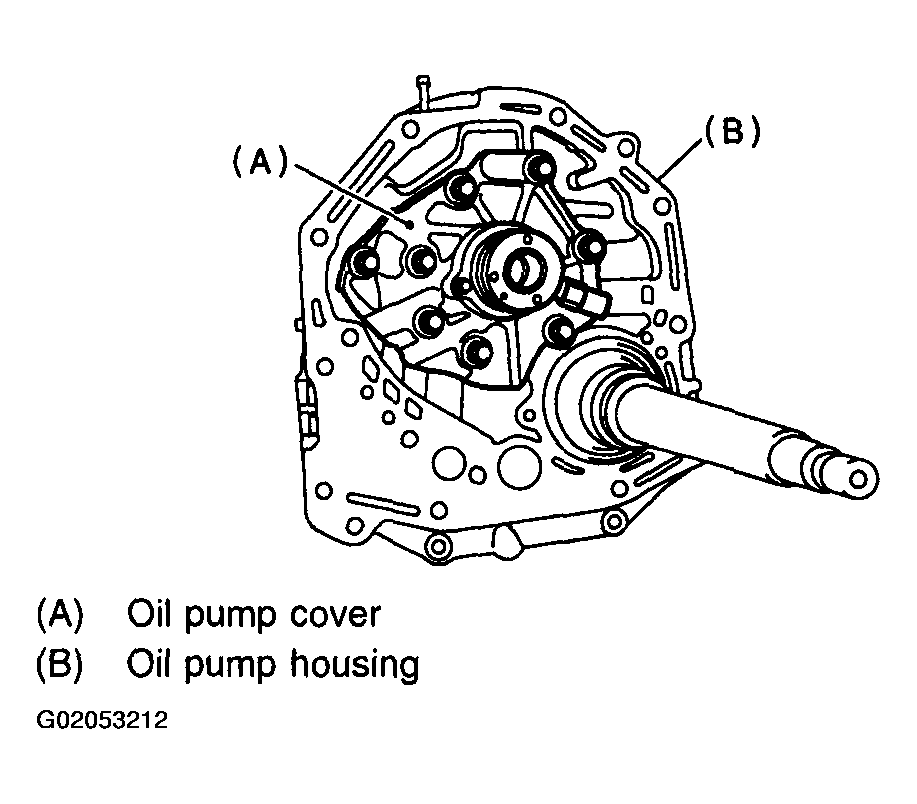

Fig 1: Removing Oil Pump Cover
Remove the inner and outer rotor.

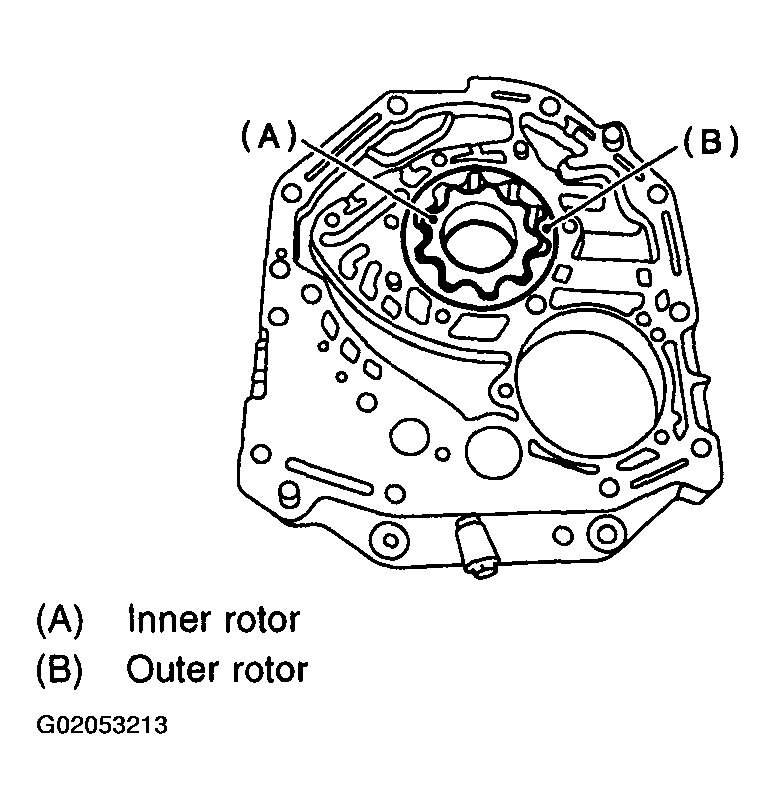

Fig 2: Removing Inner And Outer Rotor
