Transfer Clutch: Installation

Install the transfer clutch assembly to the case.
CAUTION: Be careful not to damage the seal rings.

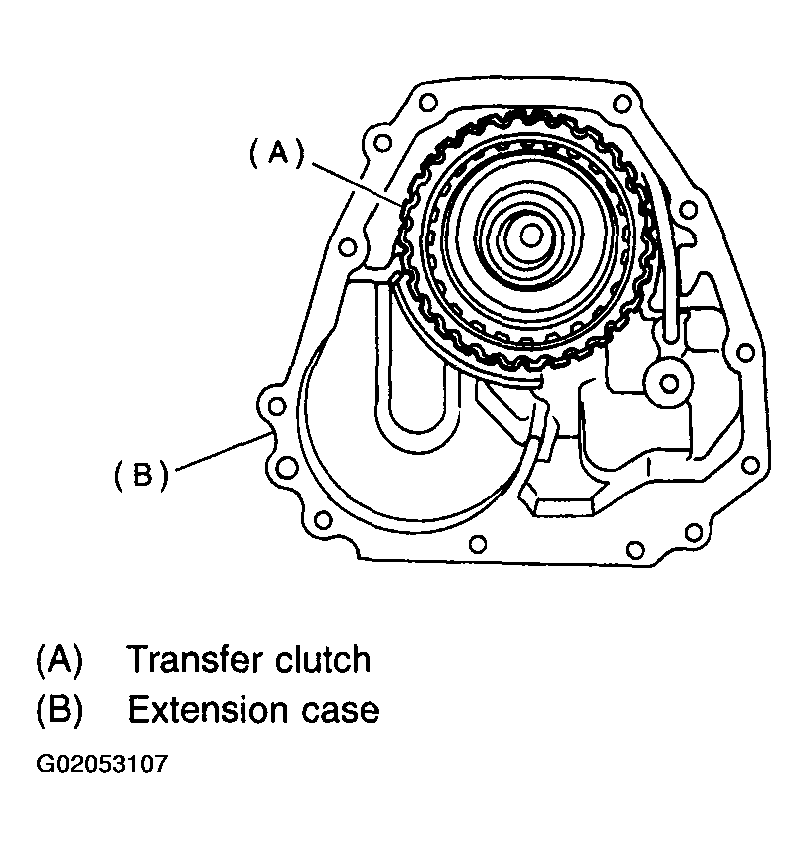

Fig 1: Installing Transfer Clutch Assembly
Tighten bolts to secure the case.
Tightening torque:
1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)

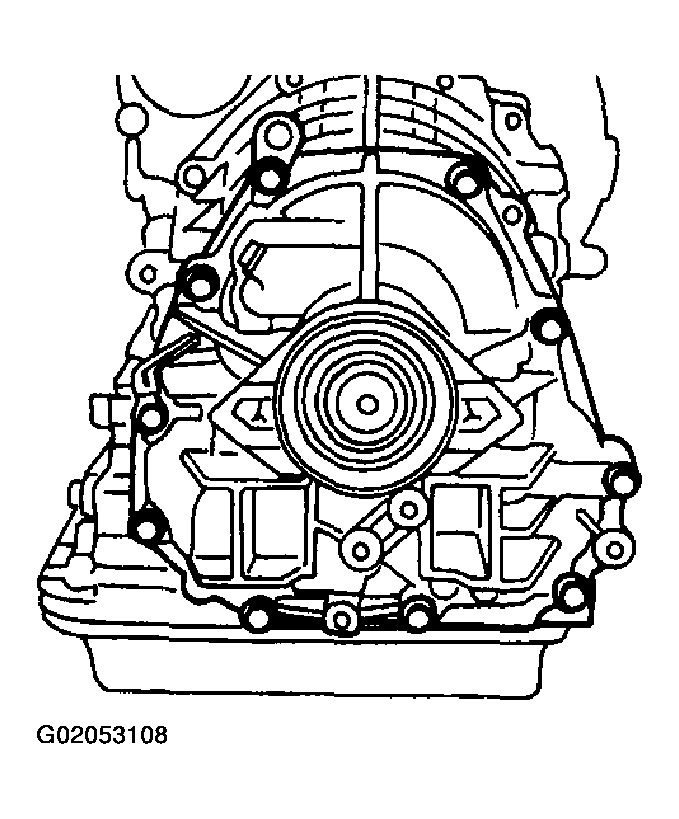

  Fig 2: Tightening Extension Case Bolts
