Transfer Clutch: Removal

  1. Remove rear vehicle speed sensor.

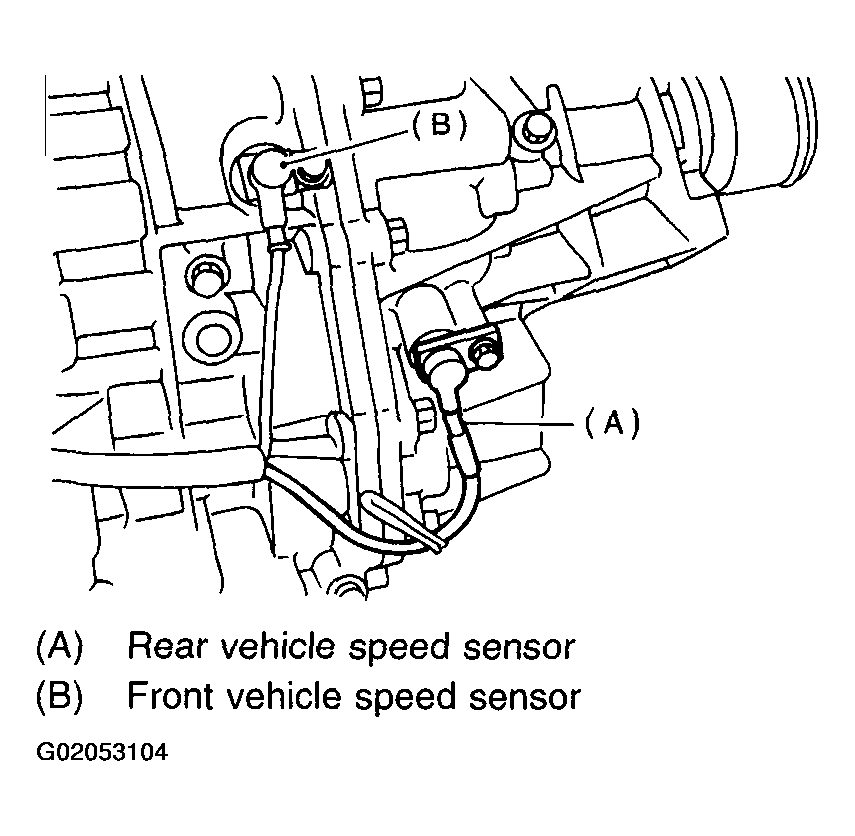

    Fig 1: Removing Rear Vehicle Speed Sensor
    G02053104
  2. Separate transmission case and extension case sections.

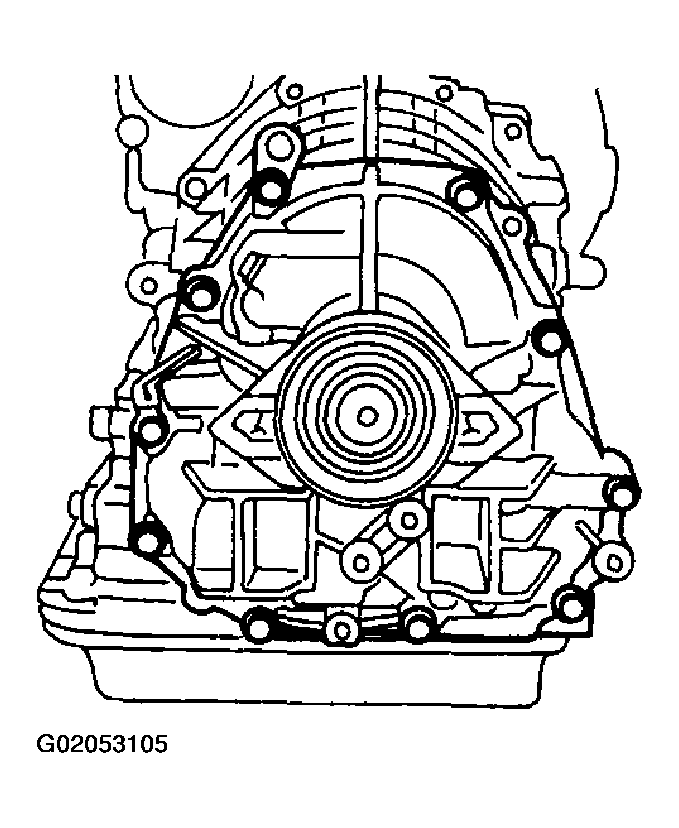

    Fig 2: Separating Transmission & Extension Cases
    G02053105

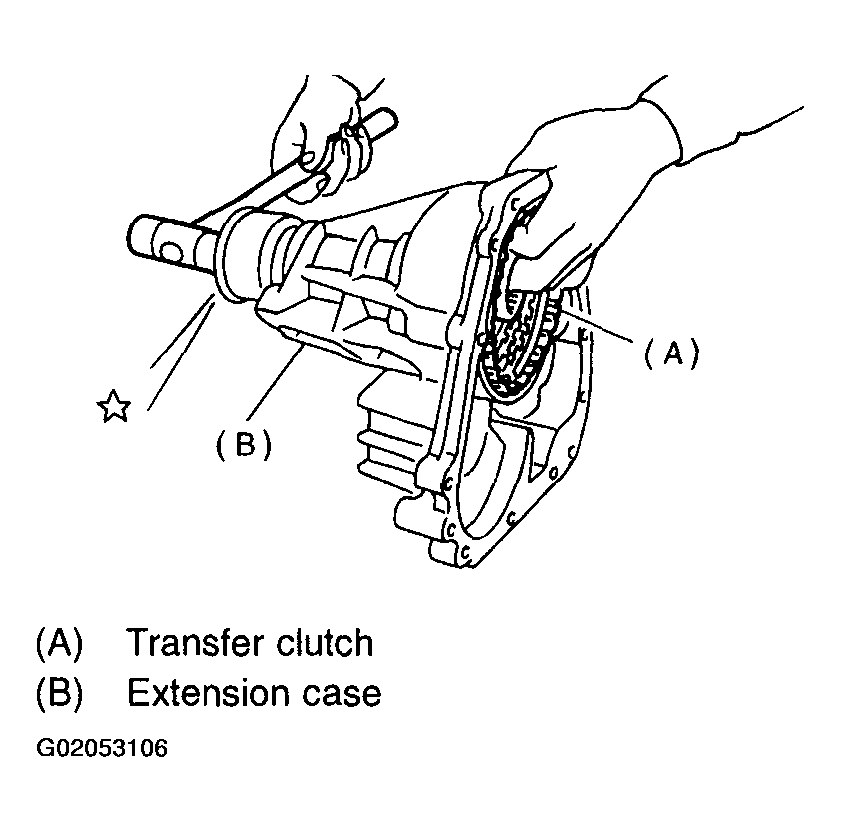

  3. Take out the transfer clutch by lightly tapping the end of the rear drive shaft. See Figure .
    CAUTION: Be careful not to damage the oil seal in the extension.
