Home › Subaru › 2001 › Outback Base, Standard › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Braking System (Diagnostics) › Diagnostics Chart with Subaru Select Monitor › Communication For Initializing Impossible › Wiring Diagram

Communication For Initializing Impossible: Wiring Diagram

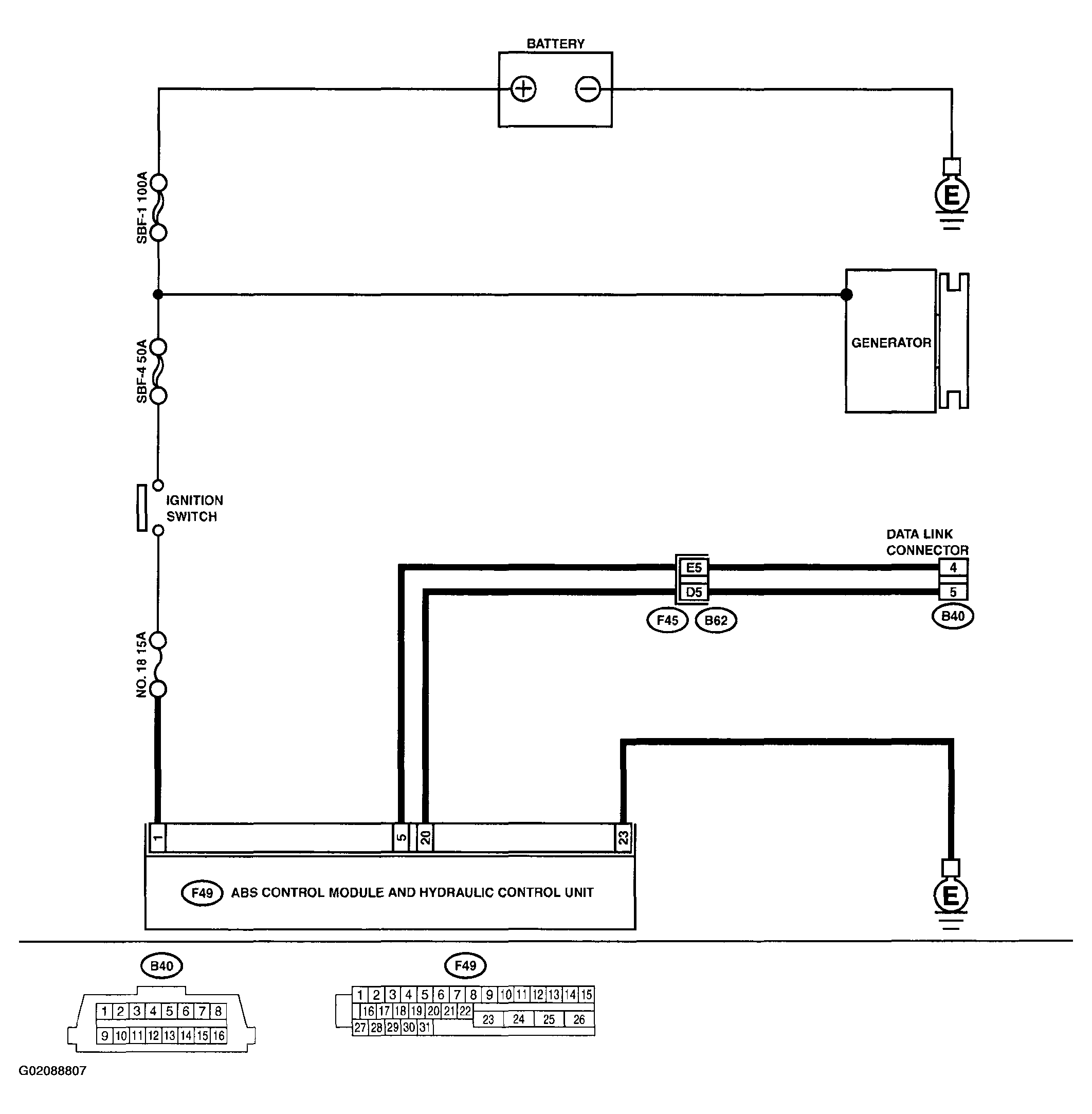

Fig 1: Communication For Initializing Impossible - Wiring Diagram
G02088807
