Code 74: Abnormal Pressure Sensor
›
Diagnostic Chart
Diagnostic Chart

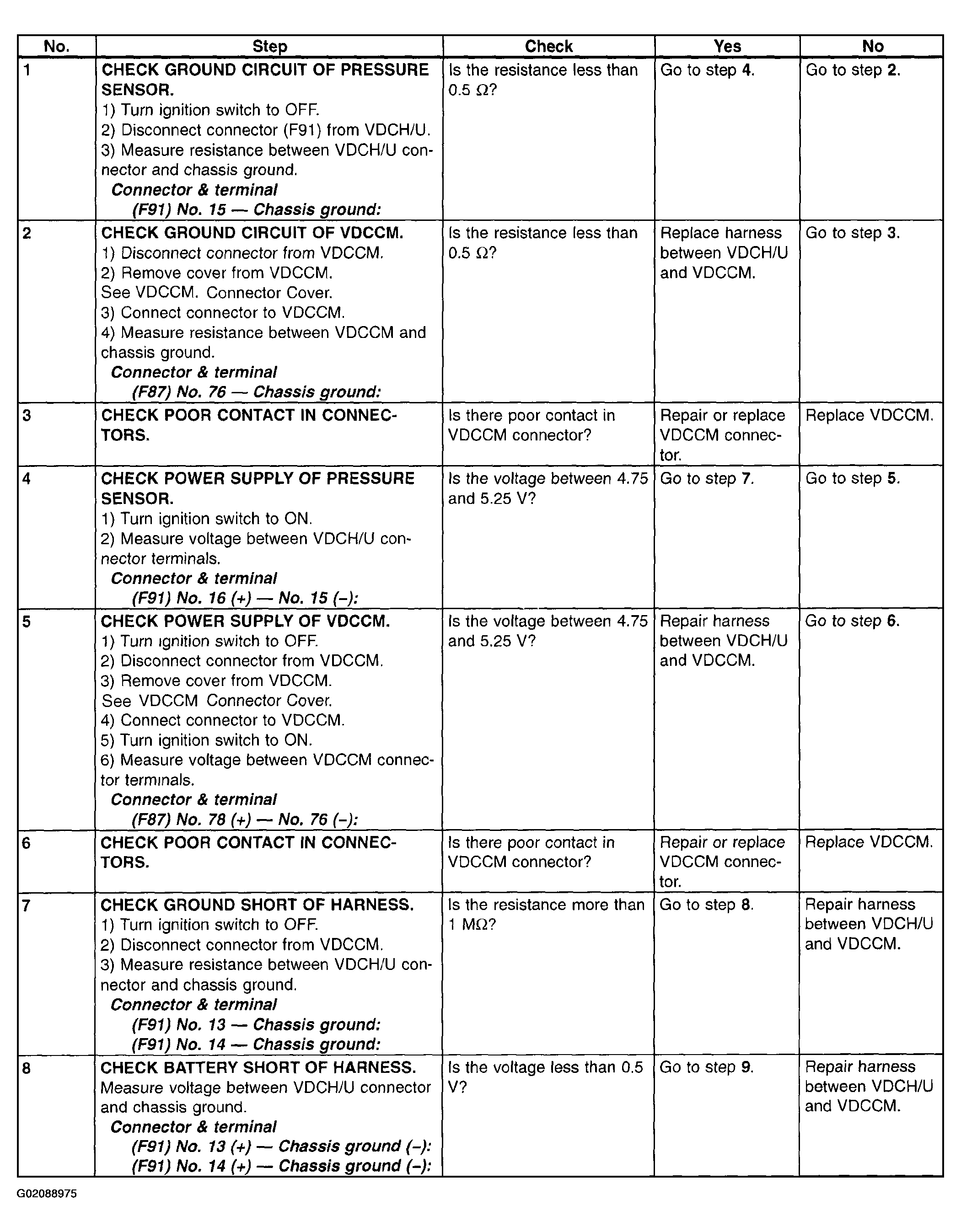

Fig 1: Diagnostic Chart - Trouble Code 74 - With Diagnostic Connector (1 Of 2)

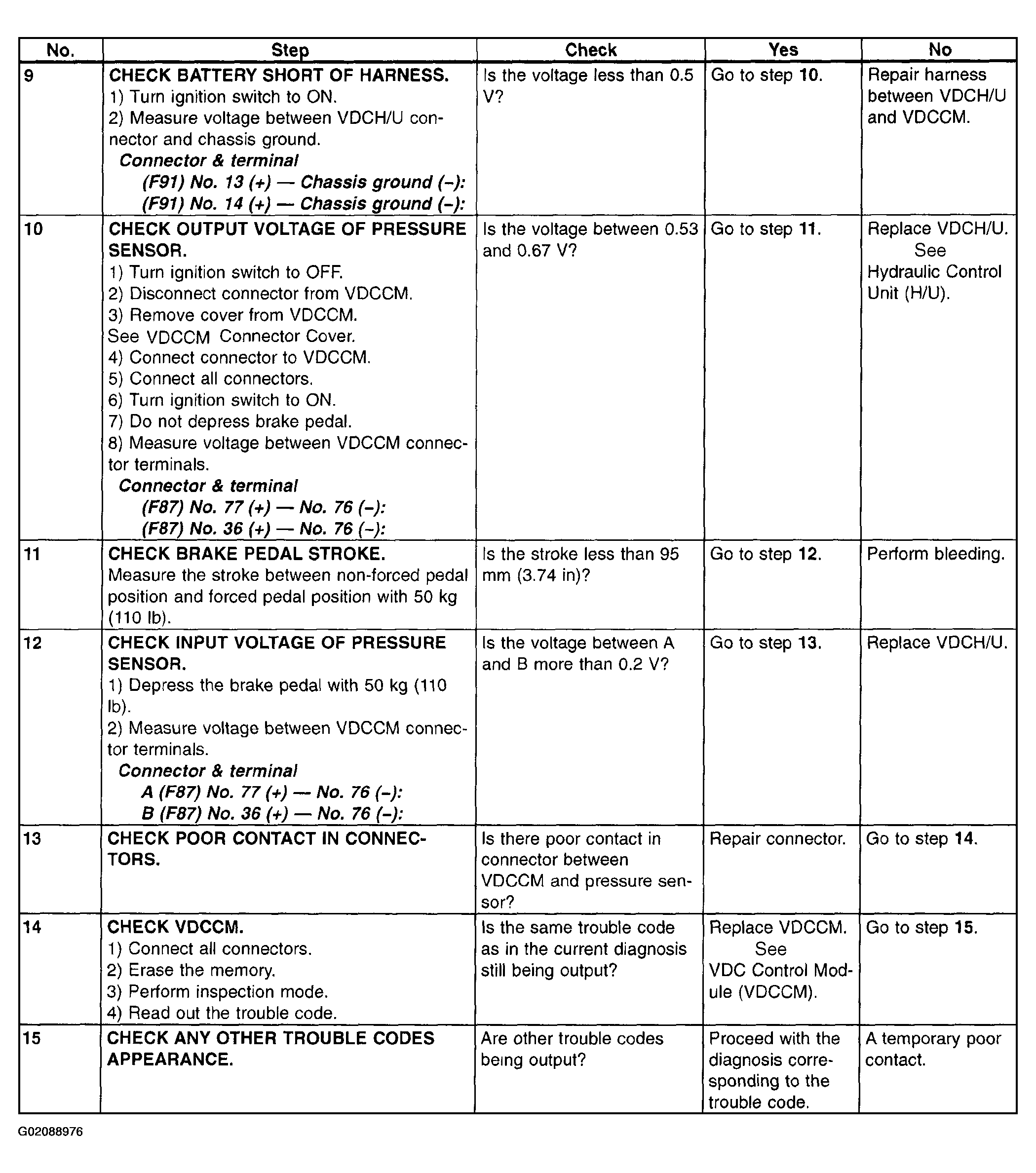

Fig 2: Diagnostic Chart - Trouble Code 74 - With Diagnostic Connector (2 Of 2)
