Trouble Code 74 Pressure Sensor 2 Offset Is Too Big (Secondary Pressure Sensor)
›
Diagnostic Chart
Diagnostic Chart

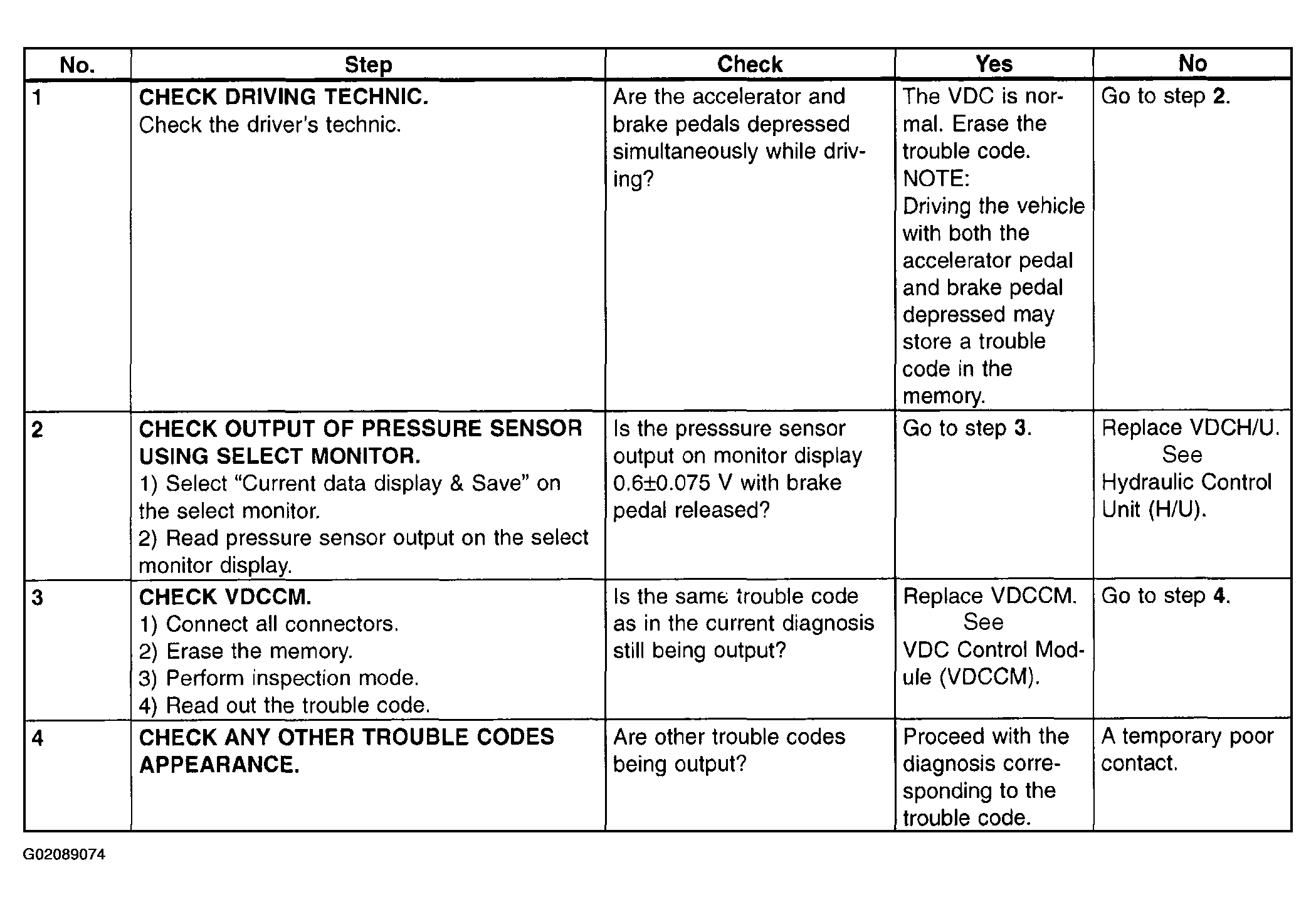

Fig 1: Diagnostic Chart - Trouble Code 74 - With Select Monitor (Pressure Sensor 1 or 2 Offset Is Too Big)
