Hydraulic Unit (H/U)

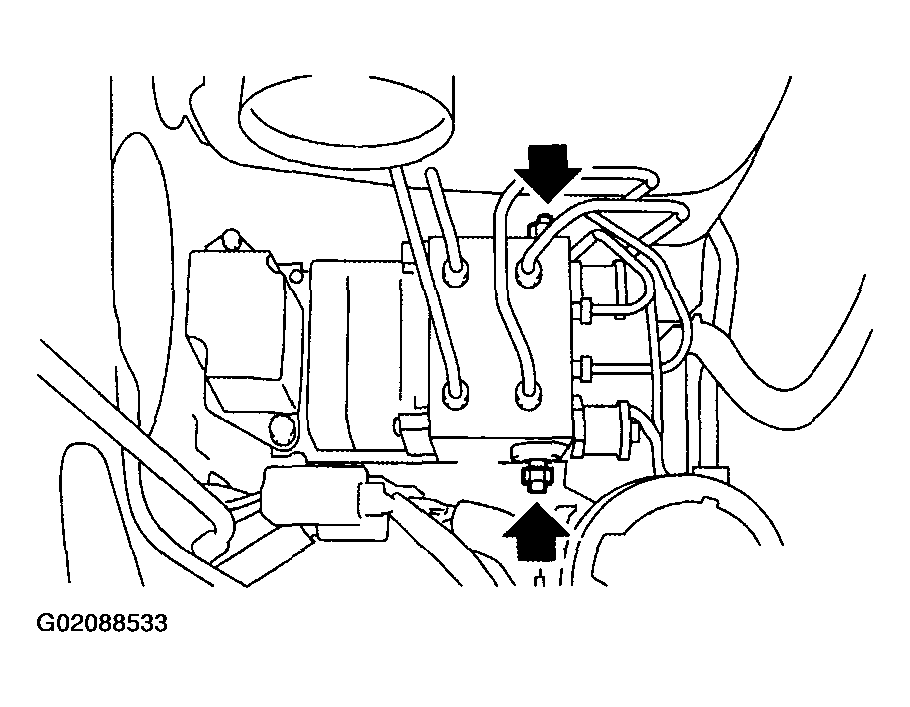

- Install hydraulic unit.
Tightening torque:
- 18 N.m (1.8 kgf-m, 13.0 ft-lb)
- Connect hydraulic unit ground cable to body.
Tightening torque:
- 33 N.m (3.4 kgf-m, 25 ft-lb)
- Connect brake pipes to their correct hydraulic unit connections.

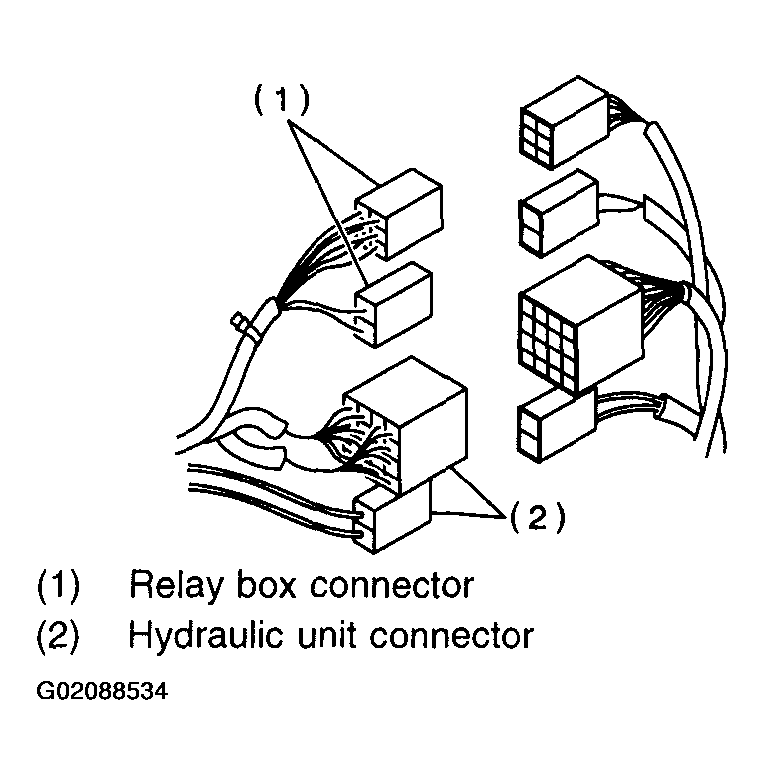

- Secure hydraulic unit connector to connector bracket.CAUTION: Align connector with mating receptacle.
- Connect connector to hydraulic unit.
- Install air intake duct.
- Connect ground cable to battery.
- Bleed air from the brake system.
