Yaw Rate and Lateral G SENSOR
›
Inspection
›
Lateral G Sensor Signal
Lateral G Sensor Signal

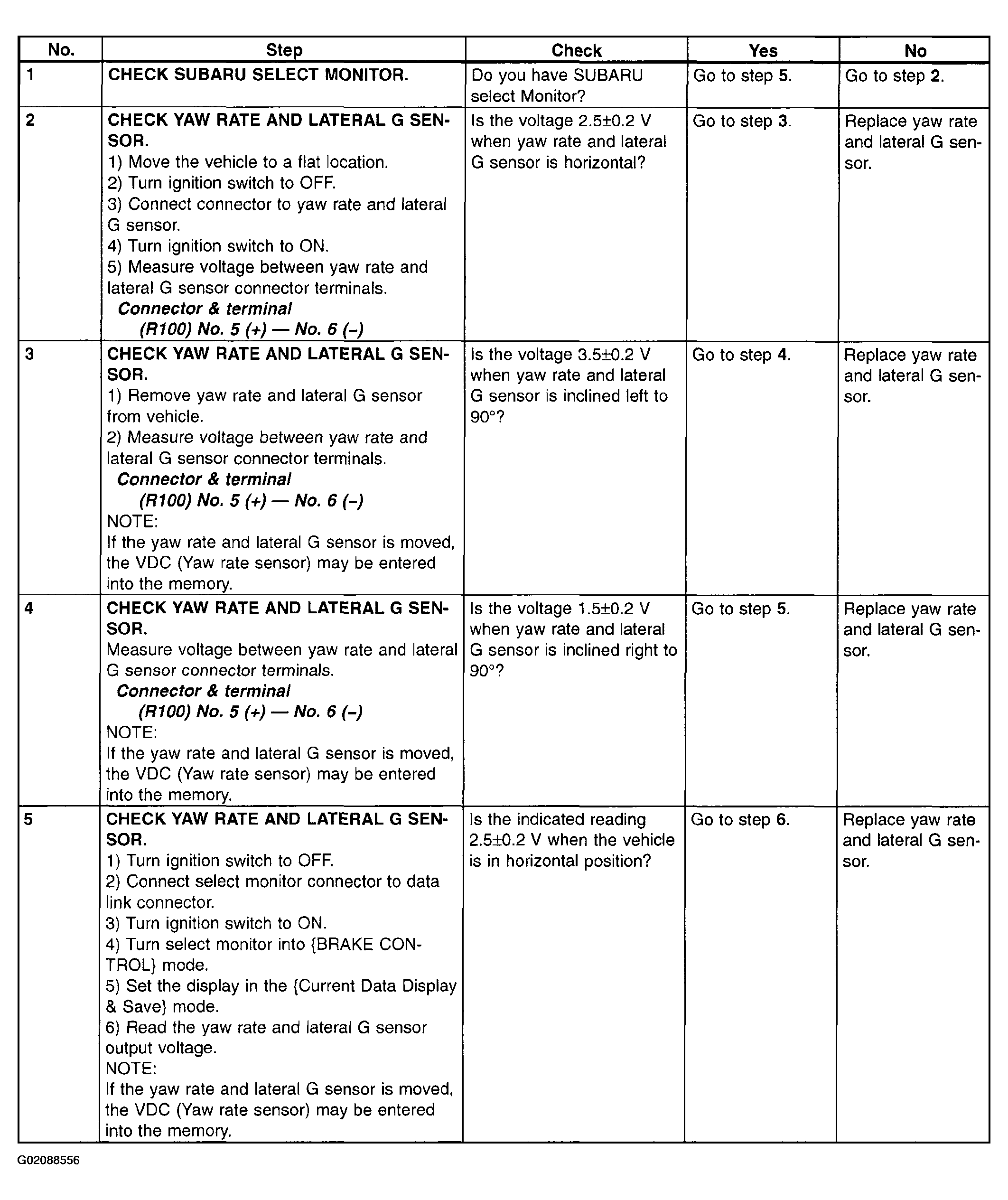

Fig 1: Lateral G Sensor Signal Test Chart (1 Of 2)

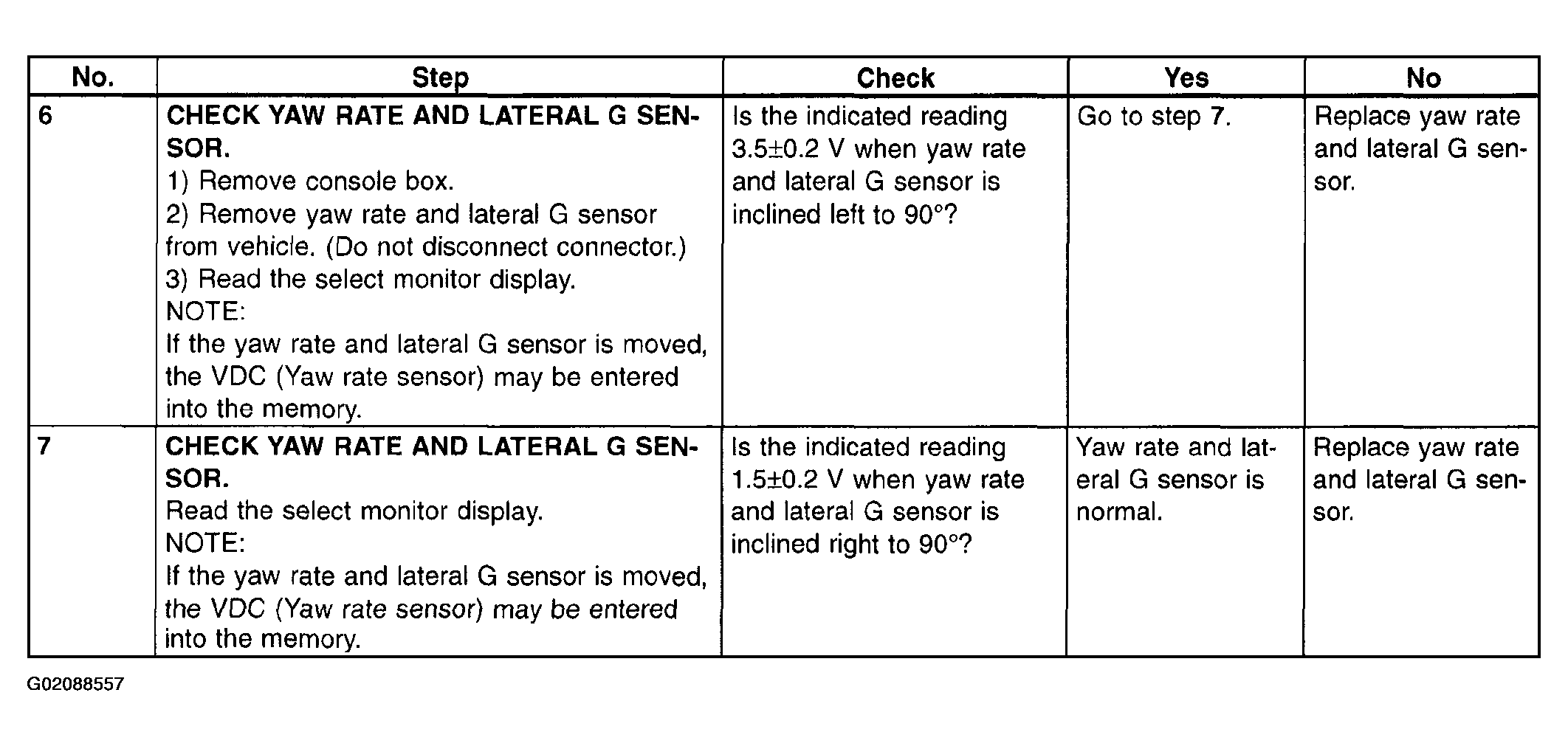

Fig 2: Lateral G Sensor Signal Test Chart (2 Of 2)
