Yaw Rate and Lateral G SENSOR: Removal

Disconnect battery ground cable.

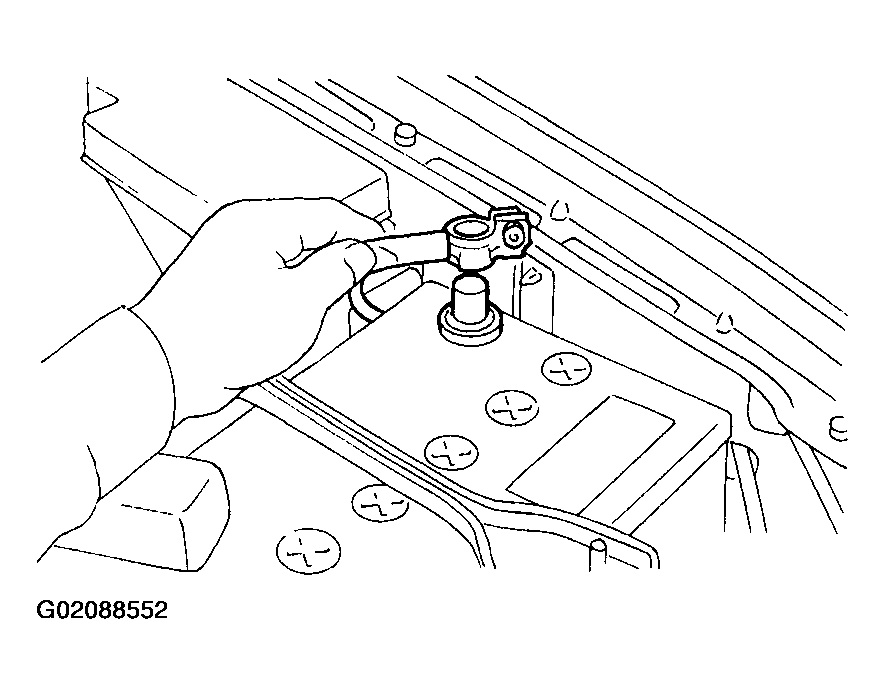

Fig 1: Disconnecting Battery Ground Cable
Remove console cover. See CONSOLE BOX .
Disconnect connector from yaw rate and lateral G sensor.
Remove yaw rate and lateral G sensor.
CAUTION: Do not drop or bump yaw rate and lateral G sensor.

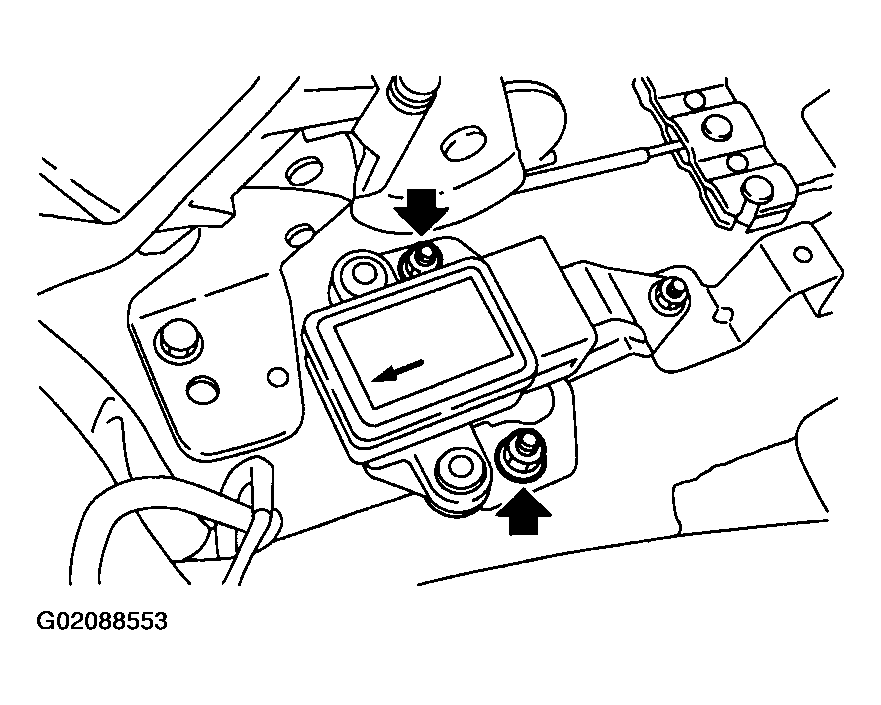

Fig 2: Removing Yaw Rate & Lateral G Sensor
Remove bracket from body.

Fig 3: Removing Bracket
