Removal (2.5L)

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable

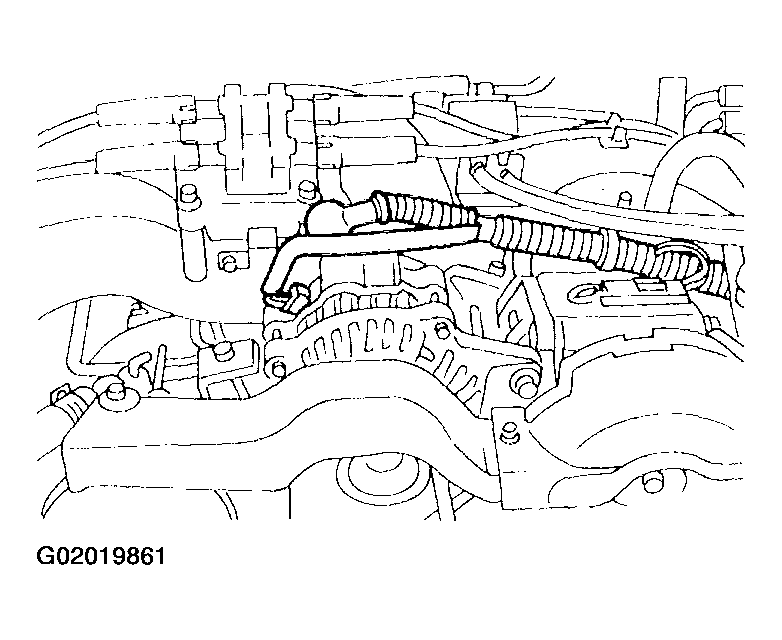

Disconnect connector and terminal from generator.

Fig 2: Disconnecting Connector & Terminal From Generator

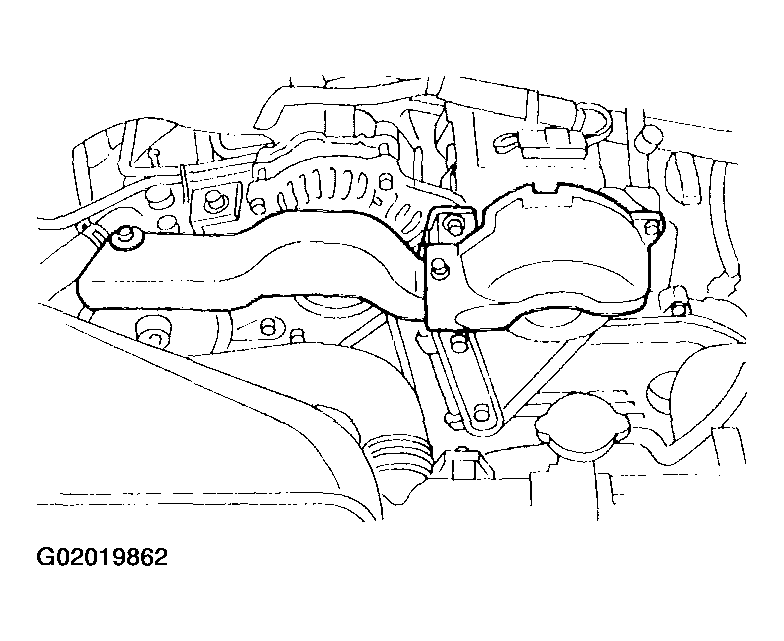

Remove V-belt cover.

Fig 3: Removing V-Belt Cover

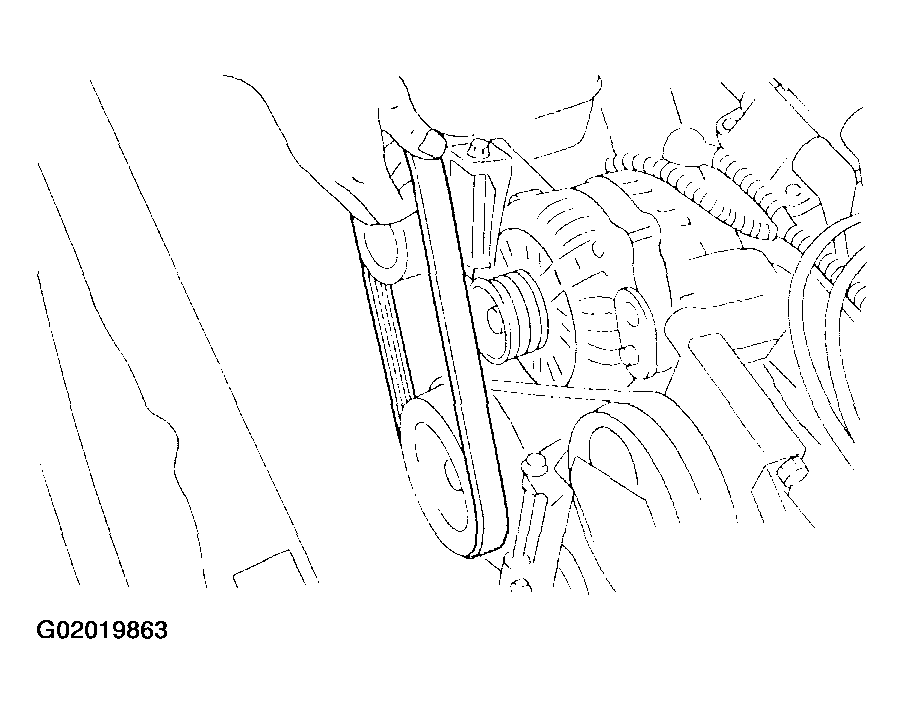

Remove front side V-belt.

Fig 4: Removing Front Side V-Belt

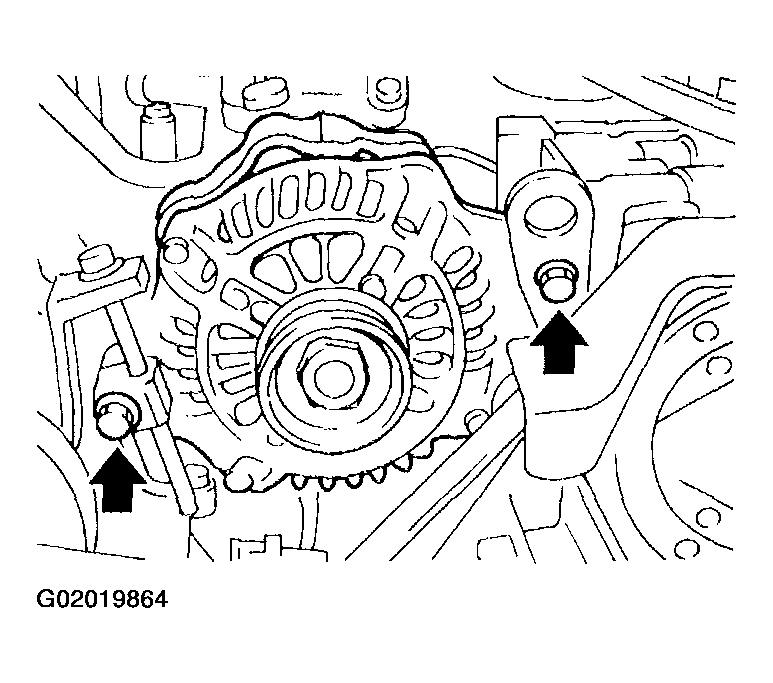

Remove bolts which install generator onto bracket.

Fig 5: Removing Generator Bolts
