Blower Resistor: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box. See REMOVAL , Glove Box.
  2. Disconnect the blower resistor connector.
  3. Loosen two screws to remove the blower resistor.

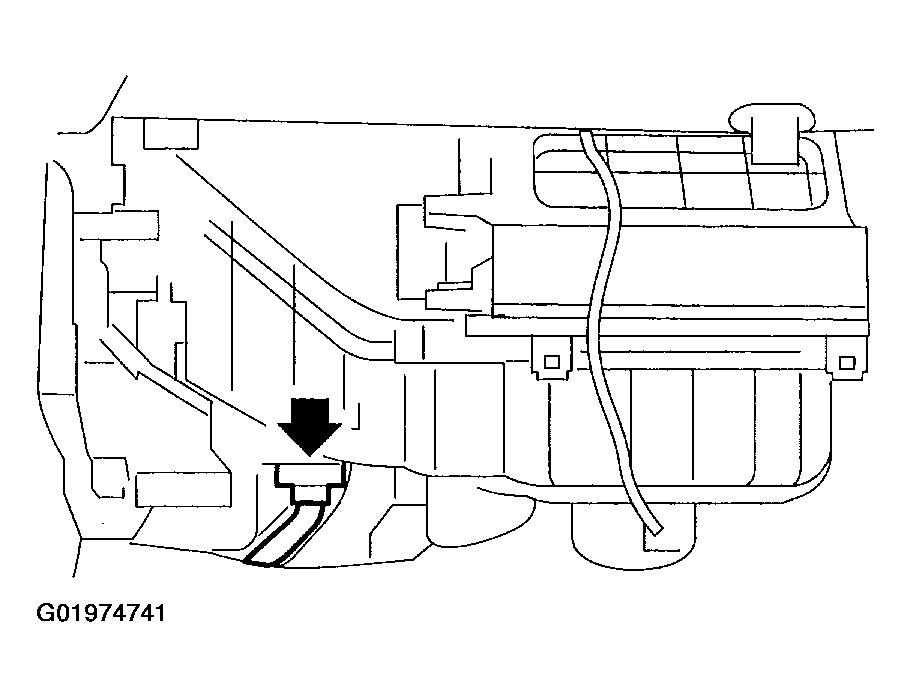

    Fig 1: Loosening Two Screws To Remove Blower Resistor
    G01974741Courtesy of SUBARU OF AMERICA, INC.
