Coolant Filler Tank: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
Tightening torque:
1. T1: 19 N.m (1.9 kgf.m, 13.7 ft.lb)
2. T2: 21 N.m (2.1 kgf.m, 15.2 ft.lb)

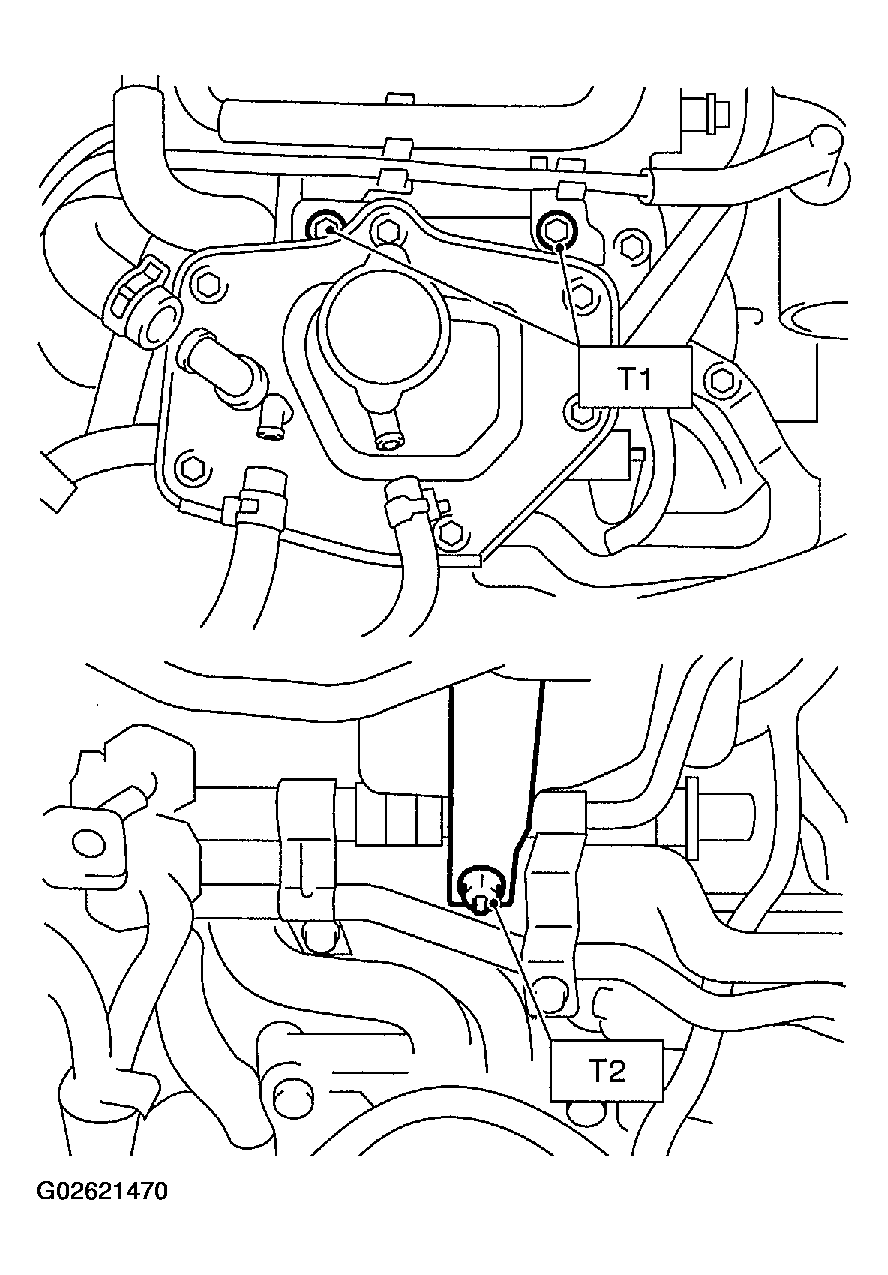

Fig 1: Installing Bolts/Nut Which Installs Coolant Filler Tank
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant, see FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
