Radiator Main Fan And Fan Motor: Disassembly

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clip which holds motor connector onto the shroud.

Fig 1: Removing Clip Holding Motor Connector Onto Shroud
Courtesy of SUBARU OF AMERICA, INC.
Remove the nut which holds fan itself onto the fan motor and shroud assembly.

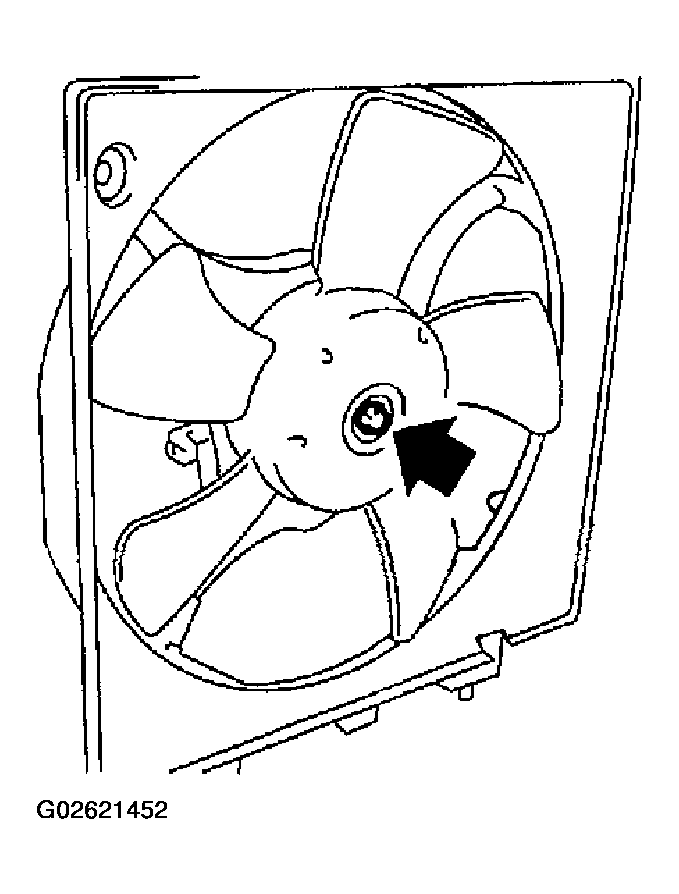

Fig 2: Removing Nut Holding Fan Itself Onto Fan Motor & Shroud Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install fan motor onto the shroud.

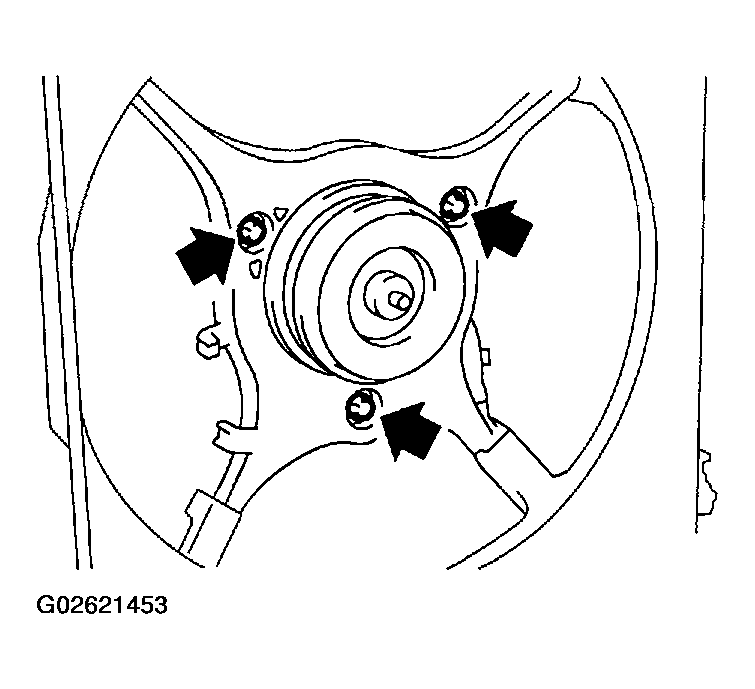

Fig 3: Removing Bolts Which Installs Fan Motor Onto Shroud
Courtesy of SUBARU OF AMERICA, INC.
