Radiator Main Fan And Fan Motor: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

NOTE: When the main fan motor assembly cannot be installed as is, loosen the sub fan motor assembly securing bolts to install it.

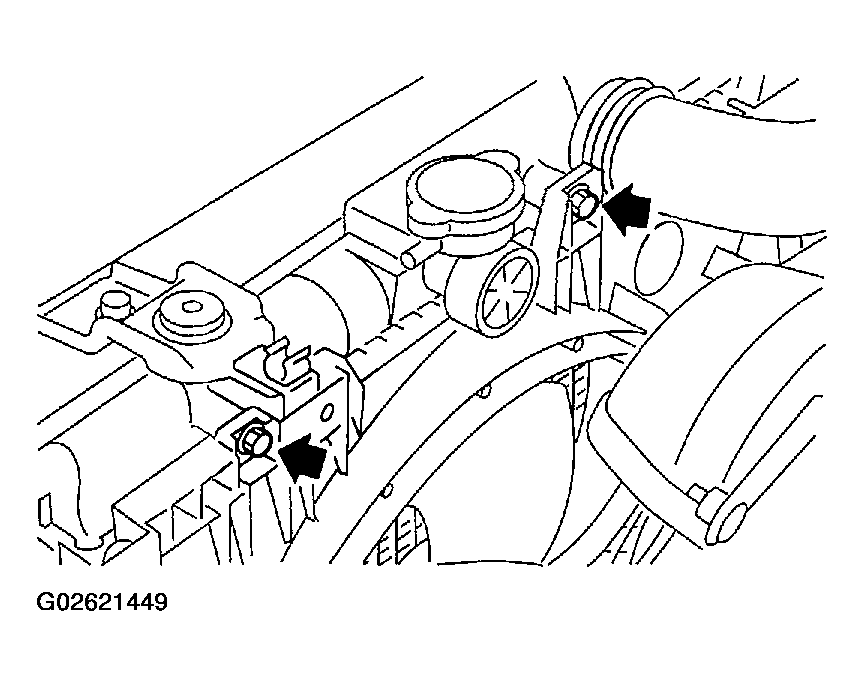

Fig 1: Installing Fan Motor Assembly To Radiator

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 4.9 N.m (0.50 kgf.m, 3.6 ft.lb)

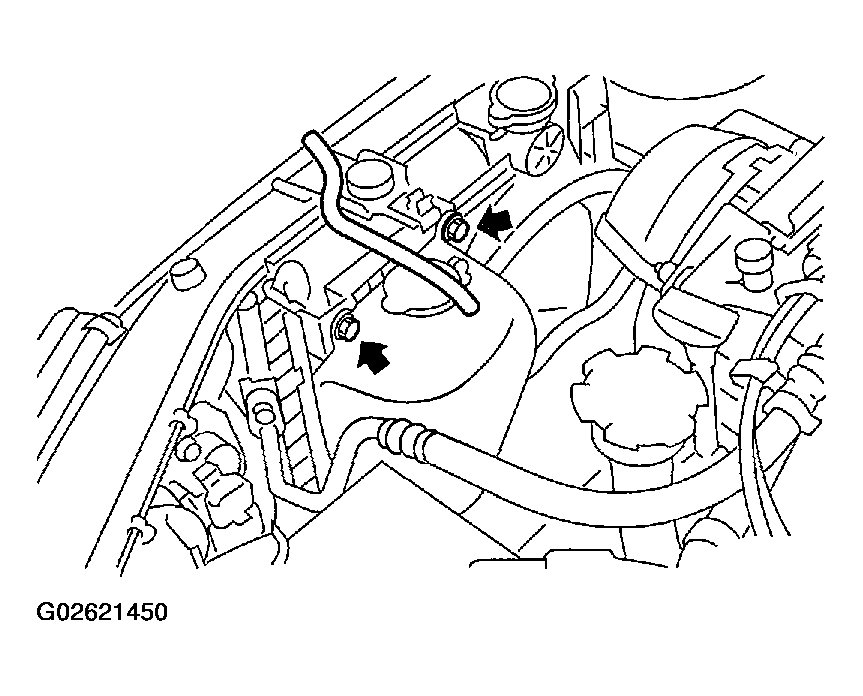

Fig 2: Installing Reservoir Tank

Courtesy of SUBARU OF AMERICA, INC.
