Radiator Sub Fan And Fan Motor: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

Tightening torque: 4.9 N.m (0.50 kgf.m, 3.6 ft.lb)

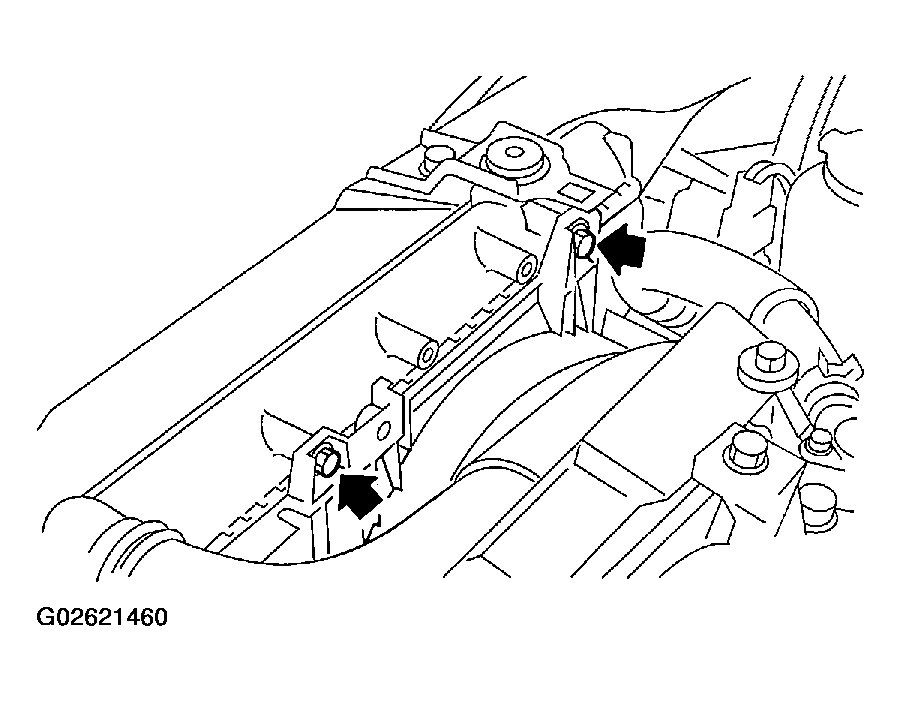

Fig 1: Installing Bolts Holding Sub Fan Shroud To Radiator

Courtesy of SUBARU OF AMERICA, INC.
