Section 114 (Engine Cooling System): Thermostat: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Lift-up the vehicle.
Remove the under cover.
Drain engine coolant completely. See DRAINING OF ENGINE COOLANT , Replacement, Engine Coolant.

Fig 1: Draining Coolant Systems
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator outlet hose from the thermostat cover.
- NON-TURBO MODEL

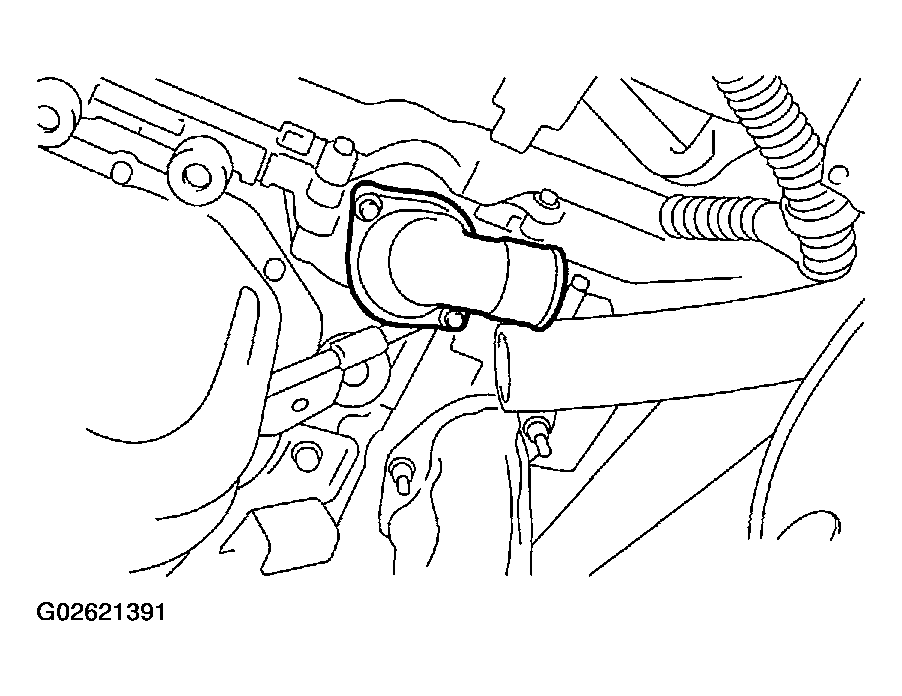

Fig 2: Disconnecting Radiator Outlet Hose From Thermostat Cover (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator outlet hose.
- TURBO MODEL

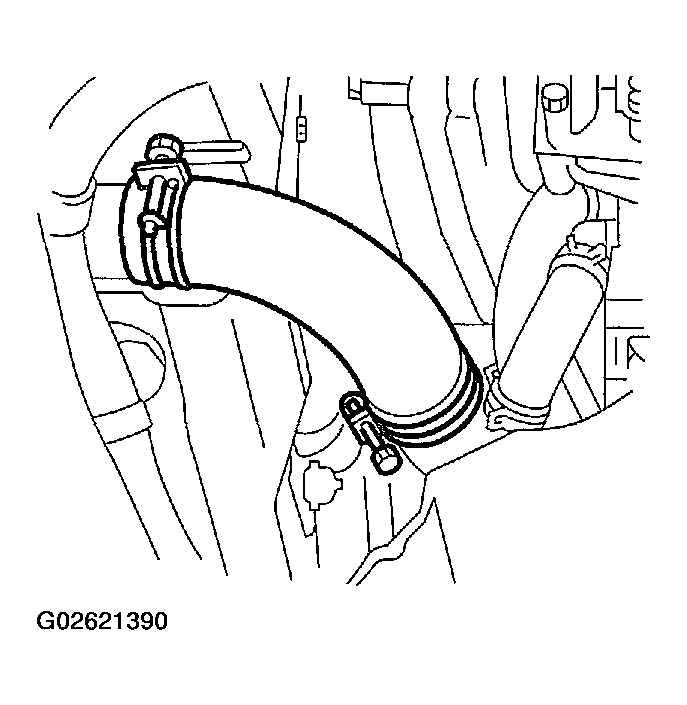

Fig 3: Disconnecting Radiator Outlet Hose (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove the thermostat cover and gasket, and pull out the thermostat.

Fig 4: Removing Thermostat Cover & Gasket
Courtesy of SUBARU OF AMERICA, INC.
