Fuel Pump Controller: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.

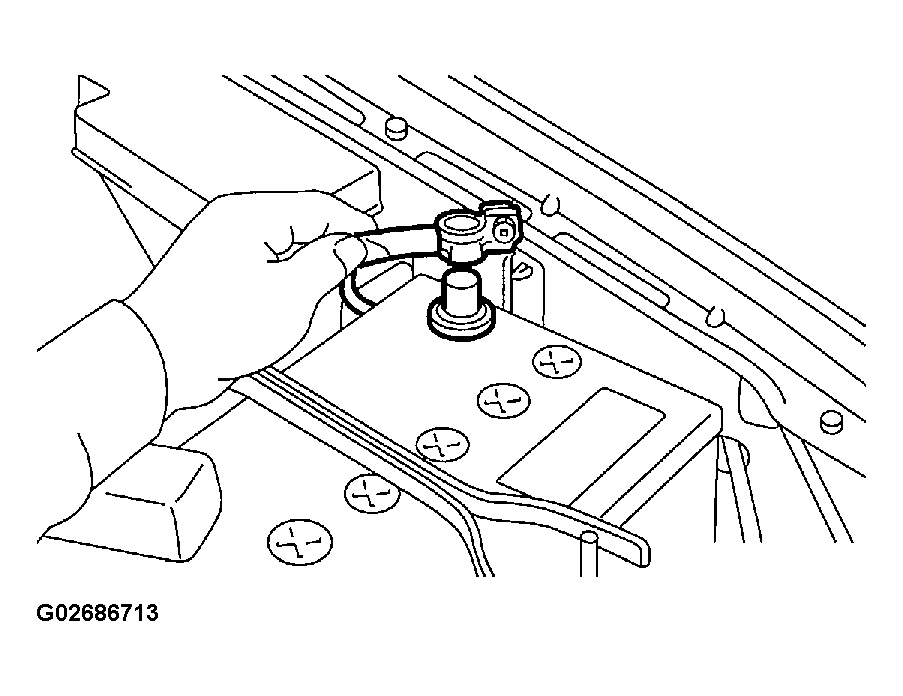

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear quarter trim, see REMOVAL , Rear Quarter Trim.
Disconnect the connector from the fuel pump control unit.

Fig 2: Disconnecting Connector From Fuel Pump Control Unit
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pump control unit.

Fig 3: Removing Fuel Pump Control Unit
Courtesy of SUBARU OF AMERICA, INC.
