Fuel Sub Level Sensor: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

Tightening torque: 4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

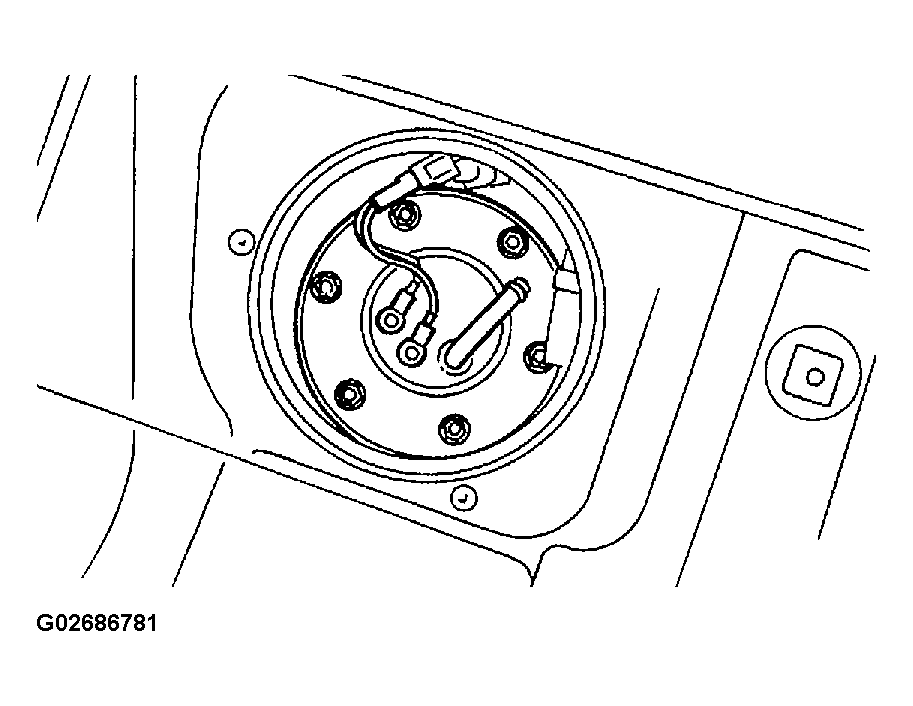

Fig 1: Installing Bolts Which Installs Fuel Sub Meter Unit Into Fuel Tank

Courtesy of SUBARU OF AMERICA, INC.
