Differential Gear Oil: Inspection
WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
- Park the vehicle on a level surface.

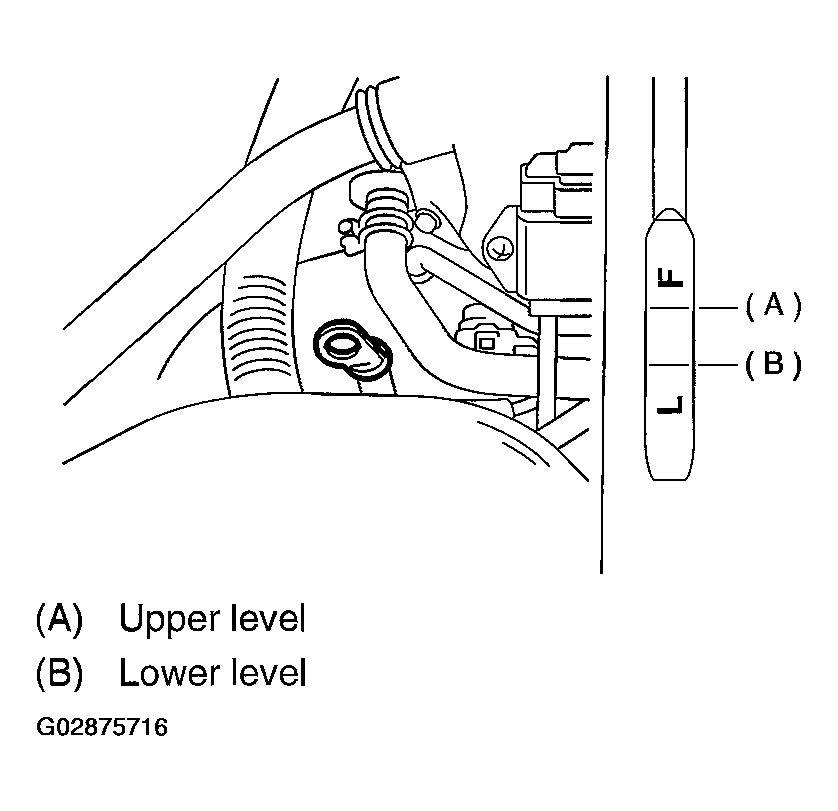

- Remove the oil level gauge and wipe it clean.
- Reinsert the level gauge all the way. Be sure that the level gauge is correctly inserted and in the proper orientation.
- Remove it again and note the reading. If the differential gear oil level is below the "L" line, add oil to bring the level up to the "F" line.
- To prevent overfilling the differential gear oil, do not add oil above the "F" line.
