Without SUBARU Select Monitor

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. After calling up a diagnostic trouble code (DTC), disconnect diagnosis connector terminal 8 from diagnosis terminal.

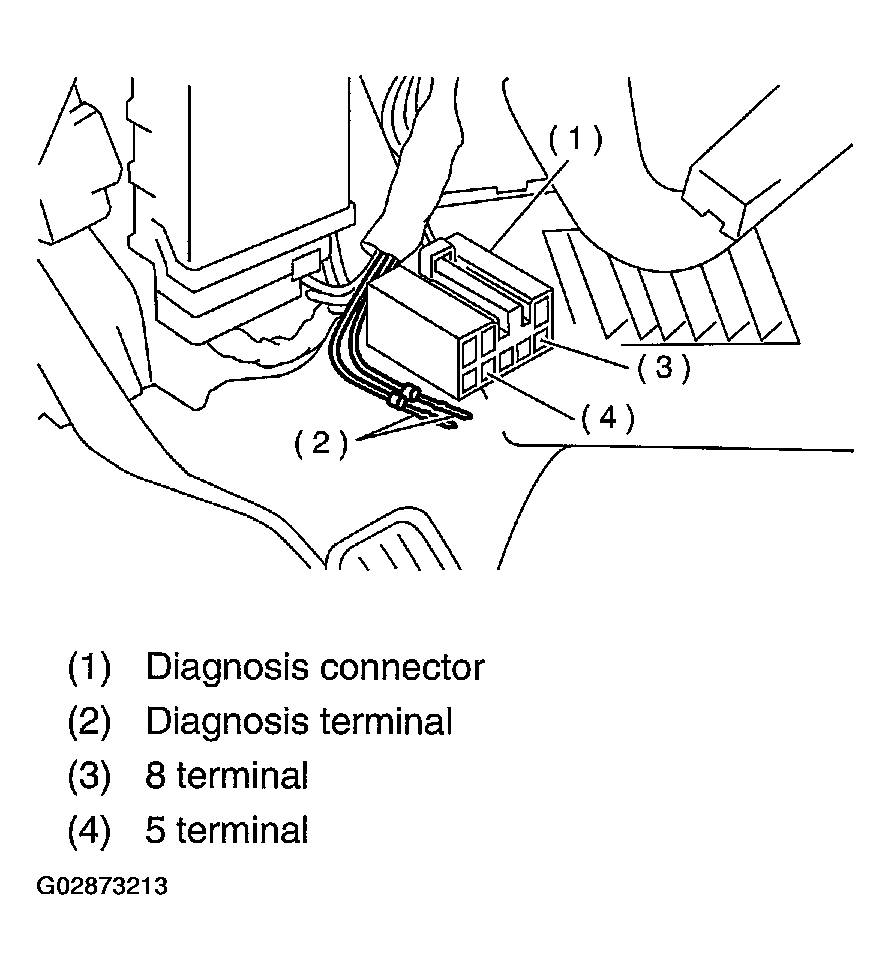

    Fig 1: Identifying Diagnosis Connector
    G02873213Courtesy of SUBARU OF AMERICA, INC.
  2. Repeat 3 times within approximately 12 seconds; connecting and disconnecting terminal 8 and diagnosis terminal for at least 0.2 seconds each time.

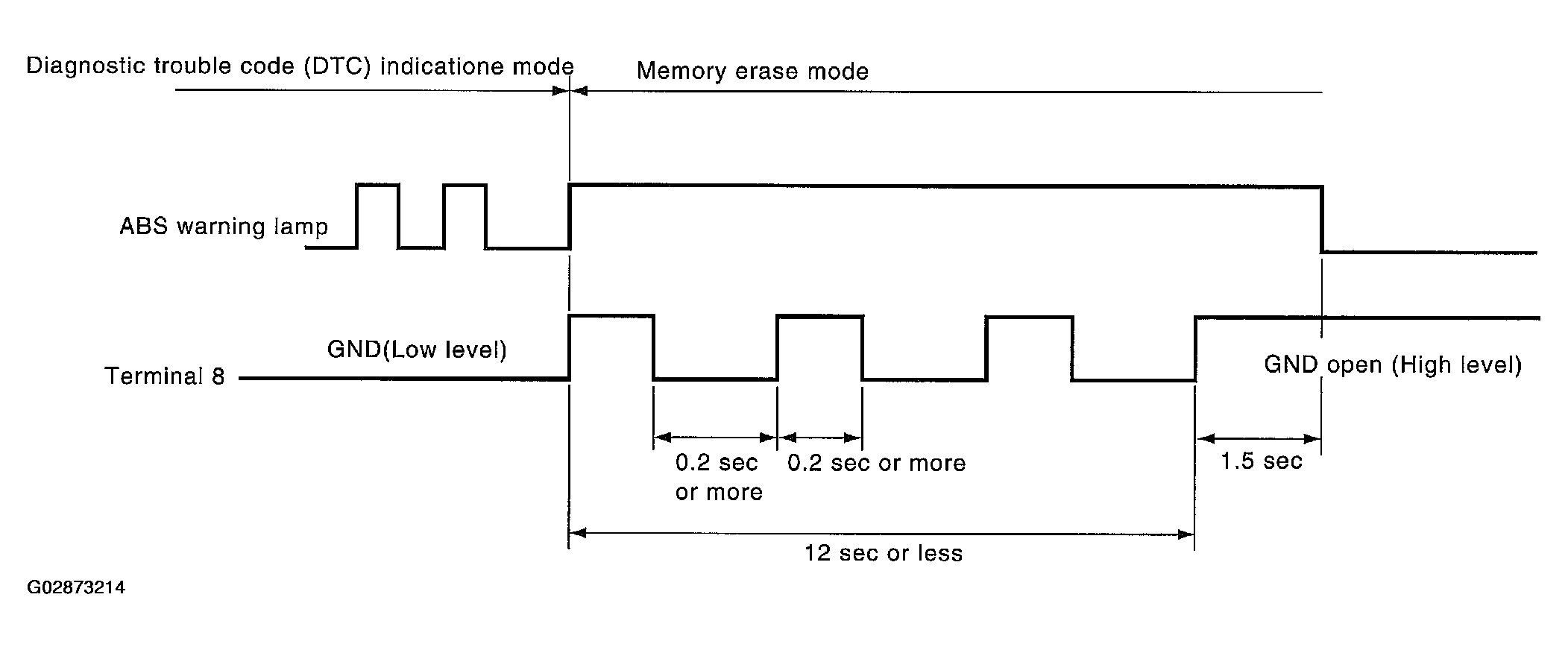

    Fig 2: Identifying Clear Memory Mode Operation
    G02873214Courtesy of SUBARU OF AMERICA, INC.
NOTE: After diagnostics is completed, make sure to clear memory. Make sure only start code (11) is shown after memory is cleared.
