Basic Diagnostic Procedure: Procedure

WARNING: This page is about a different car, the 2003 Subaru Outback and 2003 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

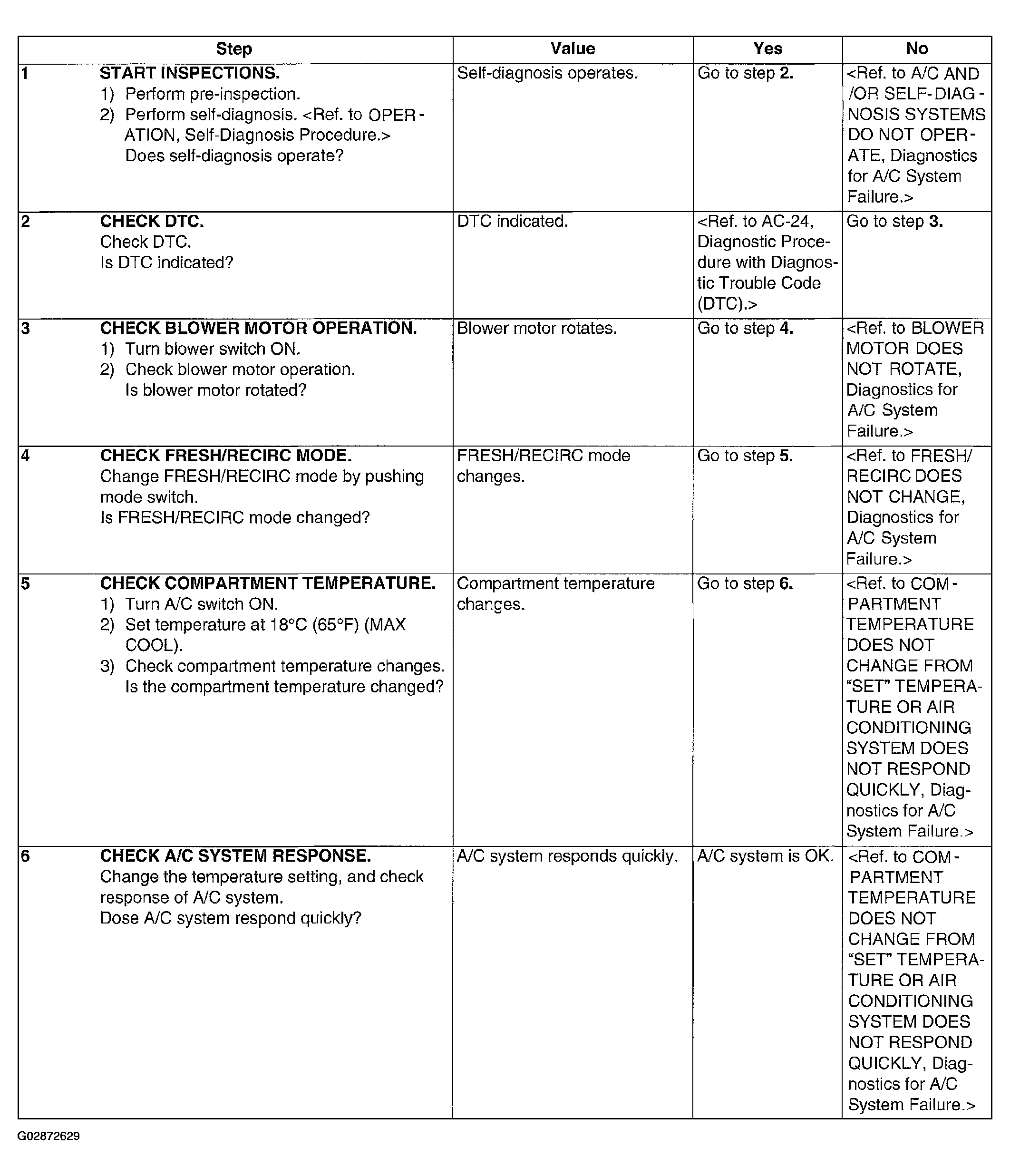

Fig 1: HVAC System (Auto A/C) Diagnostic Procedure Chart

Courtesy of SUBARU OF AMERICA, INC.
