Section 164 (Engine Mechanical (H4SO)): General Description: Specifications

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

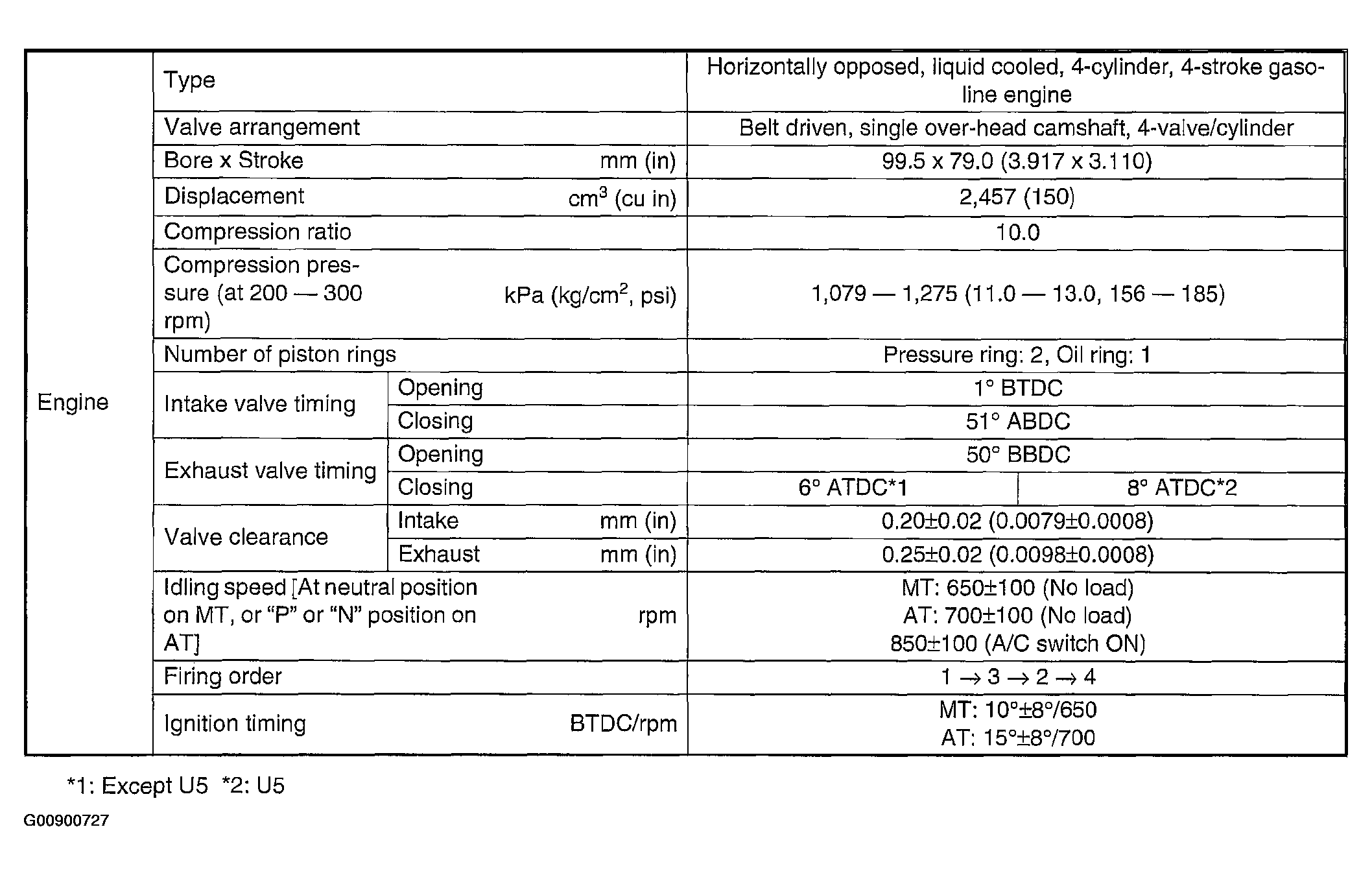

Fig 1: General Description Chart

G00900727

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

STD: Standard I.D.: Inner Diameter O.D.: Outer Diameter US: Undersize OS: Oversize
*1, *2 in tables on the following pages stand for: *1 Except U5, *2 U5 respectively

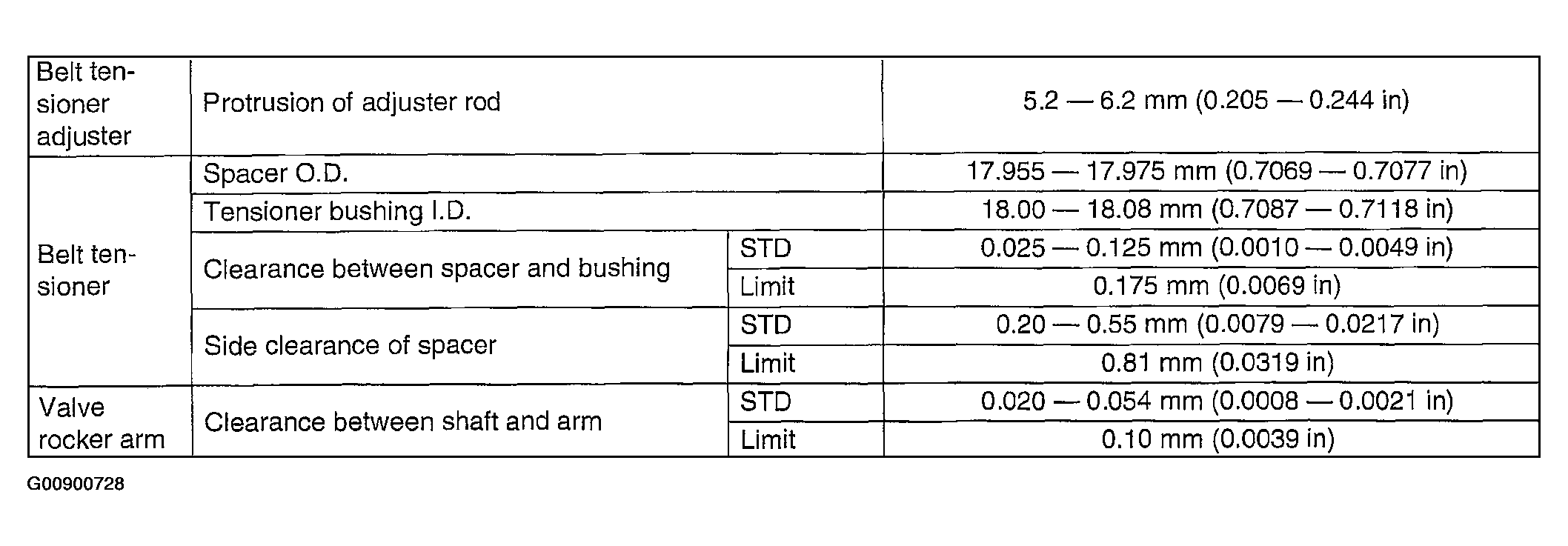

Fig 2: Adjuster Rod Protrusion Specification Chart (1 Of 4)

G00900728

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Adjuster Rod Protrusion Specification Chart (2 Of 4)

G00900729

Courtesy of SUBARU OF AMERICA, INC.

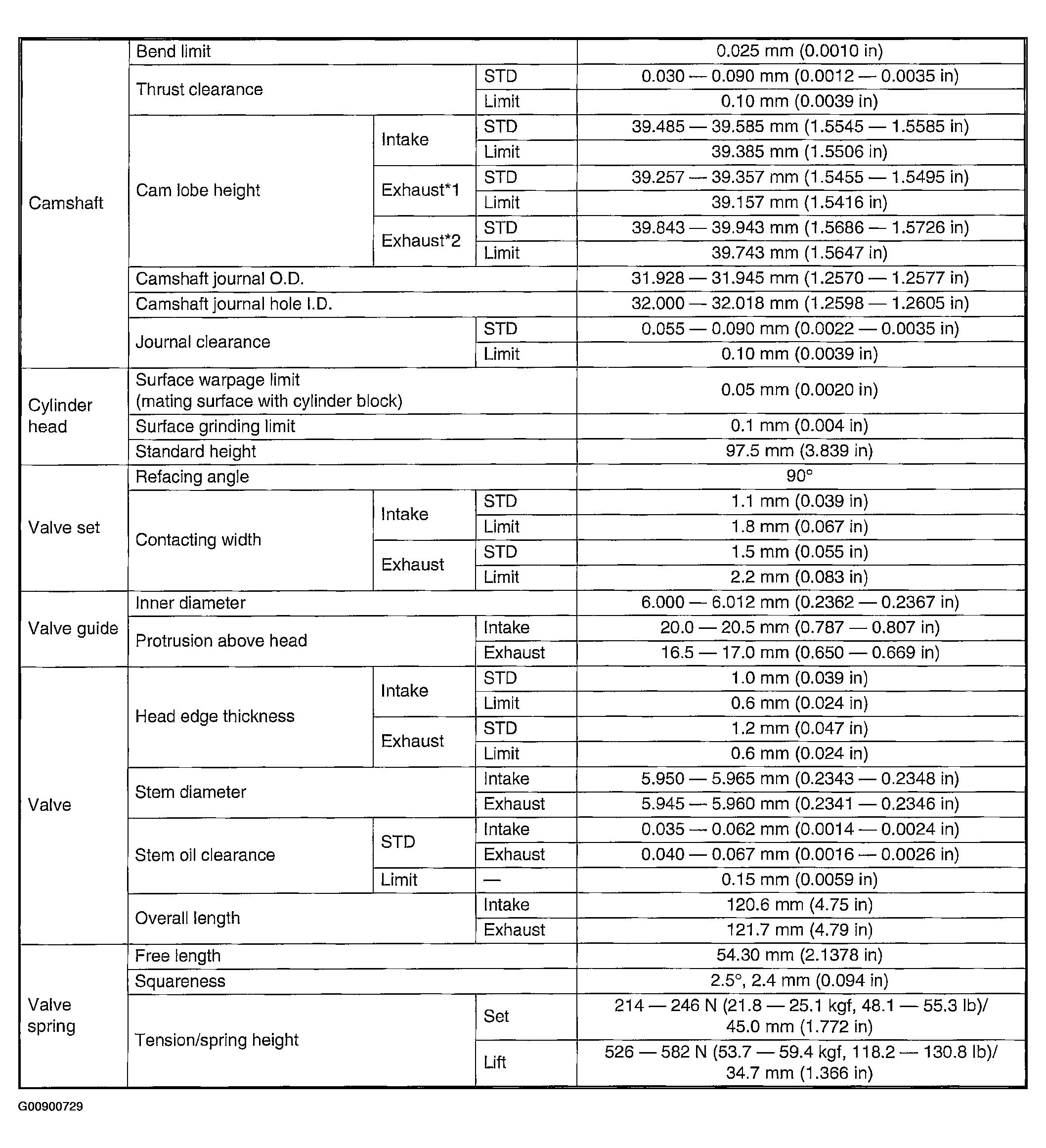

Fig 4: Adjuster Rod Protrusion Specification Chart (3 Of 4)

G00900730

Courtesy of SUBARU OF AMERICA, INC.

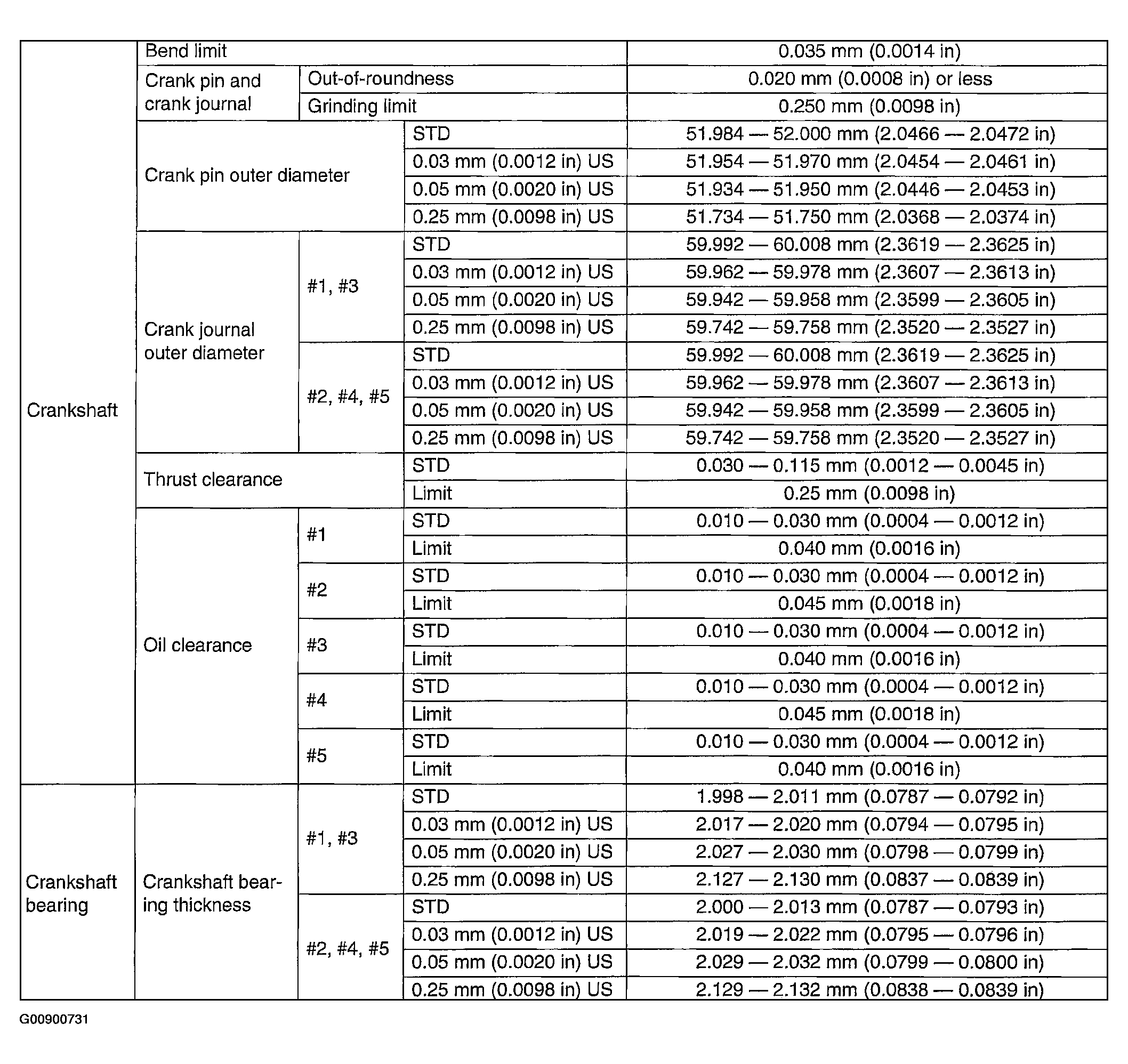

Fig 5: Adjuster Rod Protrusion Specification Chart (4 Of 4)

G00900731

Courtesy of SUBARU OF AMERICA, INC.
