Section 166 (Engine Cooling System (H4SO)): Radiator: Inspection

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Remove radiator cap, top off radiator, and attach tester to radiator in place of cap.

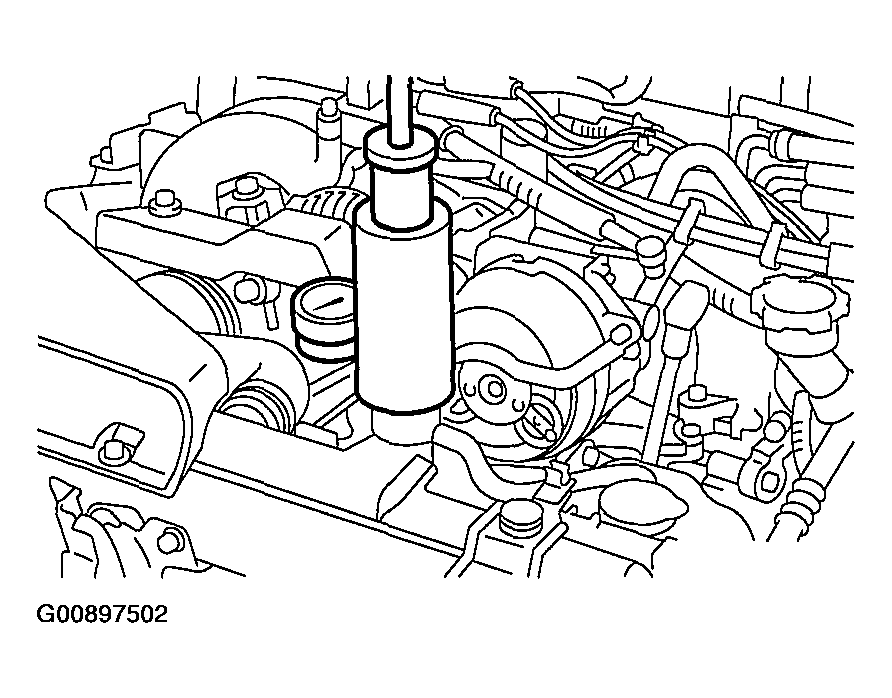

Fig 1: Removing Radiator Cap & Attaching Tester To Radiator In Place Of Cap
Courtesy of SUBARU OF AMERICA, INC.
Apply a pressure of 157 kPa (1.6 kg/cm² , 23 psi) to radiator to check if:
1. Engine coolant leaks at/around radiator.
2. Engine coolant leaks at/around hoses or connections.
CAUTION:
Engine should be off.
Wipe engine coolant from check points in advance.
- Be careful to prevent engine coolant from spurting out when removing tester.
- Be careful not to deform filler neck of radiator when installing or removing tester.
