Code 16

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before proceeding, see AIR BAG SAFETY PRECAUTIONS . After repairs are complete, activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

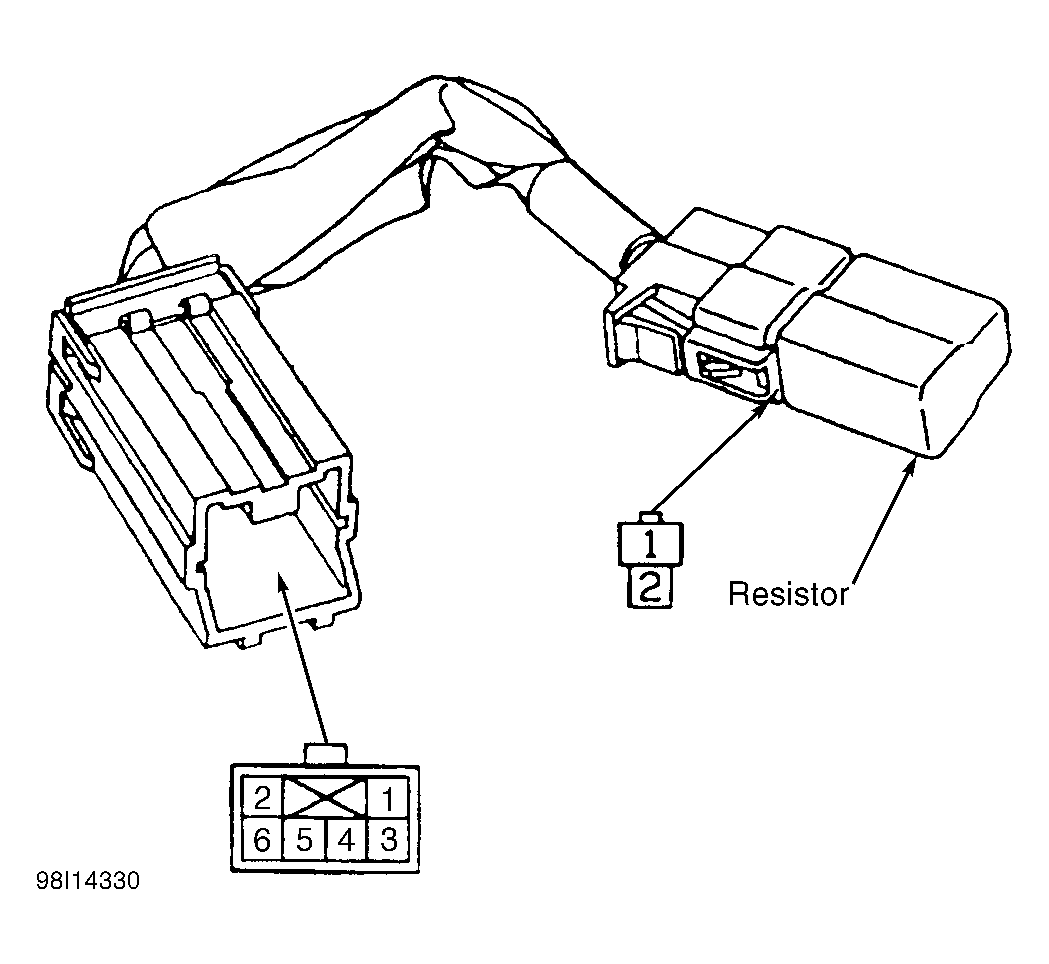

  1. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Remove glove box and disconnect passenger-side air bag module connectors AB9 and AB10. Connect connector AB9 to test harness "F" (98299FC010), connector 1F. See Figure. Connect Air Bag Resistor (98299PA040) to test harness "F", connector 3F. See Figure. Connect negative battery cable. Turn ignition on. If AIR BAG warning light operates properly, replace passenger-side air bag module. See PASSENGER-SIDE AIR BAG MODULE  under REMOVAL & INSTALLATION. In AIR BAG warning light does not operate properly, go to next step.

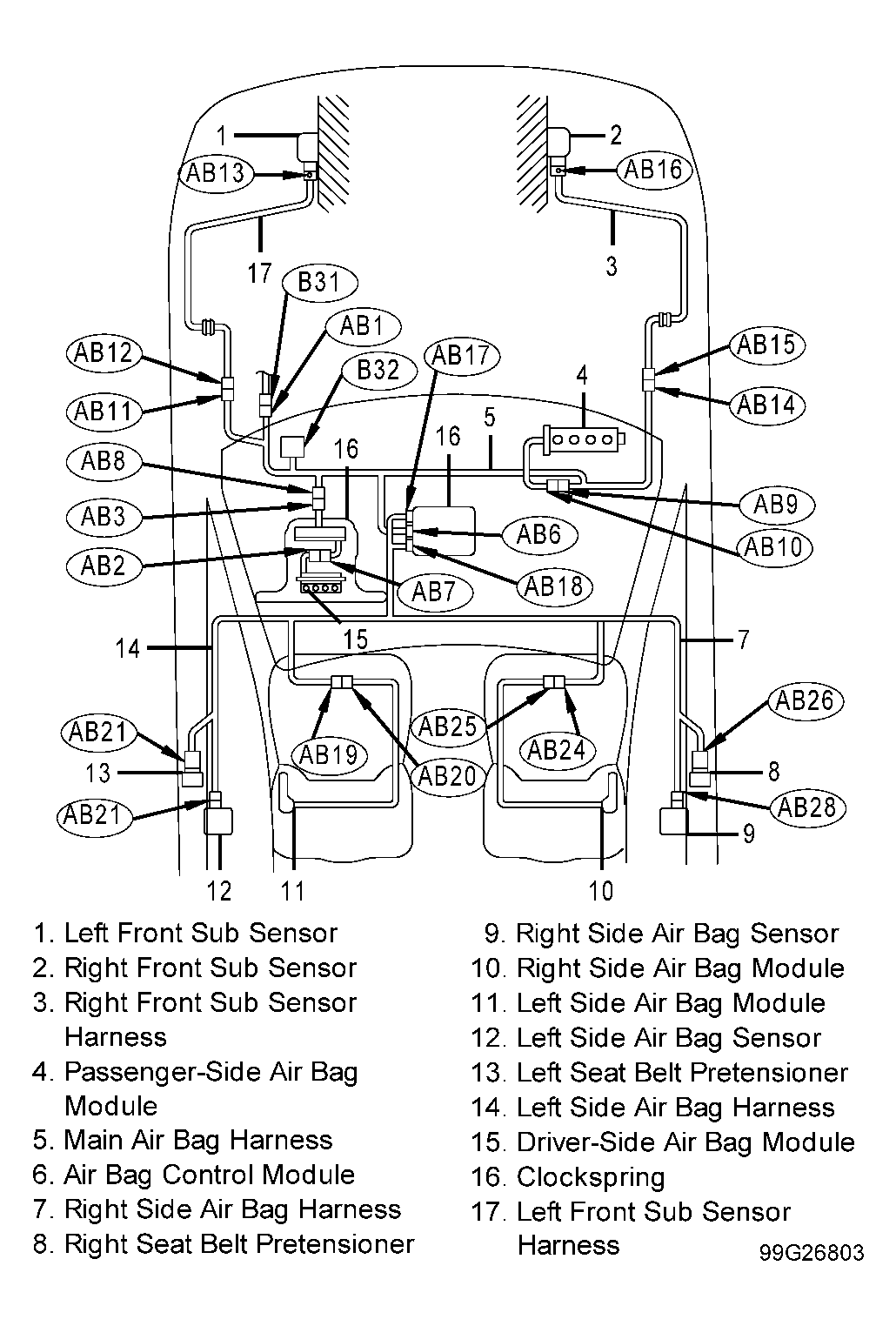

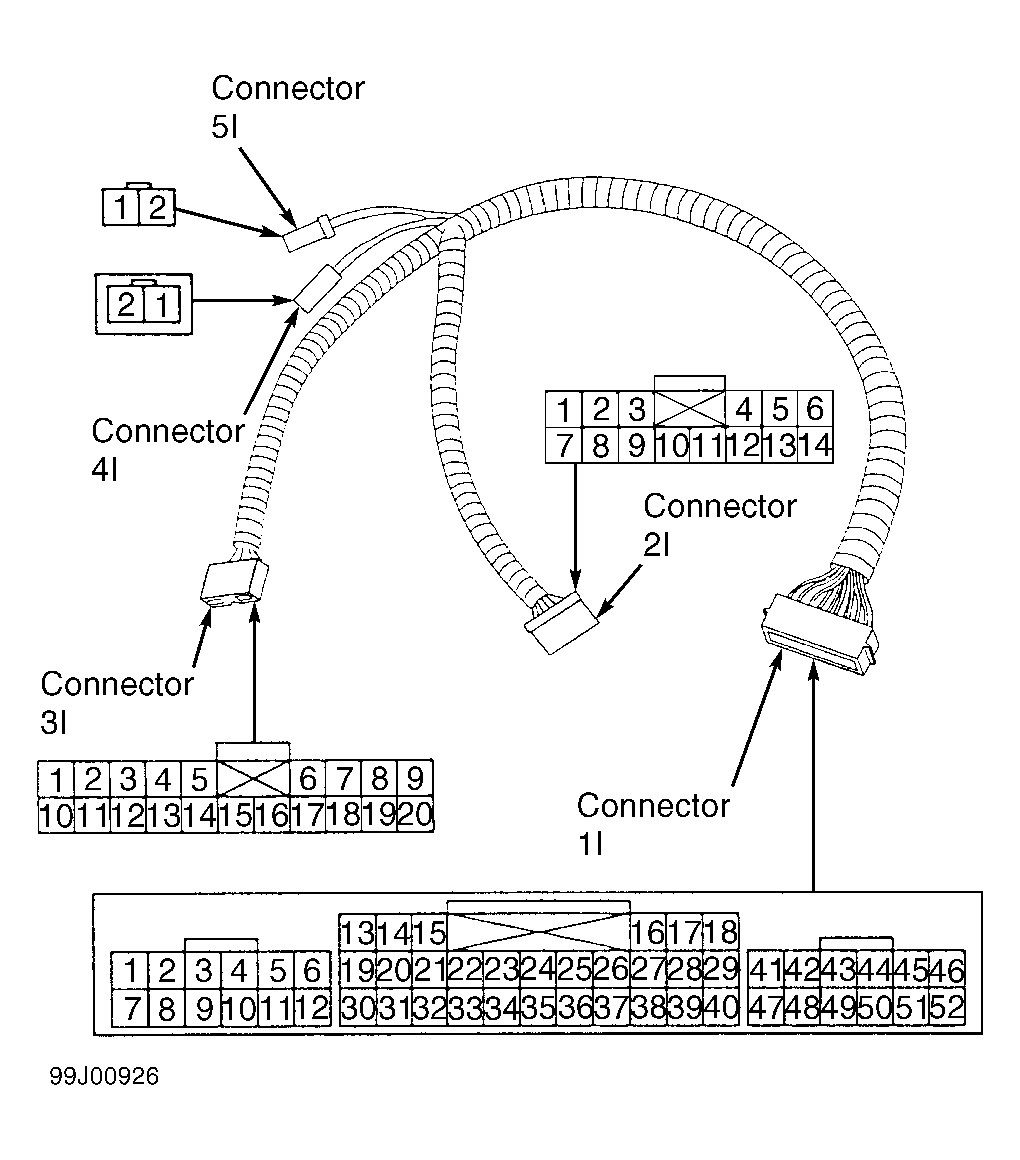

  2. Turn ignition off and disconnect negative battery cable. Wait at least 20 seconds. Disconnect air bag resistor from test harness "F". Remove lower steering column cover, then disconnect lower clockspring connectors AB3 and AB8. See Figure. Disconnect air bag control module connector AB6. See AIR BAG CONTROL MODULE  under REMOVAL & INSTALLATION. Connect connector AB6 to test harness "I" (98299FC040) or I2 (98299FC041), connector 1I. See Figure or Figure . Measure voltage between ground and test harness "I" or I2, connector 2I, terminal No. 2. Measure voltage between ground and test harness "I" or I2, connector 2I, terminal No. 5. If voltage is less than one volt, replace air bag control module. If voltage is more than on volt, replace air bag system main wiring harness.
