Retrieving Codes
WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

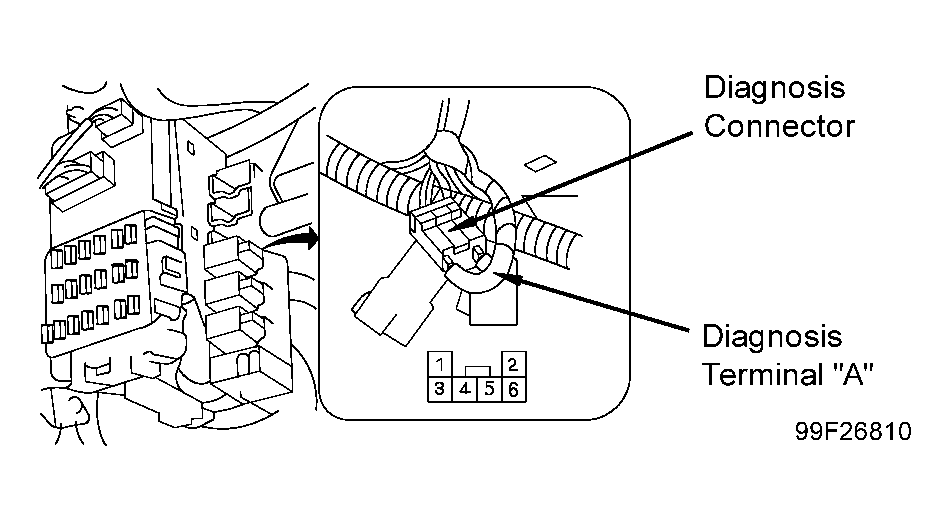

- Turn ignition on, with engine off. Connect diagnosis terminal "A" to diagnosis connector terminal No. 1. Diagnostic connector is located under left side of instrument panel. See Fig 1.
- Read diagnostic codes by noting number of AIR BAG warning light flashes. A long flash (1.2 seconds) indicates a 10 and a short flash (0.3 second) indicates a one. For example, a long flash followed by 2 short flashes would indicate Code 12.
- Code will be displayed 3 times, with a 1.5-second pause between codes. Read and record codes. Turn ignition off, remove diagnosis terminal and perform appropriate diagnostic test. See DIAGNOSTIC TESTS .
