Section 190 (Engine Cooling System (H6DO)): Radiator: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.

Attach radiator mounting cushions to holes on the vehicle.

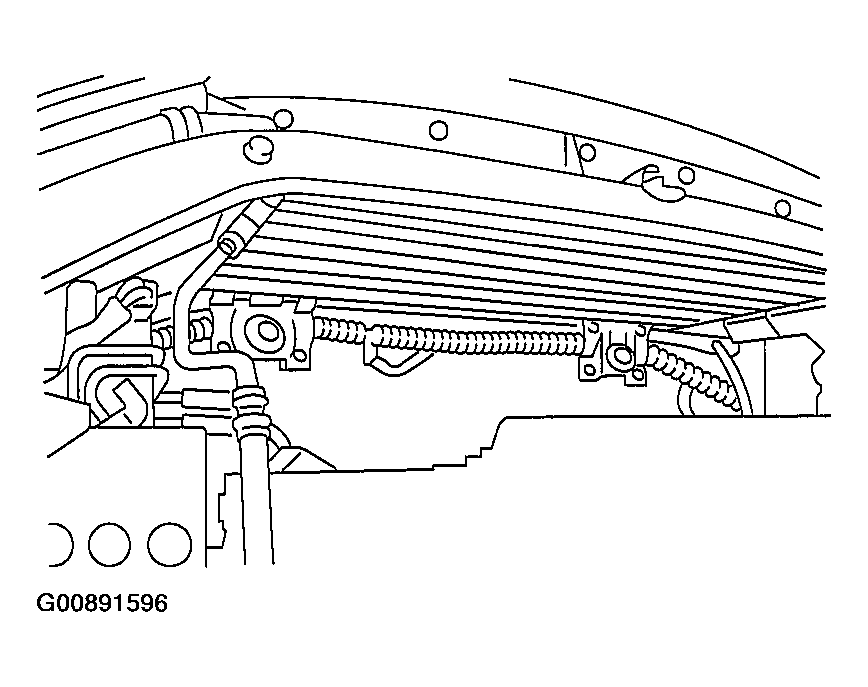

Fig 1: Attaching Radiator Mounting Cushions To Holes On Vehicle
Courtesy of SUBARU OF AMERICA, INC.

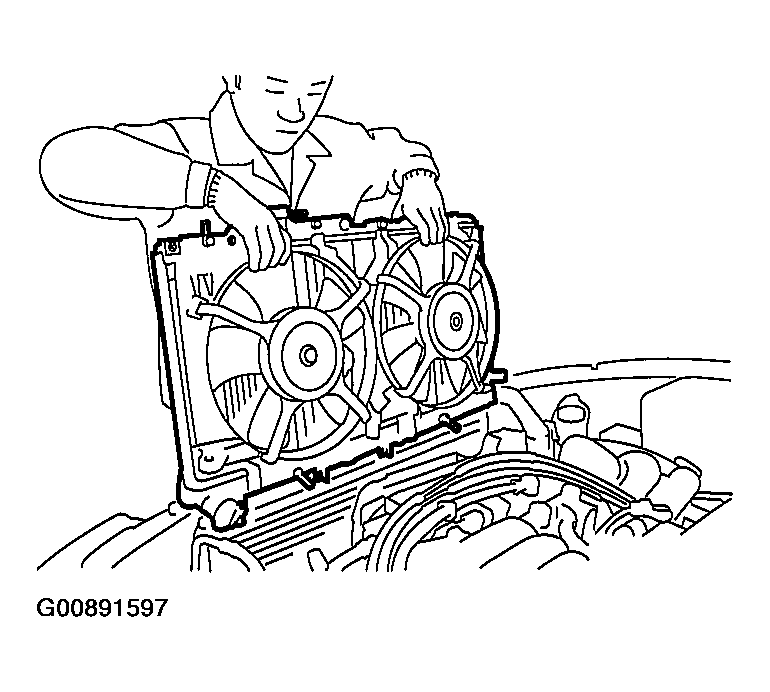

Install radiator while fitting radiator pins to cushions.
NOTE: Fit pins on lower side of radiator into cushions on body side.

Fig 2: Installing Radiator While Fitting Radiator Pins To Cushions
Courtesy of SUBARU OF AMERICA, INC.
Install radiator brackets and tighten bolts.
Tightening torque: 12 N.m (1.2 kgf-m, 8.7 ft-lb)

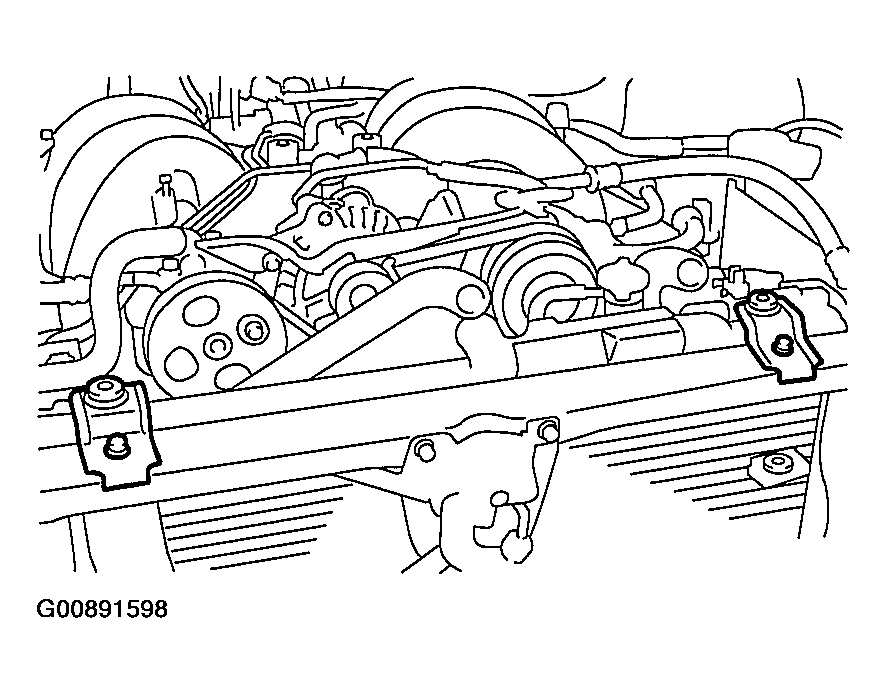

Fig 3: Installing Radiator Brackets & Tighten Bolts
Courtesy of SUBARU OF AMERICA, INC.
Attach power steering hose to the radiator.

Fig 4: Attaching Power Steering Hose To Radiator
Courtesy of SUBARU OF AMERICA, INC.

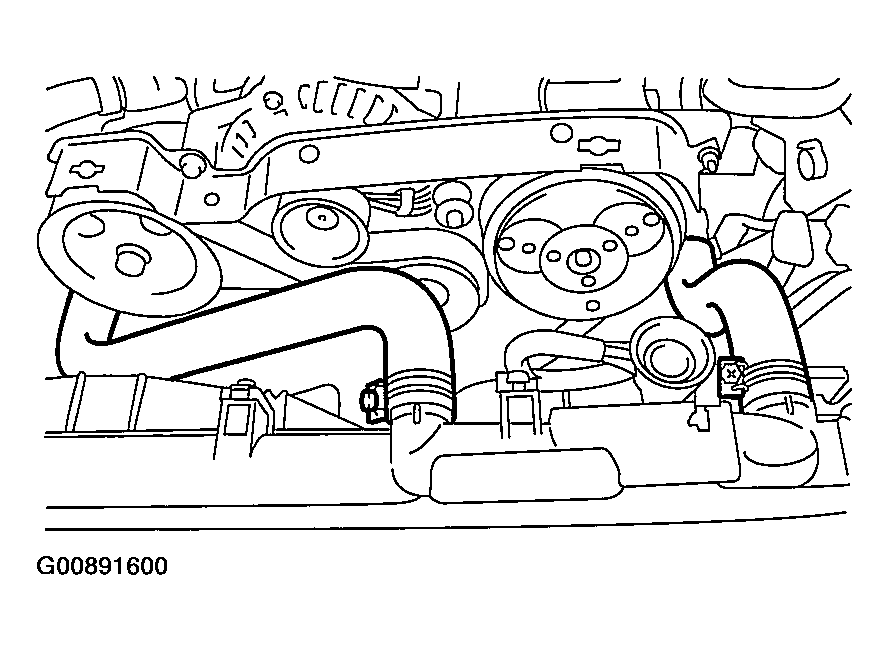

Connect radiator inlet hoses.

Fig 5: Connecting Radiator Inlet Hoses
Courtesy of SUBARU OF AMERICA, INC.

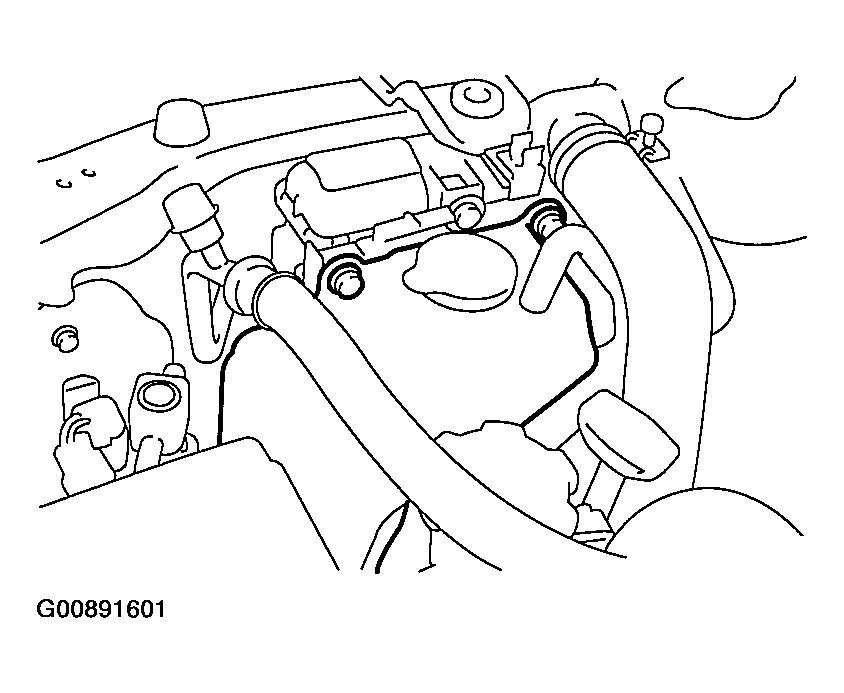

Install reservoir tank.
Tightening torque: 4.9 N.m (0.50 kgf-m, 3.6 ft-lb)

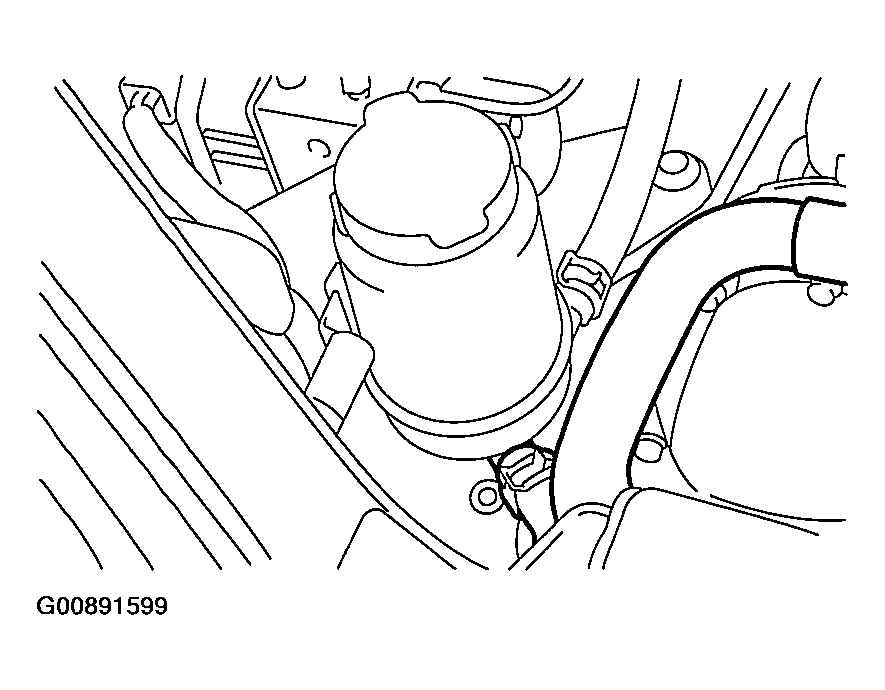

Fig 6: Installing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Install air intake duct.

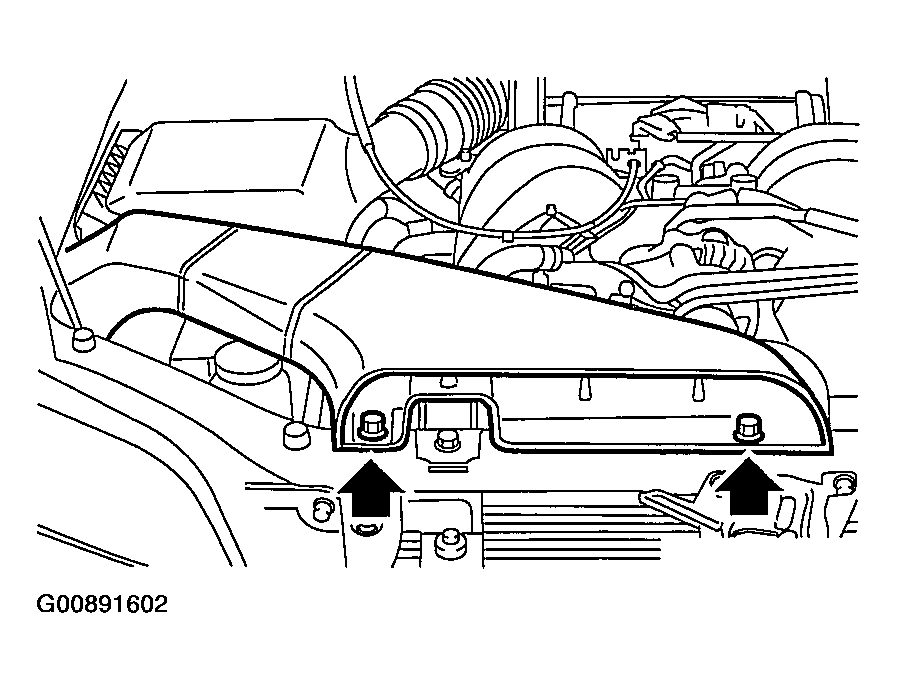

Fig 7: Installing Air Intake Duct
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Connect ATF cooler hoses.

Fig 8: Connecting ATF Cooler Hoses
Courtesy of SUBARU OF AMERICA, INC.

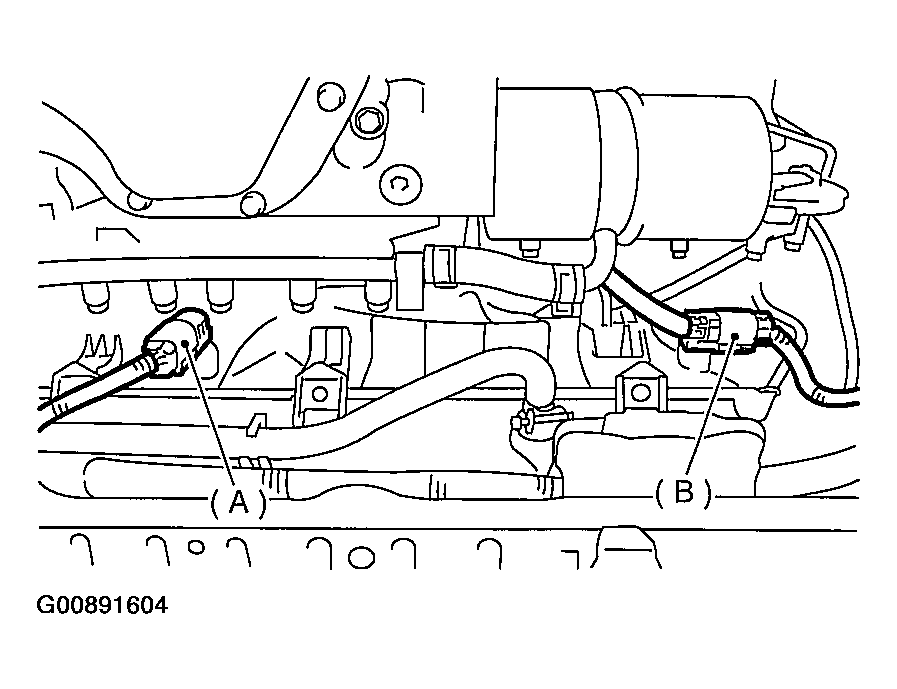

Connect connectors to radiator main fan motor (A) and sub fan motor (B).

Fig 9: Connecting Connectors To Radiator Main Fan Motor & Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Connect radiator outlet hose.

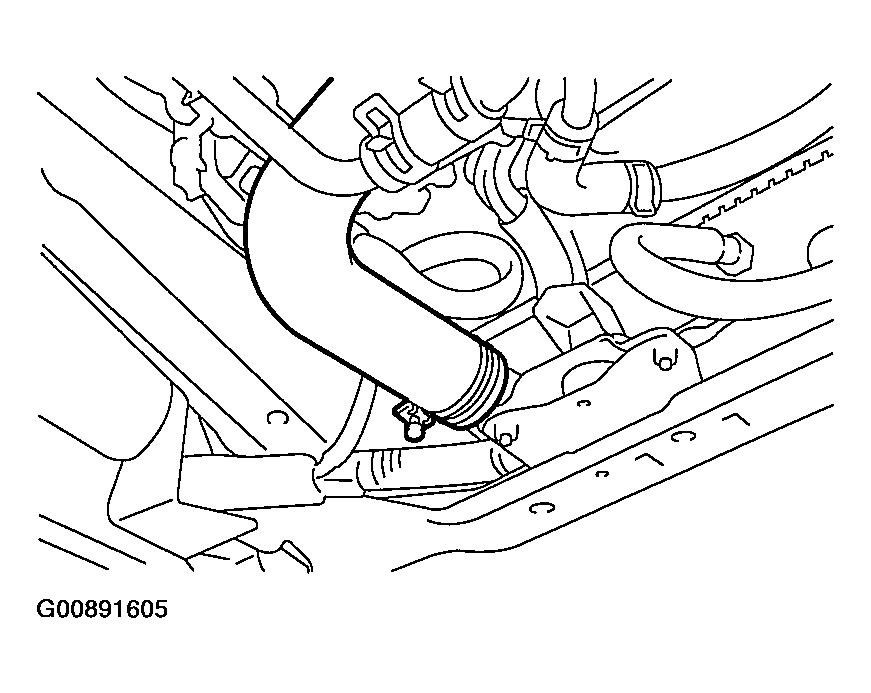

Fig 10: Connecting Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install under cover.

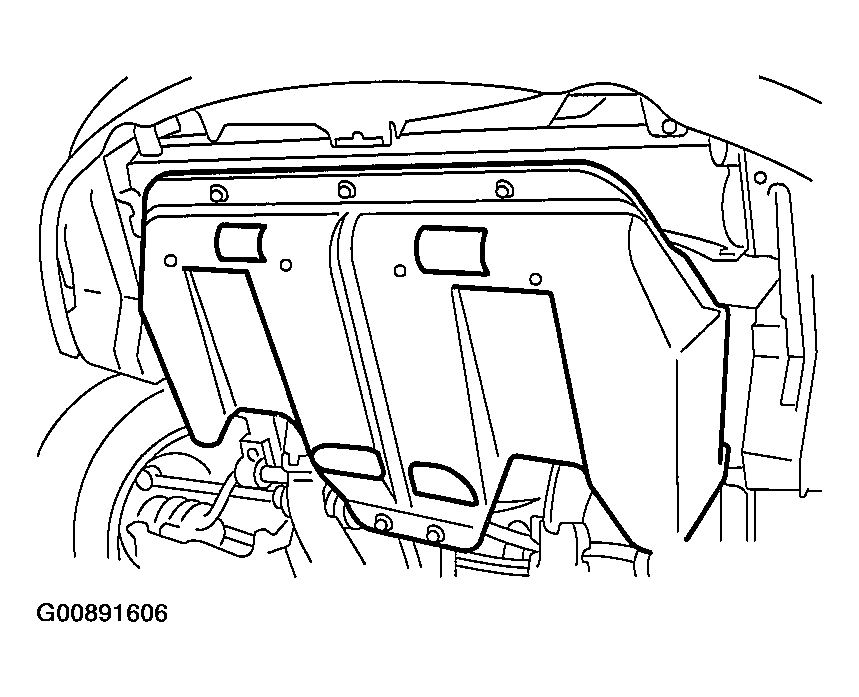

Fig 11: Installing Under Cover
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect battery ground cable.

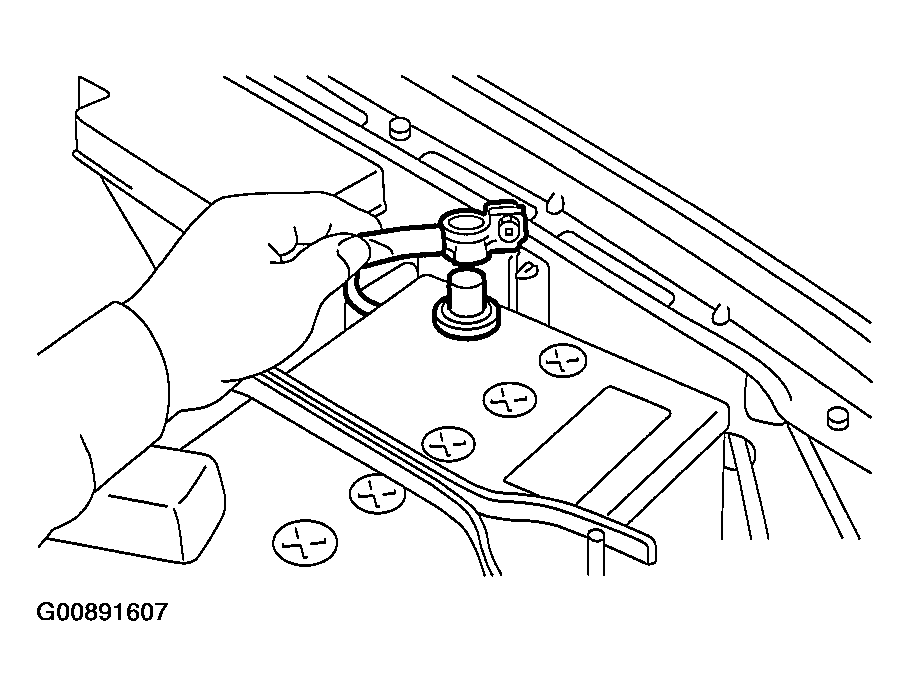

Fig 12: Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Fill coolant. Refer to ENGINE COOLANT .
Check ATF level. Refer to INSPECTION , Automatic Transmission Fluid.
