Section 205 (Engine Cooling System (H4SO)): Radiator: Inspection
WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

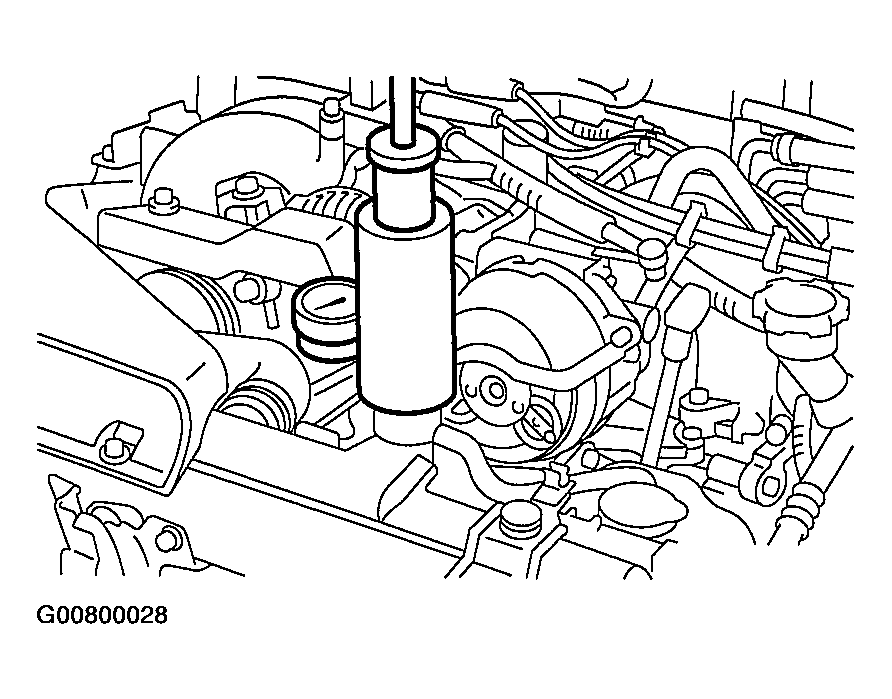

- Remove the radiator cap, top off radiator, and then attach the tester to radiator in place of cap.
- Apply a pressure of 157 kPa (1.6 kg/cm2
, 23 psi) to the radiator to check if:
- Engine coolant leaks at/around radiator.
- Engine coolant leaks at/around hoses or connections.
CAUTION:- Engine should be turned off.
- Wipe engine coolant from check points in advance.
- Be careful to prevent engine coolant from spurting out when removing the tester.
- Be careful also not to deform the filler neck of radiator when installing or removing tester.
