Section 205 (Engine Cooling System (H4SO)): Radiator: Installation

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

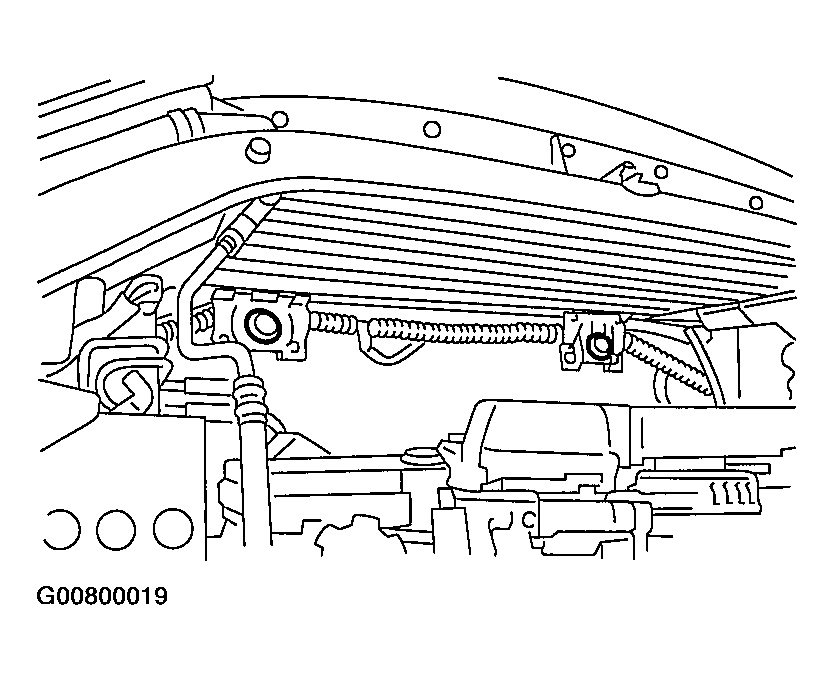

Attach the radiator lower cushions to holes on the radiator lower brackets.

Fig 1: Attaching Radiator Lower Cushions To Holes On Radiator Lower Support Brackets
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to vehicle.
NOTE: Fit the pins on lower side of radiator into the cushions on the body side.

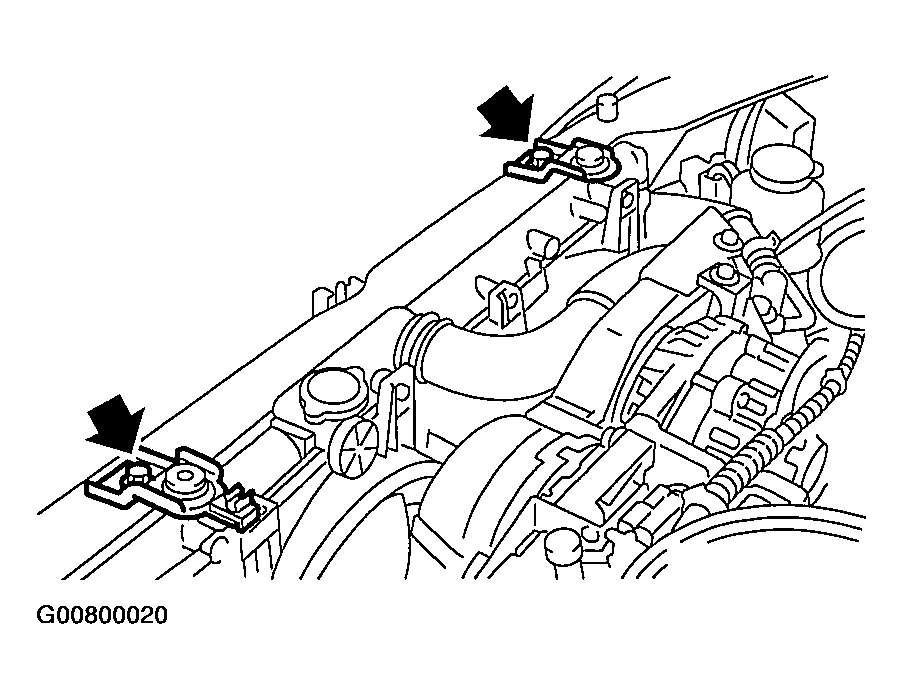

Install the radiator upper brackets, and then tighten the bolts.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

Fig 2: Installing Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
Attach the power steering hose to radiator.

Fig 3: Attaching Power Steering Hose To Clip On Radiator
Courtesy of SUBARU OF AMERICA, INC.

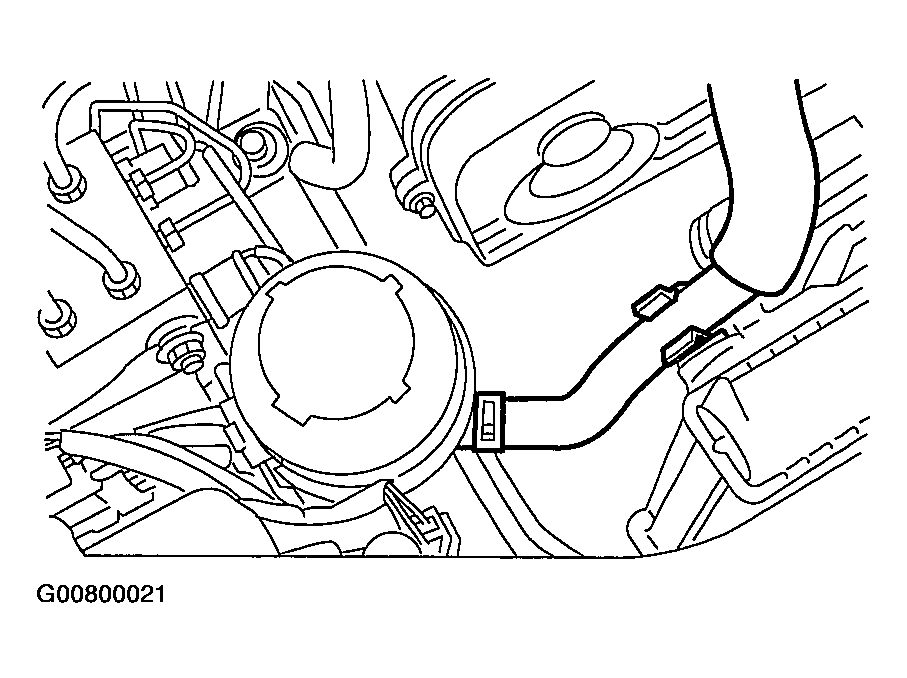

Connect the radiator inlet hose.

Fig 4: Connecting Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct.
Install the reservoir tank.
Connect the overflow hose.
Lift-up the vehicle.
Connect the ATF cooler hoses. (AT model)

Fig 5: Connecting ATF Cooler Hoses
Courtesy of SUBARU OF AMERICA, INC.

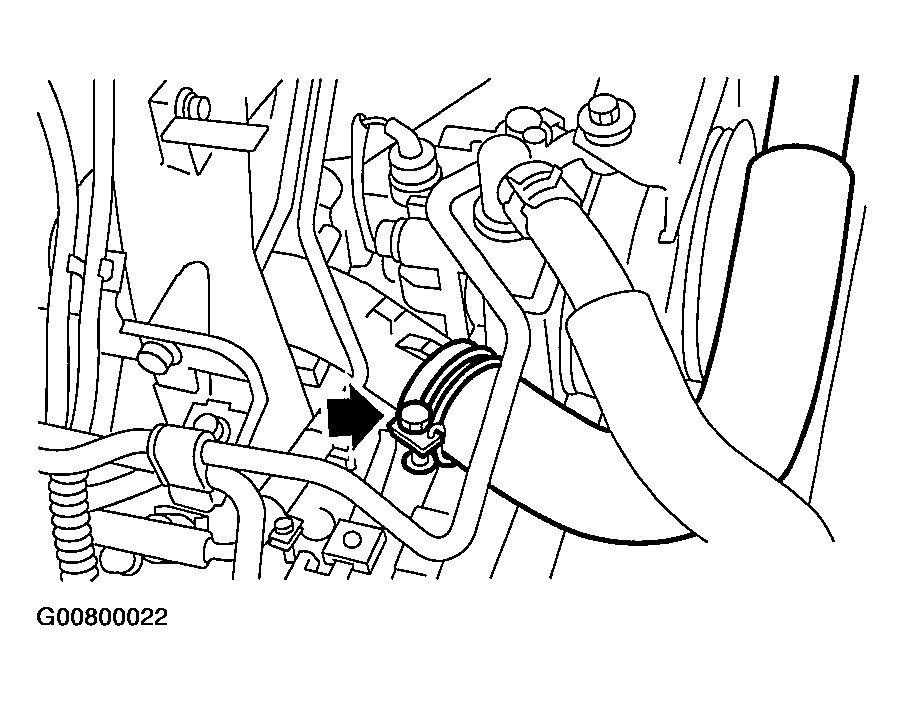

Connect the radiator outlet hose.

Fig 6: Connecting Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.

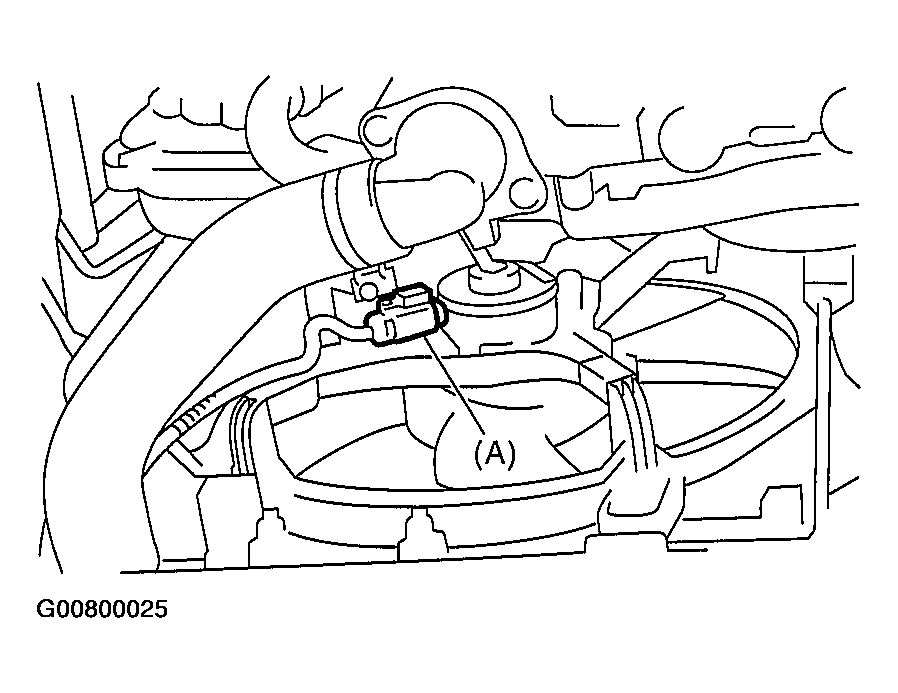

Connect the connectors to radiator main fan motor (A) and sub fan motor (B).

Fig 7: Connecting Connectors To Radiator Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.

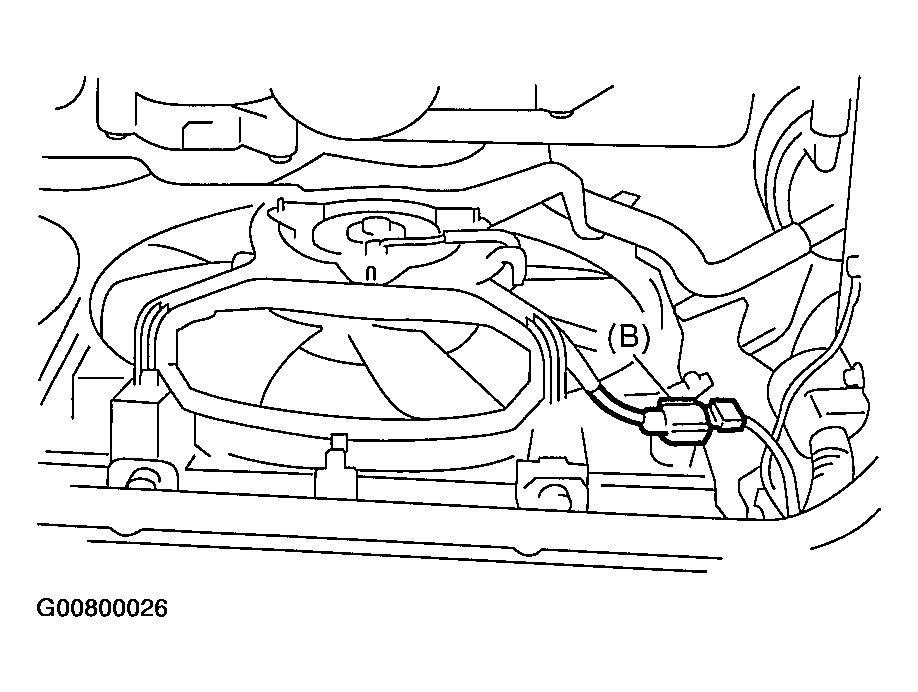

Fig 8: Connecting Sub Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Lower the vehicle.

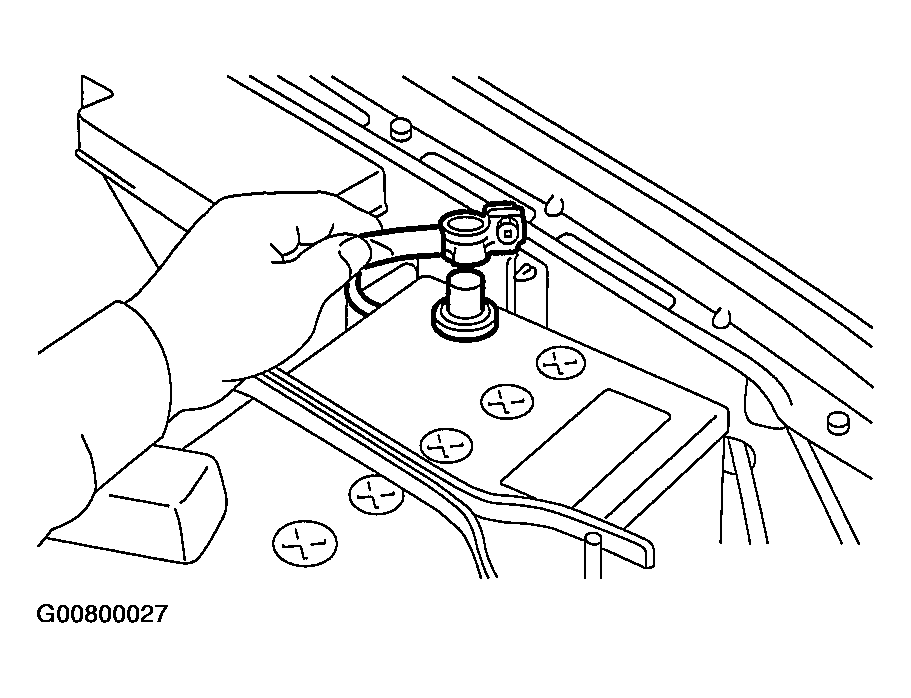

Connect the battery ground cable to battery.

Fig 9: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT . >
Check the ATF level. < Ref. to INSPECTION , Automatic Transmission Fluid. >
