Component Locations

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Compartment Sensor Location (1 Of 2)

G00242241

Courtesy of SUBARU OF AMERICA, INC.

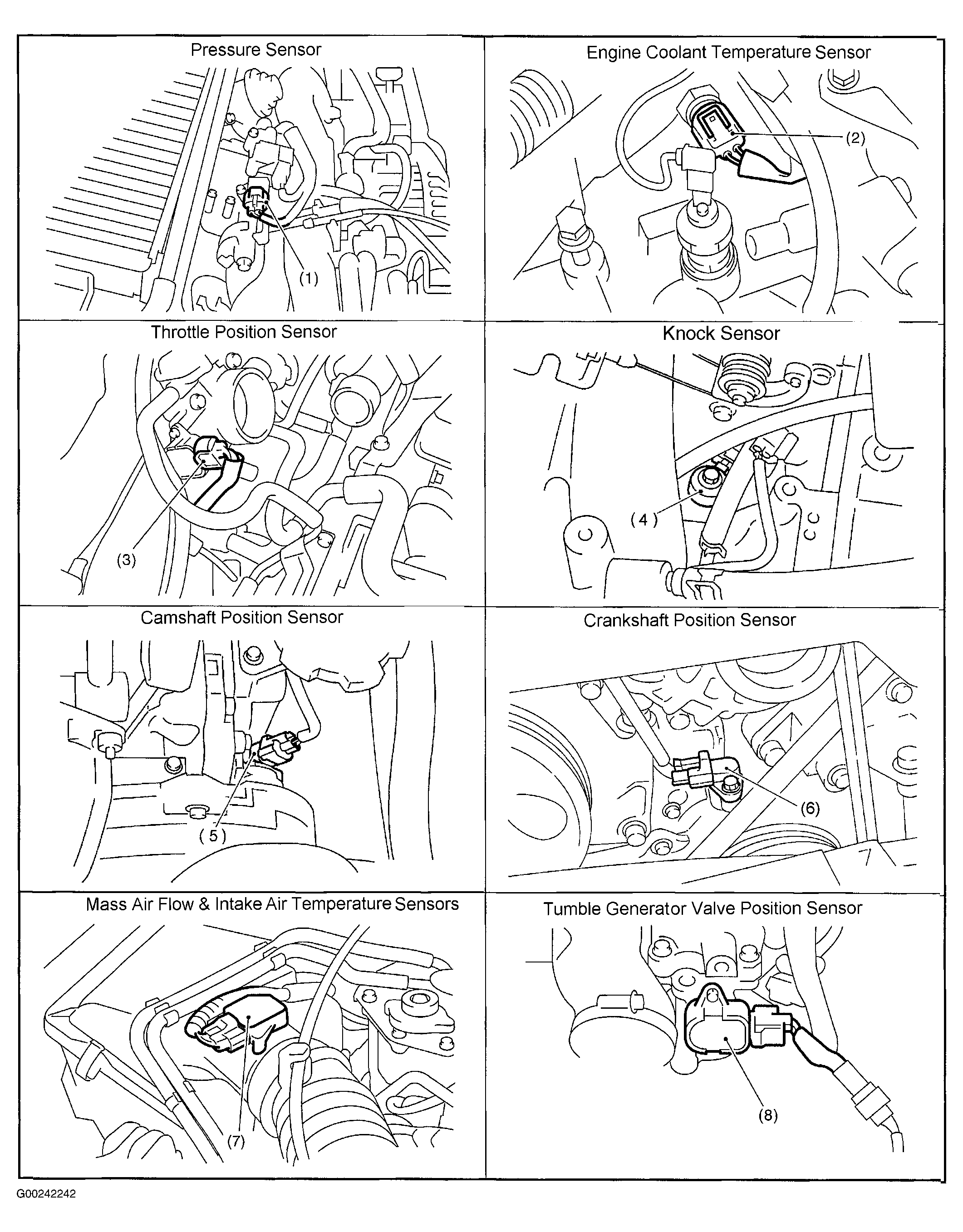

Fig 2: Engine Compartment Sensor Location (2 Of 2)

G00242242

Courtesy of SUBARU OF AMERICA, INC.

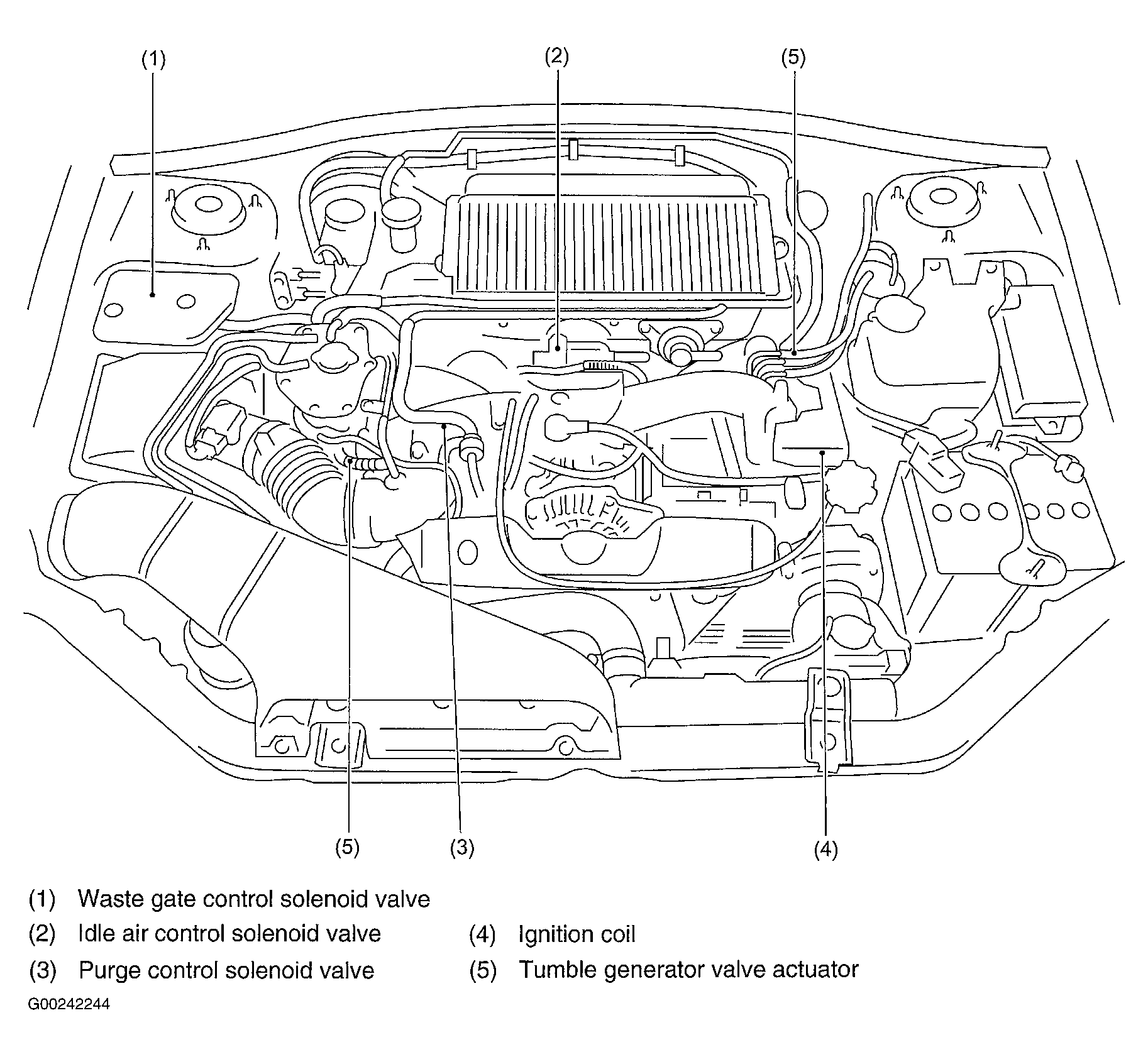

Fig 3: Engine Compartment Solenoid Valves, Actuators & Coils Location (1 Of 2)

G00242244

Courtesy of SUBARU OF AMERICA, INC.

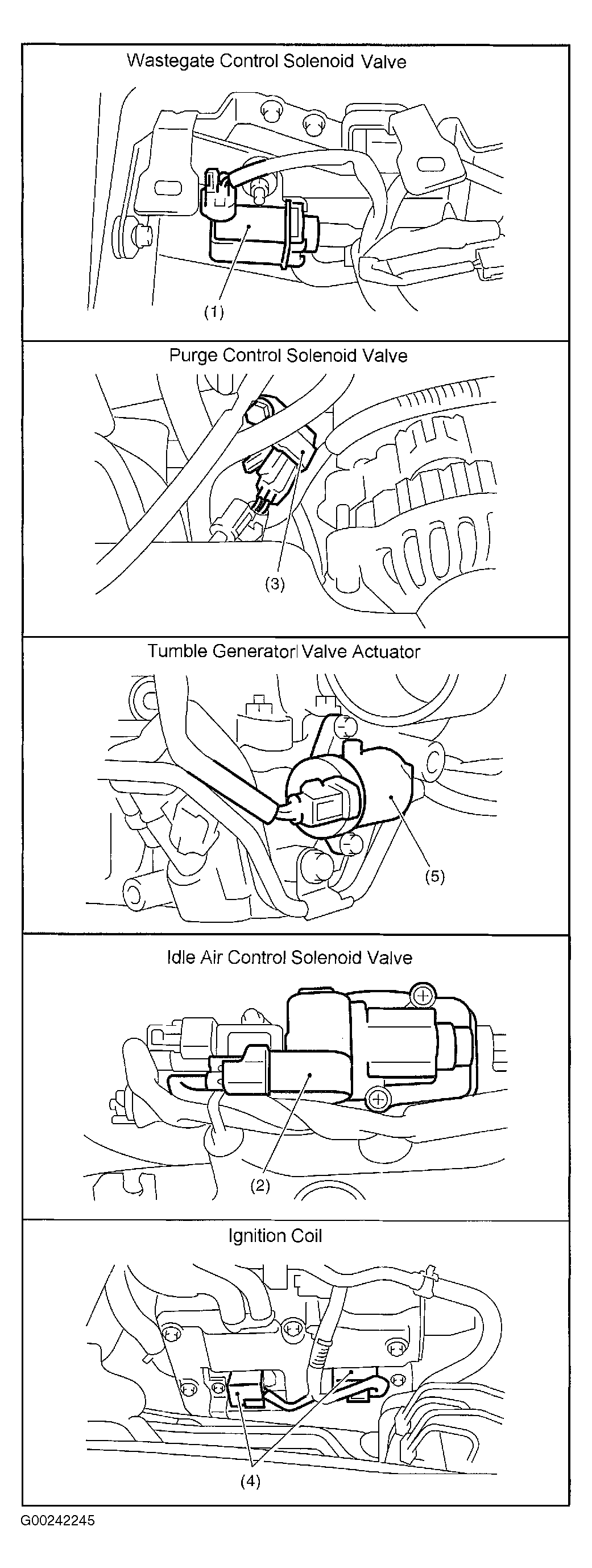

Fig 4: Engine Compartment Solenoid Valves, Actuators & Coils Location (2 Of 2)

G00242245

Courtesy of SUBARU OF AMERICA, INC.

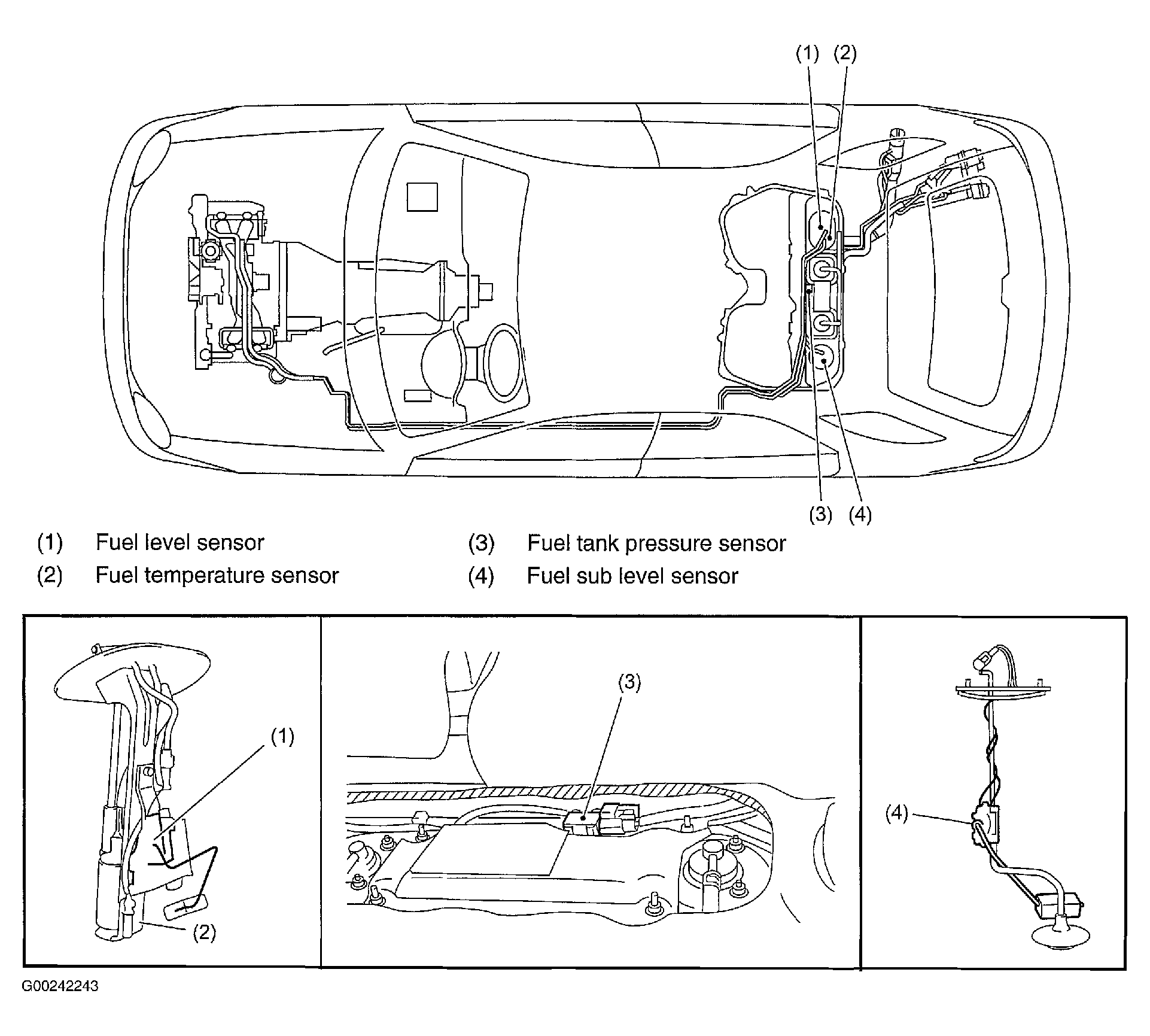

Fig 5: Fuel System Sensor Location

G00242243

Courtesy of SUBARU OF AMERICA, INC.

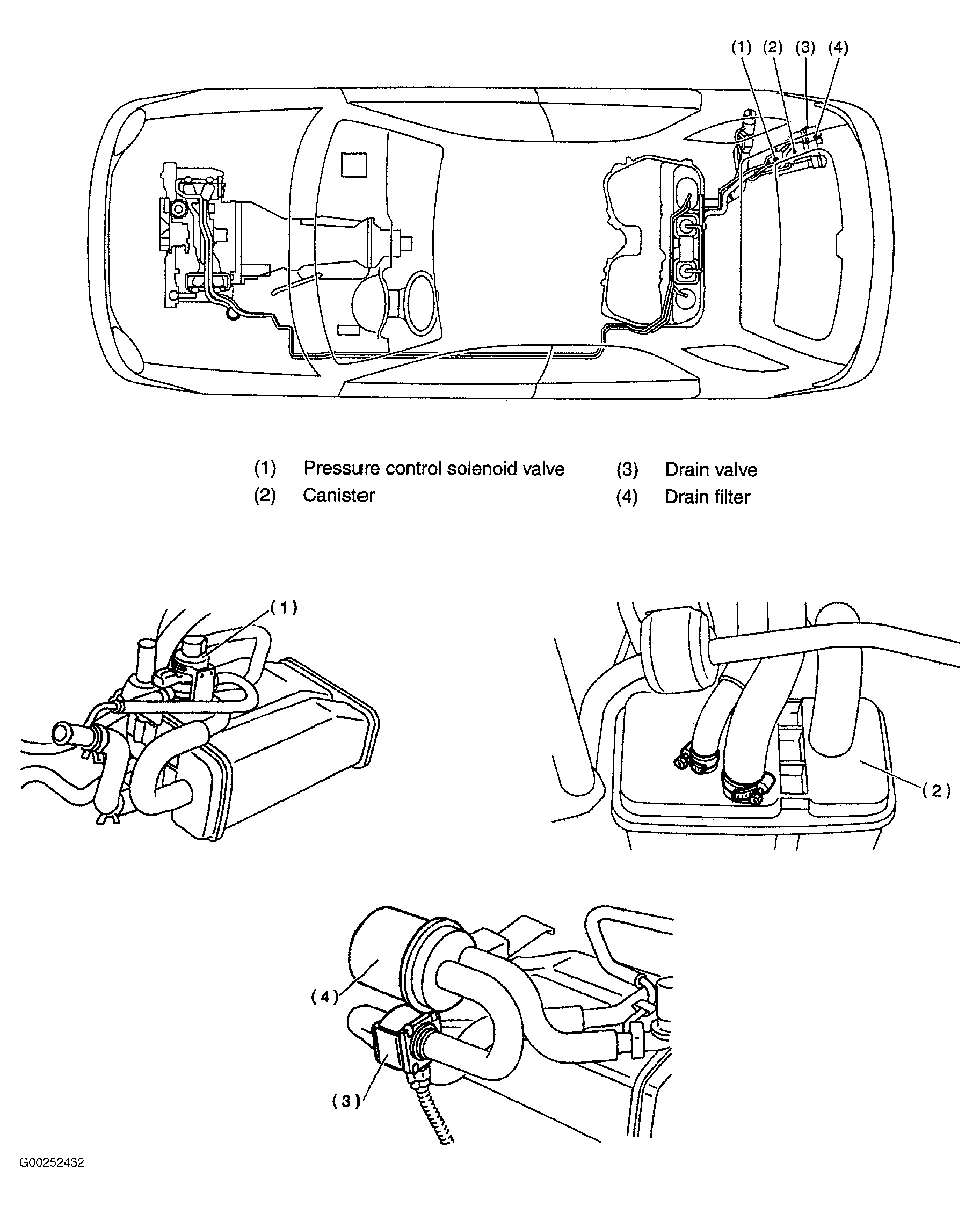

Fig 6: Fuel System Solenoids, Valves & Filters Location

G00252432

Courtesy of SUBARU OF AMERICA, INC.

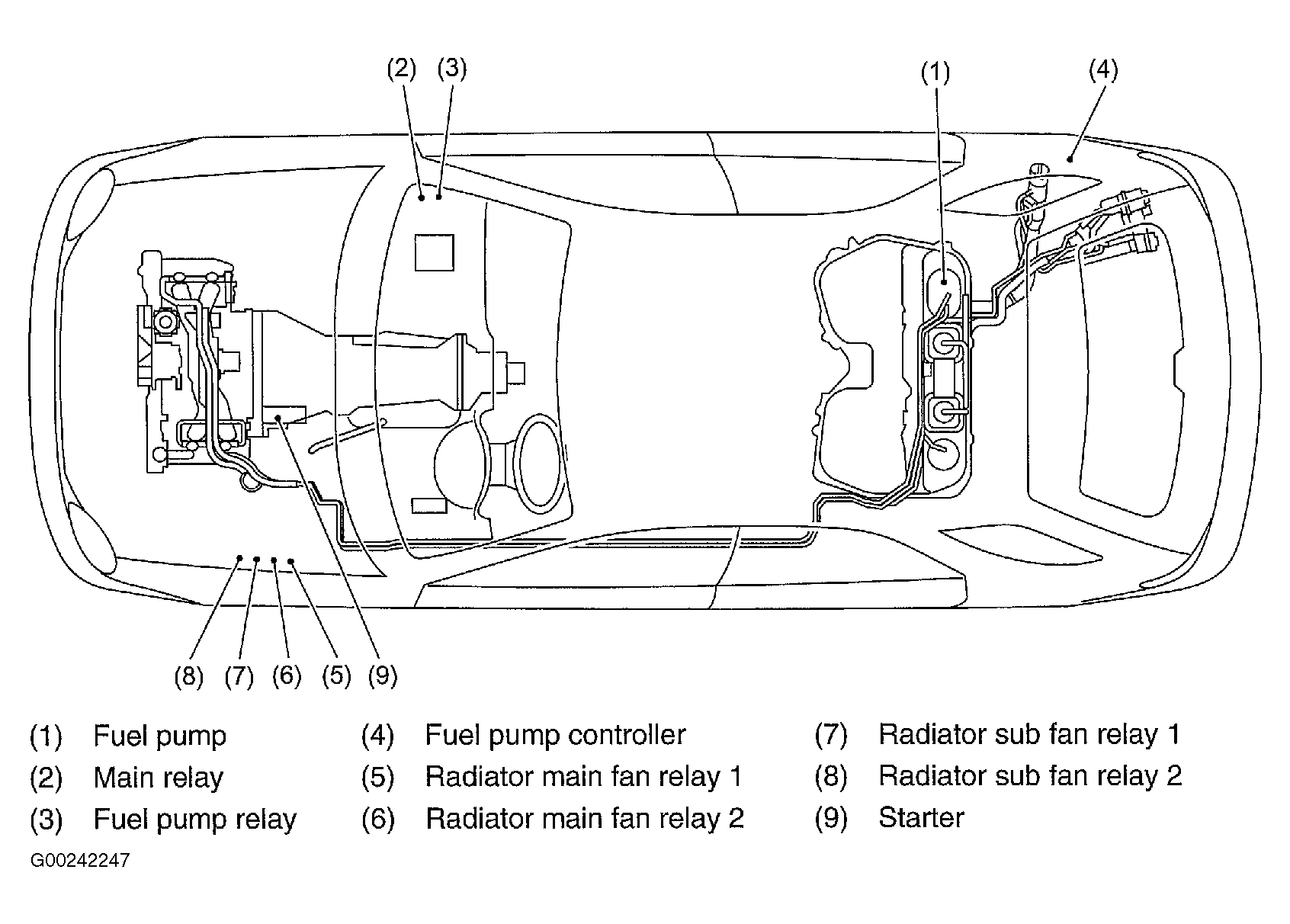

Fig 7: Starter, Relays & Fuel Pump Controller Location (1 Of 2)

G00242247

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Starter, Relays & Fuel Pump Controller Location (2 Of 2)

G00242248

Courtesy of SUBARU OF AMERICA, INC.
