Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis, see Fig 1 and Fig 2 .

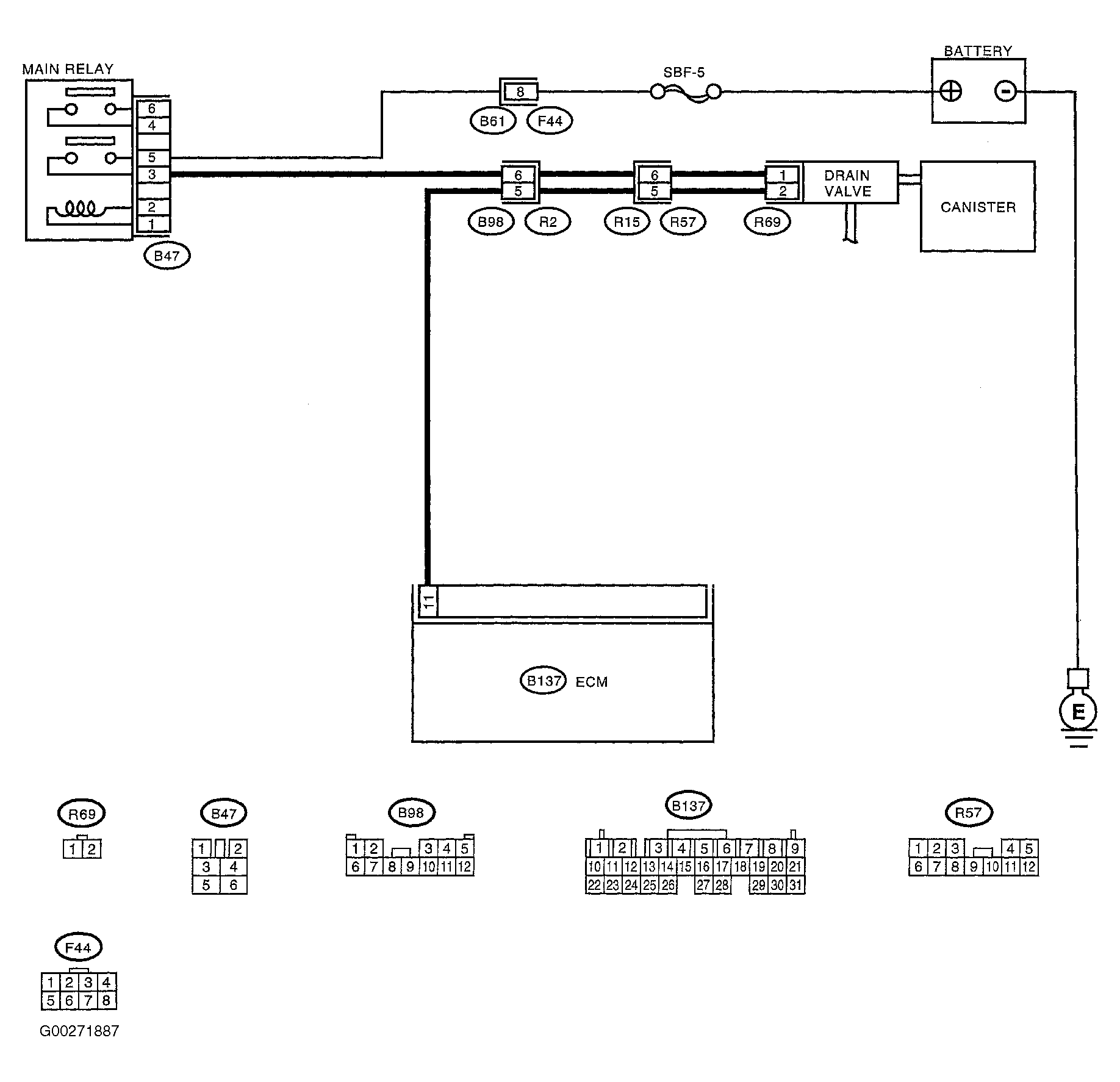

Fig 1: Vent Control Circuit Identification

Courtesy of SUBARU OF AMERICA, INC.

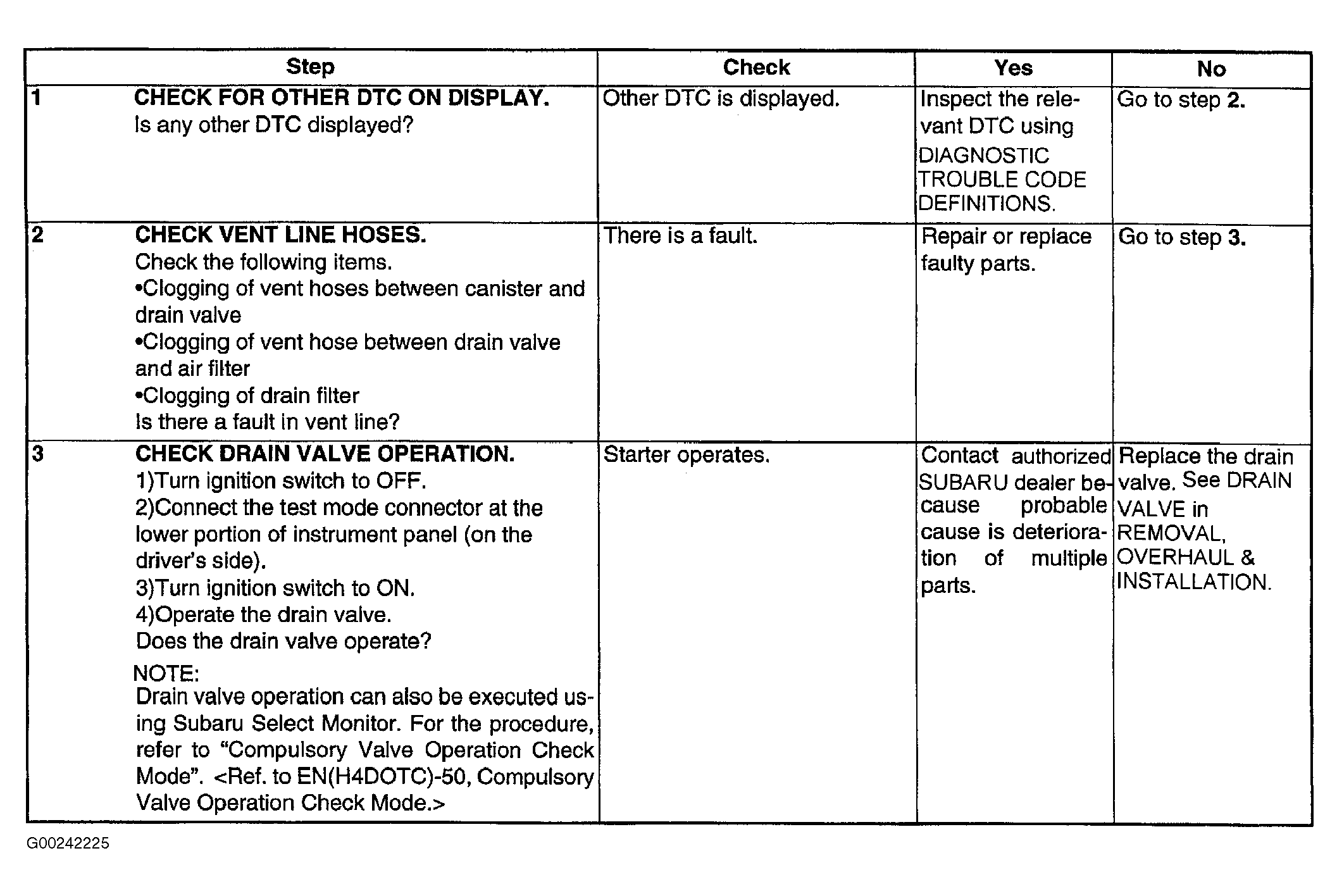

Fig 2: DTC P1443 Diagnostic Procedure

Courtesy of SUBARU OF AMERICA, INC.
